Easy Operation Semi-Auto Soldering Station Automatic Soldering Robot With Different Sizes Of Soldering Iron Tips

Easy Operation Semi-Auto Soldering Station Automatic Soldering Robot With Different Sizes Of Soldering Iron Tips

Semi-Auto Soldering Station is a device used for electronic welding, which provides a semi-automatic welding solution.

Definition and function:
The semi-automatic desktop welding robot is a miniaturized welding automation equipment.
It can automatically complete the key steps of material picking, positioning, welding, etc. in the PCB welding process, improving welding efficiency and quality.

Working principle:
The robot consists of a material picking arm, a welding head, a manipulator and other components, equipped with control software and a human-computer interaction interface.
The sensor detects the position of the PCB board, automatically and accurately locates and performs solder joint welding.
After welding is completed, the robot will automatically move to the next solder joint position for the next step of welding.

Main features:
Semi-automation: Combining manual operation and automation to reduce manual labor intensity.
Miniaturization: Suitable for desktop use, small footprint, convenient for use in laboratories or small factories.
High precision: The welding positioning accuracy can reach ±0.1mm, and the welding quality is stable.
Simple operation: The human-machine interface is friendly and easy for operators to master.
Low cost: Compared with fully automatic equipment, the price is more economical.

Application scenarios:
Small batch PCB welding: Suitable for small-scale production scenarios such as electronic product prototyping and maintenance.
Laboratory research and development: Used for welding verification and testing during new product development.
Teaching and training: Can be used for welding skills training practice for students majoring in electronics

Technical details



Product Name	Semi-auto soldering station
Model No.	HS-668
Power supply	Single phase, 220V 50/60Hz
Air pressure	0.2-0.6MPa(Use clean dry air)
Control mode	PLC+touch screen
Temperature	(-10)-(+60℃)No wind, no dust
Soldering control switch	Pedal switch
Machine size	L410*W350*H500MM
Weight	15 KG



Maintenance



1. The waste produced by the machine in the course of work should be cleaned up in time to avoid

obstruction and cause the machine to run badly.

2. After each shift, first clean the environment, so that the ground dust-free, clean. Clean the

equipment again, including welding platform surface, moving shaft, welding head, etc. No

3. The sliding part of the machine is lubricated once a week to ensure smooth sliding.

4. Machine parts secured.

5. The fixture and fixture holder are cleaned every 4 hours.

6. The soldering tip is maintained every 2 hours. Observe the loss, service life about 20000-35000

points, timely notify the production line technician to replace the soldering tip.At present, all

sold soldering tips may be oxidized or perforated due to tin wire damage is more common.

Please replace the tin wire in time if you can not change the tin material and can not reach the

above service life. Please understand above.



Product Details

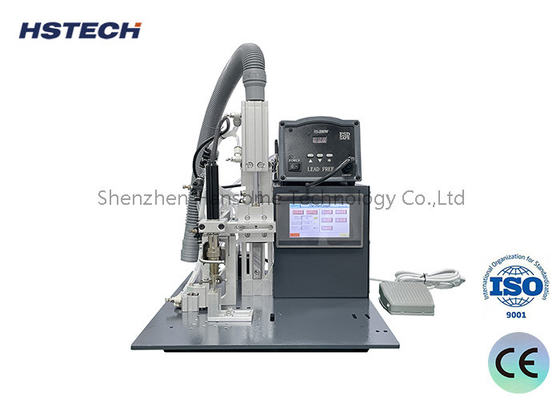

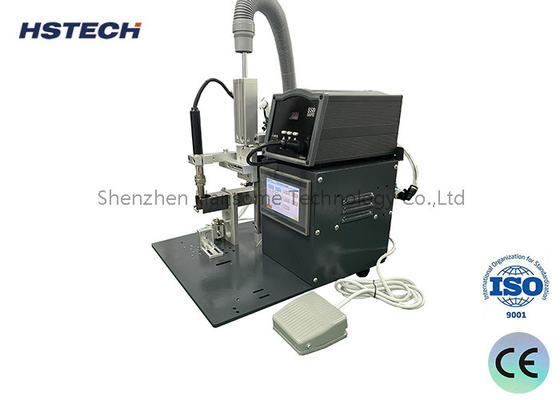

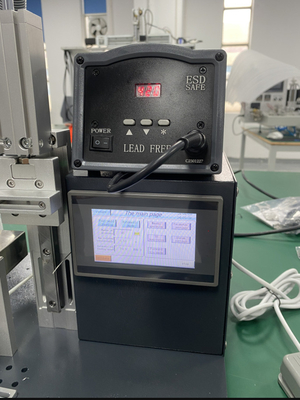

PLC touch-screen all-in-one machine

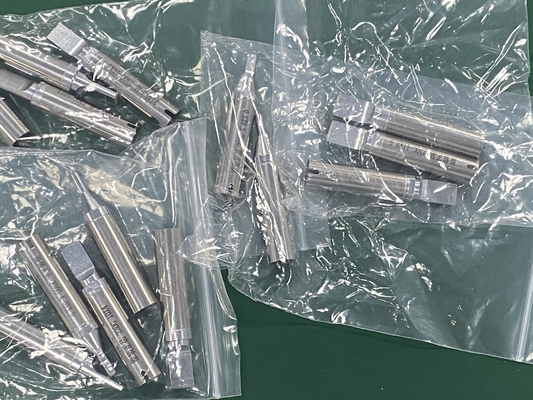

Soldering tips of different sizes can be configured

Packing & Delivery

Item	Desktop Soldering Machine
Package	1 set into one wooden carton as safety condition
External Dimension	410*350*500mm
Weight	about 15kgs
Delivery	about 15-20 working days
Payment	D/P, T/T, Western Union, MoneyGram
Port	Shenzhen
Shipment	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
