Touch Screen Control PLC LED Bulb Machine with SMEMA Signal for Consistent Production

Product Description:

The LED bulb glue dispensing machine is equipped with a relay brand Schneider that ensures the machine is of high quality and can last for long. The Optoelectronic switch used in this machine is OMRON, which is a top-quality switch that ensures the machine operates smoothly and efficiently.

This four-station round glue dispensing machine is specially designed for applying glue to the base of LED bulbs or LED Par lights. The four stations are distributed by 90 degrees on the revolution disc, and the revolution motor rotates 90 degrees each time to bring the work-piece to the gluing nozzle. The auto-rotation motor drives the work-piece rotating at an average speed, enabling the machine to achieve evenly coated glue on the LED bulbs or LED Par lights.

This LED light machine is perfect for those looking to achieve a high-quality bonding solution dispenser that can work efficiently and effectively. The packaging details for this product are not specified, but rest assured that it will arrive in good condition and ready to use.

Key Features:

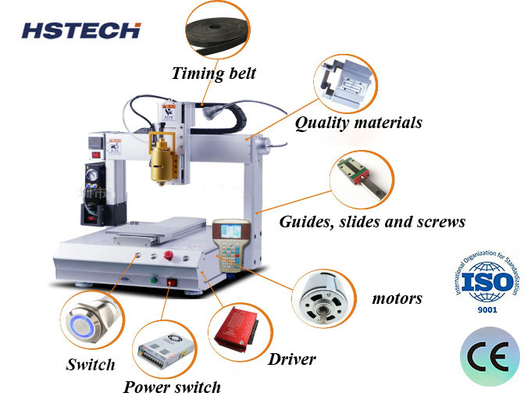

• High Capacity LED Bulb Glue Dispensing Machine with Four Work Stations and Stepping Motor
• Relay Brand: Schneider
• Optoelectronic Switch: OMRON
• Application Details: Apply glue to the base of LED bulbs or LED Par lights to connect with the housing of the lamp
• Four-station round glue dispensing machine that can be used for this application
• Revolution motor rotates 90 degrees each time to bring the work-piece to the gluing nozzle
• Auto-rotation motor drives the work-piece rotating at an average speed to achieve evenly coated glue

Overall, the High Capacity LED Bulb Glue Dispensing Machine with Four Work Stations and Stepping Motor is an excellent bonding agent dispenser for those looking to achieve high-quality bonding solutions. This LED light machine is perfect for applying glue to the base of LED bulbs or LED Par lights and is equipped with top-quality components such as the Optoelectronic switch: OMRON and Relay Brand: Schneider. This product is highly recommended for those looking for an efficient and effective bonding solution dispenser.

Features:

• Product Name: Glue Dispensing Machine
• Specification: Model HS-BD4MCU, Industrial PLC, Programming Text Demonstration Programmer, Drive mode Precise Stepping Motor, Max Dispensing Diameter 160mm(two station),110mm(four station), Motor Speed 0 ~ 300 RPM, Positioning Accuracy ±0.1mm, Z-axis Adjust Range 250mm, Z-axis Working Travel 50mm, Dimension (L*W*H) 420mm*532mm*532mm, Weight 35Kg, Working Power AC220V/50~60Hz/200W, Working Air Pressure 0.4~ 0.6Mpa(no condensation), Working Temperature and Humidity Temperature: 0~40℃,Humidity: 20~90%
• OEM/ODM: Available
• Color: Silver
• Condition: New
• Signal: SMEMA
• Keywords: led bulb machine, led bulb glue, Liquid Adhesive Applicator

Technical Parameters:

Applications:

HSTECH HS-D331AB Glue Dispensing Machine is a versatile sealant coating equipment which is used to apply liquid adhesive to a wide range of materials such as paper, plastic, metal, and glass. The machine is designed to provide consistent and precise glue spreading apparatus for different applications.

With a CE certification, this product is manufactured in China and has a minimum order quantity of one piece. It is available for negotiation in terms of price, and it comes in a new, unused condition. The HSTECH HS-D331AB Glue Dispensing Machine has a high supply ability of 100 pieces per week, which makes it an ideal choice for industrial usage.

The machine has a dimension of 420mm*532mm*532mm and a weight of 35kg, which makes it portable and easy to move around. It has a working power of AC220V/50~60Hz/200W and a working air pressure range of 0.4~ 0.6Mpa (no condensation). The HSTECH HS-D331AB Glue Dispensing Machine has a working temperature of 0~40℃ and a humidity range of 20~90%, which means it can operate efficiently in different environmental conditions.

The HSTECH HS-D331AB Glue Dispensing Machine has a maximum dispensing diameter of 160mm (two stations) and 110mm (four stations). It is equipped with an industrial PLC programming text demonstration programmer, a precise stepping motor, and a motor speed of 0 ~ 300 RPM. The machine also has a positioning accuracy of ±0.1mm, a Z-axis adjust range of 250mm, and a Z-axis working travel of 50mm.

The HSTECH HS-D331AB Glue Dispensing Machine has a gluing track of full circle, single point, and segmented arc. It has two modes: four-station or two-station, which makes it suitable for different work scenarios. The machine has an easy operation via touchscreen & buttons, and it has adjustable settings for optimal glue performance. It also has a workpiece detector for gluing or skipping.

The HSTECH HS-D331AB Glue Dispensing Machine is made of aluminum alloy material, which means it is durable and can withstand harsh operating conditions. It has a cycle of four workstations that can operate at 1000-1500pcs/h, which means it can handle high-volume production.

Overall, the HSTECH HS-D331AB Glue Dispensing Machine is an excellent liquid adhesive applicator that can be used in different industries such as automotive, electronics, and packaging. Its versatility, precision, and durability make it a reliable choice for any gluing application.

Support and Services:

Our Glue Dispensing Machine product comes with a range of technical support and services including:

• Installation and setup assistance
• Product training and education
• Ongoing technical support
• Regular maintenance and servicing
• Repairs and replacements as needed
• Access to our online knowledge base and resources

We are committed to providing our customers with excellent service and support to ensure that their glue dispensing machines are operating at peak performance.

Packing and Shipping:

Product Packaging:

• One Glue Dispensing Machine
• Power Cord
• User Manual
• Warranty Card

Shipping:

• Shipping Method: Standard Shipping
• Expected Delivery Time: 5-7 business days
• Shipping Cost: Free
• Tracking Number: Provided

FAQ:

Q1: What is the brand name of this glue dispensing machine?

A1: The brand name of this glue dispensing machine is HSTECH.

Q2: What is the model number of this glue dispensing machine?

A2: The model number of this glue dispensing machine is HS-D331AB.

Q3: Is this glue dispensing machine certified?

A3: Yes, this glue dispensing machine is certified with CE certification.

Q4: Where is this glue dispensing machine made?

A4: This glue dispensing machine is made in China.

Q5: What are the available payment terms for this glue dispensing machine?

A5: The available payment terms for this glue dispensing machine are T/T, Western Union, and MoneyGram.

Q6: What is the minimum order quantity for this glue dispensing machine?

A6: The minimum order quantity for this glue dispensing machine is 1 pc.

Q7: What is the supply ability of this glue dispensing machine?

A7: The supply ability of this glue dispensing machine is 100pcs per week.

Q8: What is the delivery time for this glue dispensing machine?

A8: The delivery time for this glue dispensing machine is 5~7 work days.

Q9: How is this glue dispensing machine packaged?

A9: This glue dispensing machine is packaged in a wooden package, with foam.

Q10: Is the price of this glue dispensing machine negotiable?

A10: Yes, the price of this glue dispensing machine is negotiable.
