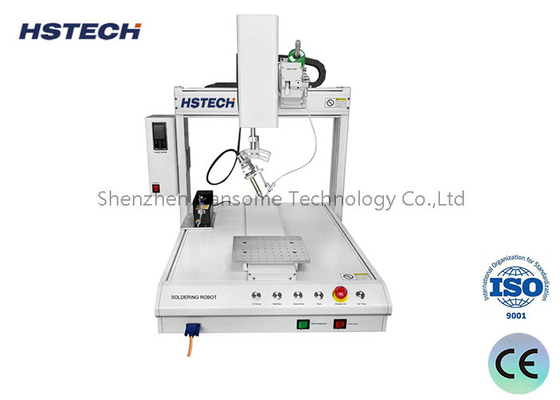

High Precision Automatic Soldering Robot for Heat Sensitive Components and More

High Precision Automatic Soldering Robot for Heat Sensitive Components and More

Brand Name:	HSTECH
Model Number:	HS-5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

5Axis Automatic Soldering Machine

Moving Range:

500x300x300x100mm

Soldering Head:

Single

Platform:

Double Y Working Platform

Voltage:

AC220V/110V

Solder Wire Specification:

0.6~1.0mm

Usage:

Pcb Soldeing,Welding,Circuit Board Soldering

Packaging Details:

Wooden package, with foam inside

Supply Ability:

200 pcs per month

Product Description

0.6 to 1.0mm Solder Wire Compatible Heating Control PCB Soldering Robot/Machine

Introduction

This automatic soldering machine is single rotation soldering head double Y platform machine, movring range 500x300x300x100mm, X axis moving range also can extend to 600mm, the machine is used in electronic manufactring factory, for replacing the traditional manual soldering process. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process, also widely used in PCB soldering wire, charger plug,solering,connector plug, DC terminal,LED strip light soldering and other fields.

Specification

Model	HS-S5331R	HS-S6331R
Voltage	AC110V/220V,50/60Hz
X/Y1/Y2/Z working range	500300300*100mm	600300300*100mm
R axis	360degree
X/Y/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD,CorelDRAW
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	65kg	70kg
Machine dimension	715585800mm	815685800mm

Features

1.Versatile for diverse products, freely adjustable soldering temperatures per joint.
2.Multi-directional soldering iron adjustment safeguards PCBs and components from harm.
3.Features dual working platforms with R-axis rotation for efficient operation.
4.Supports multiple welding techniques, including point & drag welding, for versatility.
5.Teach pendant programming allows saving up to 99 programs for quick recall.
6.Enhanced storage: handheld box (256M), offline card (32M), handles single files up to 3M (100,000 pts).
7.Precision temperature control, maintaining +/- 1°C under static conditions.
8.Rapid heat recovery & long-lasting solder tip ensure efficient, durable soldering.
9.Integrated stepper motor, timing belt, & Taiwan-made linear guide for precise control.

About Product

High Precision Automatic Soldering Robot for Heat Sensitive Components and More 0

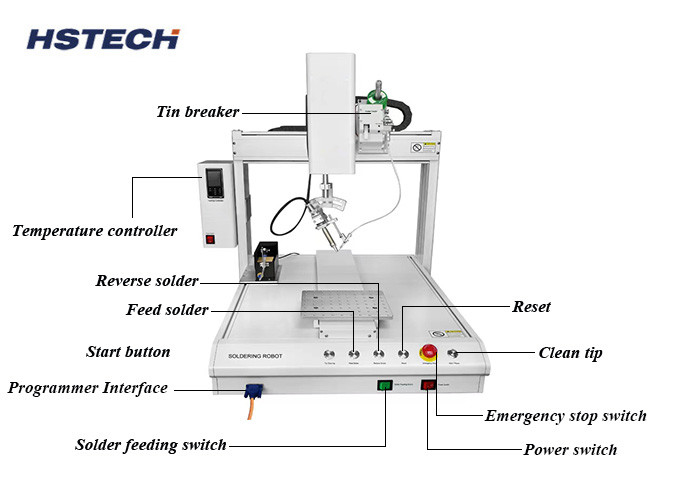

About Details

High Precision Automatic Soldering Robot for Heat Sensitive Components and More 1

About Packaging

High Precision Automatic Soldering Robot for Heat Sensitive Components and More 2

About Transport

High Precision Automatic Soldering Robot for Heat Sensitive Components and More 3
