Soldering Robot with Pendant Programming and CAD Drawing Import Capability

Linear Guide Solder Pen Iron Tin Floor Standing Robotic Soldering Machine

Introduction

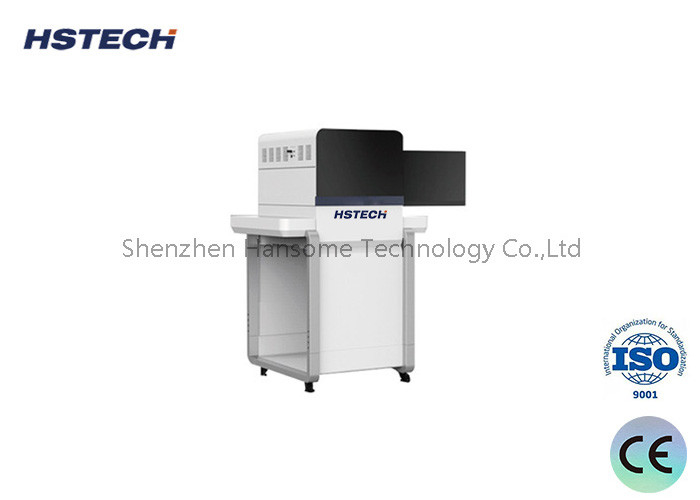

Introducing our advanced floor-standing automatic soldering machine, a versatile and agile soldering robot that transcends the limitations of traditional desktop models. Equipped with a sophisticated 5-axis working system, this machine boasts a dual soldering platform and a single soldering iron/tip, offering unparalleled convenience and flexibility.

With a generous moving range of 500x300x300x100mm, it effortlessly accommodates a wide array of PCBA welding tasks. By automating the soldering process, it significantly enhances work efficiency while ensuring superior welding quality, eliminating the need for manual intervention. Experience the future of soldering with our innovative floor-standing automatic soldering machine.

Features

1.Featuring a robust metal frame, our floor-standing design incorporates a dual-platform functionality for enhanced versatility and efficiency.
2.The 5-axis operation system, including an R-rotation axis, offers unparalleled flexibility in handling diverse soldering tasks.
3.With a customizable travel distance of 500x300x300mm, the machine can be tailored to meet specific customer requirements.
4.Equipped with a single soldering iron featuring an adjustable range, or optionally available in double/triple configurations, it caters to various soldering needs.
5.Supports a range of welding techniques, including point and drag welding, ensuring precision and quality in every soldering job.
6.The pendant programming interface allows for manual point setting and the importation of CAD drawings, simplifying programming and enhancing accuracy.
7.Precision movement is guaranteed by the integration of Hiwin Linear Guides, ensuring smooth and accurate operation.
8.Driven by reliable stepper motors and timing belts, the machine ensures consistent and dependable performance in all soldering applications.

Specification

Main machine configuration

1, Double soldering Iron, double Y working platform

2, Handheld teach pendant programmer

3, Heating controller

4, Broken tin controller

5, Solder pen assembly

6, Welding tip

7, Tin out components

8, Cleaning box
