220V Rotation Axis Automatic Soldering Robot for Electronics Manufacturing Industry

Teaching Pendant 220V Rotation Axis Automatic Solder Wire Soldering Robot

Introduction

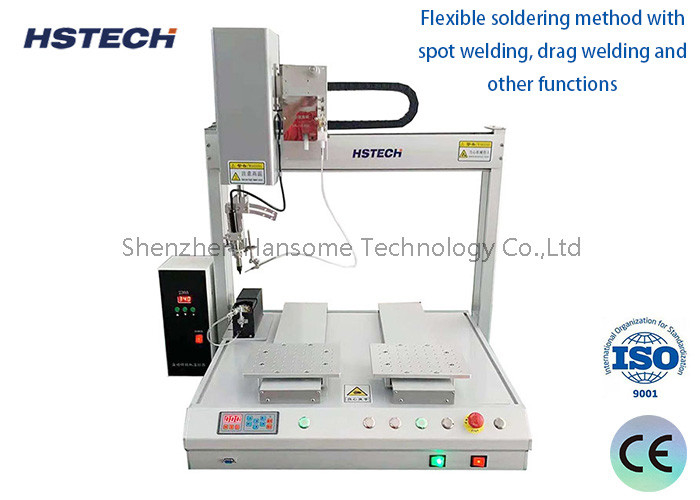

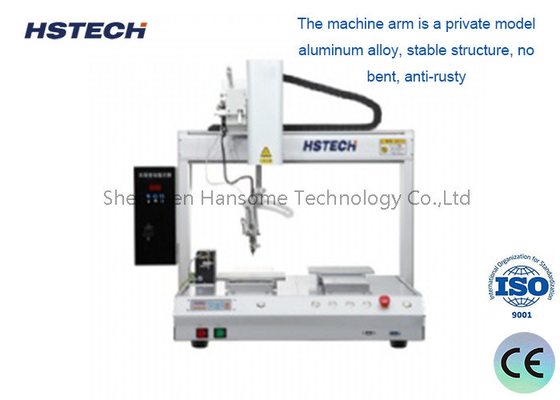

This automated soldering machine boasts a 3-axis movement system equipped with a single soldering head that incorporates a rotation axis. Predominantly utilized in the electronics manufacturing sector, it excels at performing blind soldering tasks that are unfeasible with reflow or wave soldering methods. It is ideally suited for handling mixed circuit boards, heat-sensitive components, and delicate devices during the SMT backend process. Furthermore, its applications extend widely to PCB wire soldering, charger plugs, soldering of connectors, DC terminals, LED strip light soldering, and various other domains.

Features

1.The 4-axis operation, comprising X/Y/Z movements and R rotation, enables multi-angle soldering, catering to diverse soldering requirements.
2.The nitrogen-free soldering iron ensures exceptional safety and environmental protection.
3.The soldering head is adjustable in multiple directions, safeguarding the PCB and components from potential damage.
4.The Iron head serves as the reference point for aligning crucial product positions. Simply pressing the enter key initiates the automatic generation of this point within the system, allowing for the seamless setup of related data.
5.Incorporating high-precision stepper motors, timing belt drive systems, and advanced motion control algorithms, the machine significantly enhances motion positioning accuracy and repeatability.
6.Equipped with an automatic cleaning function, the machine promotes stable soldering processes and extends the lifespan of the soldering iron.
7.The handheld LCD teaching pendant simplifies programming, making it user-friendly and easy to learn.

Specification

About Product

About Details

About Packaging

About Transport
