High Precision 4 Axis Soldering Machine With Stepper Motor And Timing Belt Driven System

High Precision Soldering with Customizable Fixtures and Multi-Directional Adjustments

Introduction:

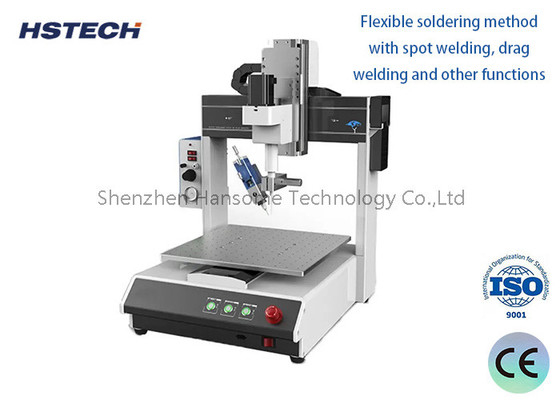

This automatic soldering machine is a desktop model soldering robot, the machine adopts stepper motor and timing belt driven system. The whole machine assemblyed with high quality precision Hiwin linear guide and Airtec cylinder. The PCB or product which need to be soldered is fixed by the customized fixtures. The machine with spot welding, pull welding,automatic cleaning and location corrective,reproduction,array,automatic positioning and so on. Also the machine is easy maintenance and operation, great improve the production efficiency.

Features:

1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, Robot instead of powerman can save much more labor cost.

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.

4, The machine support sopt welding, drah welding.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6, Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

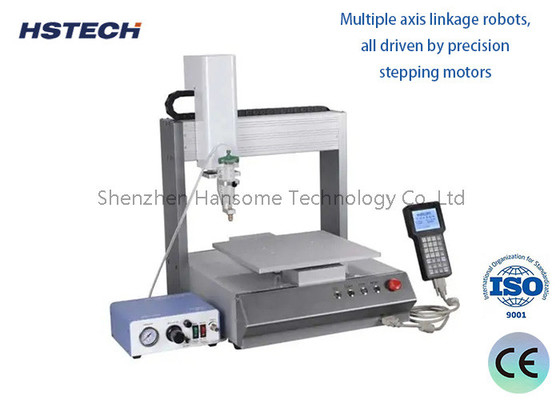

8, With the handheld LCD teaching pendant, the programming is simple and easy to learn.

Application:

1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

Automated welding
The robot has the functions of automatic identification of component position, automatic material collection, automatic positioning, automatic welding, etc.
It can realize unattended automated welding operations and greatly improve production efficiency.

High-precision positioning
The robot adopts a high-precision visual system and motion control system, which can accurately align the welding tip with the welding point.
The welding quality is stable, which is conducive to improving the product yield rate.

Flexible and multifunctional
It can be programmed according to different welding requirements, and supports various welding methods such as spot welding, wire welding, SMT welding, etc.
It has functions such as automatic detection and welding quality monitoring.

Integrated design
Integrates key components such as welding station, feeding system, visual system, and manipulator into one.
The whole machine is small in size and can be placed directly on the desktop for use.

Easy to operate and maintain
Equipped with a human-computer interaction interface, the operation is simple and convenient.
The modular design is conducive to maintenance and upgrade.

Specification:
