High Quality SMT Nozzle Cleaner 304 Stainless Steel For Safe And Non-Toxic Cleaning

High Quality 304 Stainless Steel SMT Nozzle Cleaner For Safe And Non-Toxic Cleaning

Introduction

The nozzle cleaning machine is a cleaning device that replaces the traditional cleaning of nozzles by steel needles or ultrasonic vibration. It can remove the dirt on the nozzles that could not be removed before in a short time. And the nozzle will not be damaged during the cleaning process. Since non-toxic and harmless cleaning liquid is used, the whole process is more environmentally friendly.

Features

1. Completely solve the dirt and impurities that are difficult to clean with ultrasonic waves;
2. It will not be cleaned due to the smaller and smaller suction nozzle hole diameter;
3. More thorough cleaning directly extends the life of the nozzle;
4. No damage to the nozzle surface coating and reflective plate;
5. Use environmentally friendly deionized water or distilled water for cleaning;
6. Automatic continuous cleaning and automatic drying;
7. The operation is simpler and more convenient;
8. Suitable for various placement machines.

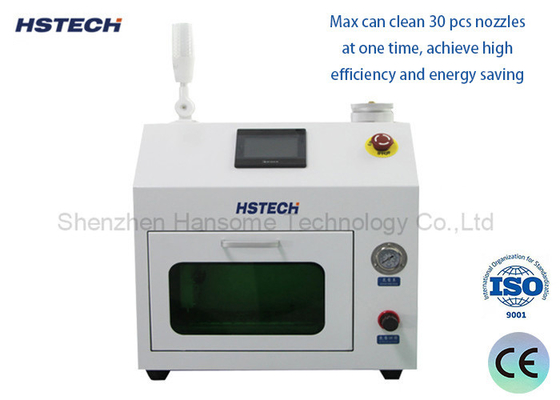

9. Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.

Automated cleaning
The equipment uses a mechanical arm and a special cleaning fluid to fully automate the periodic cleaning of the nozzle of the placement machine.

Efficient and fast
The cleaning time only takes about 30 seconds, which can greatly improve the work efficiency of the production line.

Accurate positioning
Equipped with a machine vision system, it can accurately locate the nozzle position and perform automatic cleaning.

Pollution-free cleaning
The special cleaning fluid can effectively remove the welding slag and oil stains on the surface of the nozzle without causing any damage to the nozzle.

Simple operation
The equipment integrates a human-machine interface, and the operator only needs to simply start the program.

Integrated design
Can be seamlessly integrated with the main placement machine without the need for additional operating space.

Reliable and durable
Using industrial-grade component design, it has a long service life.

Energy saving and environmental protection
The cleaning fluid adopts a water-based formula, does not contain toxic and harmful ingredients, and is environmentally friendly and recyclable.

Product advantages

1. Reduce the purchase cost of the nozzle
2. Reduce unnecessary labor
3. Reduce product defect rate. Dirty nozzles with weak suction force can easily cause components to slip and throw away, resulting in an increase in product defect rate
4. Improve SMT production efficiency

Main Uses

Cleaning the Surface of SMT Nozzles
SMT nozzles will accumulate various pollutants, such as solder paste residue, dust, etc. during long-term use. SMT Nozzle Cleaner can effectively remove these pollutants and keep the nozzle surface clean. This helps ensure the accuracy and stability of the suction of parts.

Eliminate static electricity
Static electricity is easily generated during the SMT production process, which can cause dust to adhere to the nozzle surface or parts to fall off. SMT Nozzle Cleaner contains static eliminators, which can effectively remove static electricity and improve the adsorption process.

Extend the life of the nozzle
Regular use of SMT Nozzle Cleaner can remove deposits on the nozzle surface to avoid excessive wear. This helps to extend the life of the nozzle and reduce the frequency of replacement.

Improve production efficiency
The performance of the cleaned nozzle is better, which can improve the accuracy and stability of the part adsorption of the placement machine, thereby improving production efficiency.

Ensure product quality
A clean nozzle can avoid welding defects caused by contamination, which is conducive to improving the quality of the final product

Specification

Machine size

Nozzle Tray
