SMEMA Compatible PCB Handling Equipment With Laser Carved Stainless Steel Side Guide

Brand Name:	HSTECH
Model Number:	HS-CVN350
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Highlight:

SMEMA Compatible PCB Handling Equipment

Stainless Steel PCB Handling Equipment

Laser Carved PCB Handling Equipment

Product Description

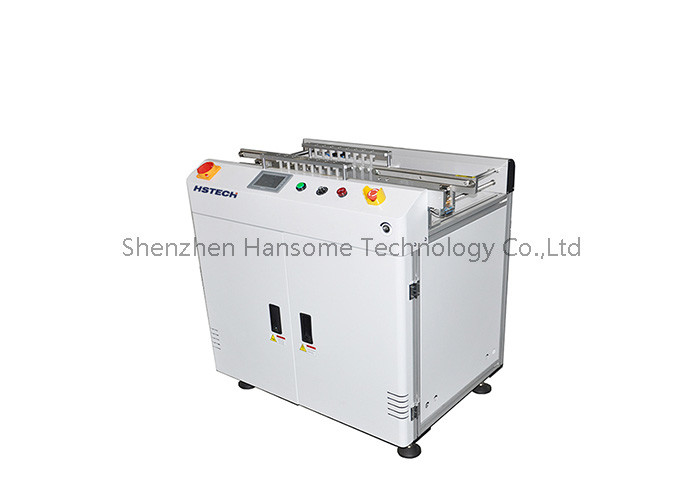

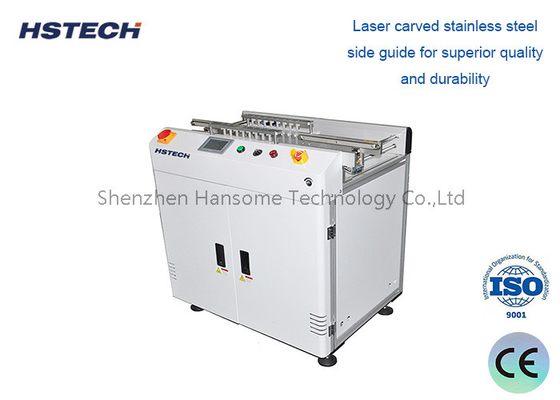

PCB Reject Conveyor Compatible Laser Carved Stainless Steel Side Guide With SMEMA

introduce:

This unit offers a seamless integration into SMT production lines, featuring an OK and NG board selection function. It comes into play during visual inspections of PCBs, allowing for continuous PCB flow without disrupting the normal production process.

Features:

Offers versatile operation modes, including reject, inspect, and bypass, catering to diverse production needs.
Features a modular design for easy maintenance and customization.
Boasts a robust construction that enhances overall stability and reliability.
Equipped with laser-carved stainless steel side guides, ensuring superior quality and long-lasting durability.
Incorporates an ergonomic armrest design for operator comfort and reduced fatigue.
Enables smooth and precise parallel width adjustment through a lead screw mechanism.
Available in various lengths to suit specific production requirements upon request.
Features variable speed control for optimal performance and adaptability to different production scenarios.
Fully SMEMA compatible, ensuring seamless integration into existing production lines.

Specification:

Model	HS-CVN350	HS-CVN460
Efficient PCB length	5050~450350mm	5050~550460mm
Machine dimension	1000690930mm	1000800930mm
Weight	70kg	90kg

Transport height	910±20mm
Transportation direction	L~R, or R~L(optional)
Transporting speed	0.5~20 m/min or specify
Power supply	AC100-230V,50/60Hz,single phase
Power consumption	100VA max
Air pressure	4-6bar
Air consumption	Max 10L/min
Communication	SMEMA
