Automatic Soldering Robot
Created with Pixso.

Boost Your Manufacturing Efficiency with Our State-of-the-Art Automatic Soldering Robot

Boost Your Manufacturing Efficiency with Our State-of-the-Art Automatic Soldering Robot

Brand Name: HSTECH
Model Number: HS-5331R
MOQ: 1 set
Price: Negotiable
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detail Information
Place of Origin:
China
Certification:
CE
Platform:
Double Y Working Platform
Main Machine Configuration:
Double Soldering Iron, Double Y Working Platform, Handheld Teach Pendant Programmer, Heating Controller, Broken Tin Controller, Solder Pen Assembly, Welding Tip, Tin Out Components, Cleaning Box
Product Name:
Five-Axis Automatic Soldering Robot With Independent Tin Feeding Axis
Iron Tin:
Single
Linear Guide:
Hiwin
Specification:
Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z Working Range: 500*300*300*100mm/600*300*300*100mm, R Axis: 360degree, X/Y/Z Moving Speed: Max 300mm/s, Driven System: Stepper Motor,timing Belt, Linear Guide: Taiwan Brand High Precison G
Machine Body:
Metal Structure
Usage:
Pcb Soldeing,Welding,Circuit Board Soldering
Packaging Details:
Wooden package, with foam inside
Supply Ability:
200 pcs per month
Highlight:

auto soldering machine

,

State-of-the-Art Automatic Soldering Robot

Product Description

Product Description:

Constructed with a sturdy metal frame, this machine stands out as durable and reliable even in harsh conditions. It boasts a dual soldering iron system capable of simultaneous top and bottom soldering, significantly boosting efficiency. The handheld programmer is designed for user-friendly control, making programming and customization a breeze. The heating and tin controllers maintain consistent soldering temperatures, thereby preventing defects.

The precision welding tip and solder pen assembly ensure precise task execution, while the tin disposal and cleaning components keep the workspace organized. This Five-Axis Automatic Soldering Robot is ideal for the electronics, automotive, medical, and aerospace industries, optimizing workflows with minimal manual intervention. Invest in this dependable machine to meet all your soldering needs and enhance your productivity.



Features:

  • Product Name: Five-Axis Automatic Soldering Robot with Independent Tin Feeding Axis

    Iron Tin: Single (Customizable to Double or Triple)

    Features:

  • 1.Sturdy Construction: Built with a durable metal structure for long-lasting performance.
  • 2.Floor Standing Model: Designed for stability and easy accessibility.
  • 3.Double Platform Operation: Increases productivity by allowing two workpieces to be processed simultaneously.
  • 4.5-Axis Movement: Features an R rotation axis for precise soldering angles.
  • 5.Customizable Traveling Distance: Standard 500300300mm range, but can be tailored to customer specifications.
  • 6.Flexible Soldering Iron Configuration: Single soldering iron with multiple moving range options, customizable to double or triple soldering irons based on product size.

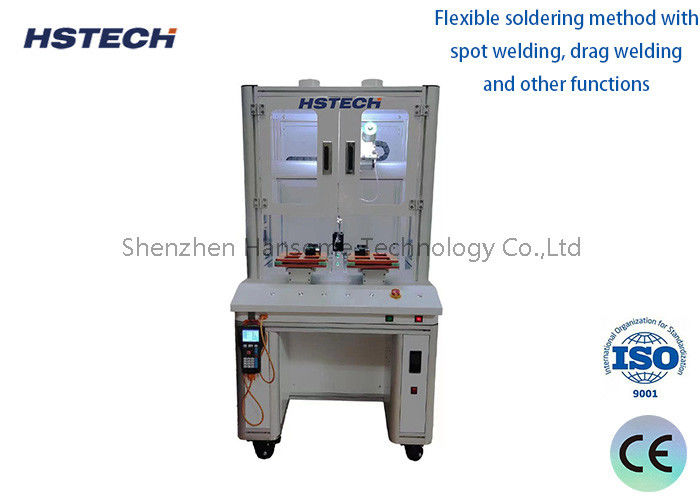

  • 7.Versatile Welding Methods: Supports point welding, drag welding, and other functions to meet various soldering needs.
  • 8.Intuitive Programming: Teach pendant programming allows for manual setting of all welding points, with the option to import CAD drawings for streamlined setup.
  • 9.Precision Movement: Equipped with high-quality Taiwan Hiwin brand Linear Guides to ensure accuracy.
  • Advanced Controls: Utilizes Stepper motor and timing belt control for smooth and reliable operation.
  • Usage: PCB Soldering, Welding, Circuit Board Soldering
  • Linear Guide Brand: Hiwin


Technical Parameters:

Features Description
Soldering Machine Soldering Machine Type Automatic Soldering Robot
Soldering Iron Tin Single
Machine Body Metal Structure
Specification Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z working range: 500*300*300*100mm/600*300*300*100mm, R axis: 360degree, X/Y/Z moving speed: max 300mm/s, Driven system: Stepper motor,timing belt, Linear guide: Taiwan brand high precison guide, Repeat accuracy: ±0.02mm, Programing: Teach pendant, Control system: Control board, Program storage: It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points), File storage space: Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points), Document support: CAD, Iron Tin cleaning: Air cleaning/pneumatic, External interface: USB+RS232, Soldering method: Point/drag soldering, Weight: 65kg/70kg, Machine dimension: 715*585*800mm/815*685*800mm
Main Machine Configuration Double soldering Iron, double Y working platform, Handheld teach pendant programmer, Heating controller, Broken tin controller, Solder pen assembly, Welding tip, Tin out components, Cleaning box
Usage Pcb Soldeing,Welding,Circuit Board Soldering
Product Category Automatic Soldering Robot
Platform Double Y Working Platform
Linear Guide Hiwin


Applications:

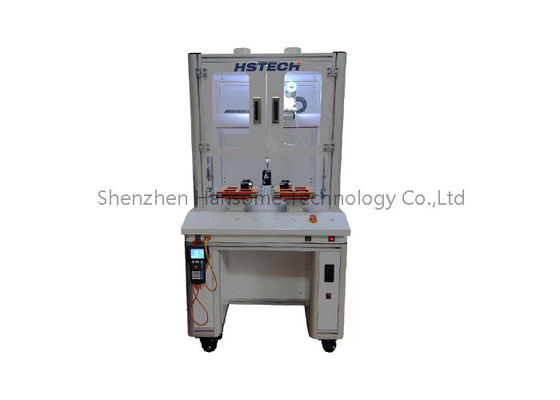

Introducing the versatile HS-5331R, a 5-axis automatic soldering robot featuring dual platforms and R rotation for unparalleled flexibility and precision. This machine can accommodate a range of product dimensions and offers upgrades to double or triple soldering irons, supporting both point and drag welding techniques.

The HS-5331R simplifies programming with its intuitive teach pendant interface and CAD import capabilities, ensuring that manual settings are quick and easy. It utilizes premium guides and stepper motor/timing belt control for smooth and accurate movements. The double Y platform further enhances its versatility.

The standard configuration includes double soldering irons, a programmer, heating and tin controllers, a solder pen, welding tip, tin disposal system, and cleaning box. The HS-5331R is CE-certified, made in China, and renowned for its reliability and efficiency.

Minimum order quantity is one set, with payment options including D/P, T/T, Western Union, and MoneyGram. We can supply up to 200 units per month, with a delivery time of 5~7 days. Protective packaging ensures that your machine arrives in perfect condition. Pricing is negotiable based on your specific requirements.



Support and Services:

The Automatic Soldering Robot comes with a comprehensive package of technical support and services designed to help users fully leverage its capabilities. Our expert team is dedicated to assisting with installation, setup, and configuration to ensure your robot is ready to go. We also offer training sessions to empower users with the skills needed to operate the robot efficiently and utilize its features to the fullest.

In addition, our technical support team stands ready to address any issues or troubleshooting needs that may arise during your robot's usage. Our commitment to customer satisfaction ensures that you'll receive the necessary support and service to optimize the performance of your Automatic Soldering Robot. We're here to help you maximize its potential and achieve your soldering goals.



Packing and Shipping:

Product Packaging:

  • 1 Automatic Soldering Robot
  • 1 Soldering Iron
  • 1 Power Cable
  • 1 User Manual

Shipping:

  • Shipping Method: Standard Shipping
  • Estimated Delivery Time: 5-7 business days
  • Shipping Cost: $9.99
  • Tracking Number: Provided


FAQ:

Q: What is the brand name of this automatic soldering robot?

A: The brand name of this automatic soldering robot is HSTECH.

Q: What is the model number of this automatic soldering robot?

A: The model number of this automatic soldering robot is HS-5331R.

Q: Is this automatic soldering robot certified?

A: Yes, this automatic soldering robot is certified with CE.

Q: Where does this automatic soldering robot come from?

A: This automatic soldering robot comes from China.

Q: What is the minimum order quantity for this automatic soldering robot?

A: The minimum order quantity for this automatic soldering robot is 1 set.

Q: What are the accepted payment terms for this automatic soldering robot?

A: The accepted payment terms for this automatic soldering robot are D/P, T/T, Western Union, and MoneyGram.

Q: What is the supply ability of this automatic soldering robot per month?

A: The supply ability of this automatic soldering robot is 200 pcs per month.

Q: How long is the delivery time for this automatic soldering robot?

A: The delivery time for this automatic soldering robot is 5~7 work days.

Q: How is this automatic soldering robot packaged?

A: This automatic soldering robot is packaged in a wooden package, with foam inside.

Q: Is the price negotiable for this automatic soldering robot?

A: Yes, the price for this automatic soldering robot is negotiable.
