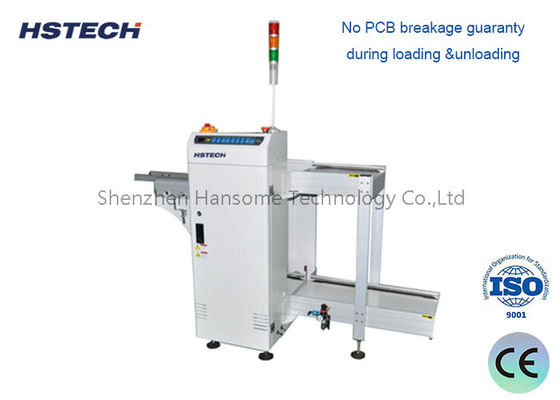

High Stability PCB Loader Unloader with Magazine Rack for SMT Production Line

Brand Name:	HSTECH
Model Number:	HS-UL250 / HS-UL330
MOQ:	1 pc
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Plc:

MITSUBISHI

Type:

Automated Handling System

Transport Height:

910±30mm

Warrany:

1 Year

PCB Thickness:

Minimum 0.4mm

Pcb Width:

Adjustable

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

PCB loader unloader with magazine rack

SMT production line PCB handler

high stability PCB handling equipment

Product Description

High Stability PCB Loader Unloader with Magazine Rack for SMT Production Line

Product Overview

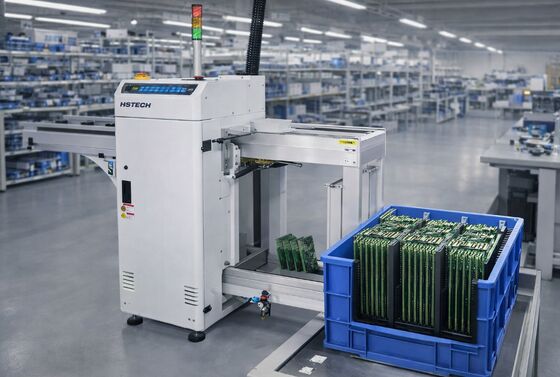

This Automatic PCB Magazine Loader / Unloader Machine is designed for efficient PCB loading and unloading in SMT production lines. With a robust modular structure, smooth width adjustment, and pneumatic magazine clamping system, the machine ensures stable PCB transfer with zero PCB damage during loading and unloading.

It is fully SMEMA compatible, making it easy to integrate with printers, pick-and-place machines, reflow ovens, and AOI systems.

SMT PCB assembly factories, EMS manufacturers, electronics production lines

Key Features

Automatic PCB magazine loading and unloading
SMEMA compatibility for seamless integration
Robust modular construction for durability
Smooth width adjustment mechanism
Pneumatic magazine clamping system
Zero PCB damage during transfer operations
Compatible with printers, pick-and-place machines, reflow ovens, and AOI systems
