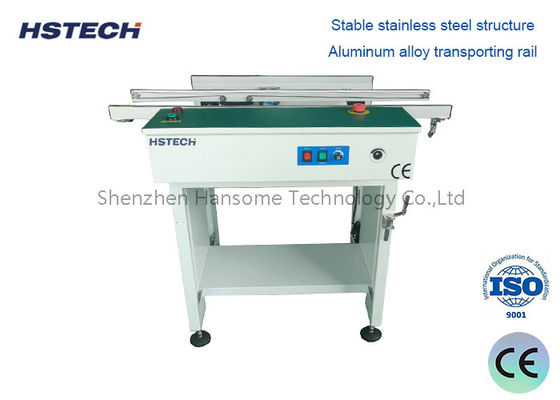

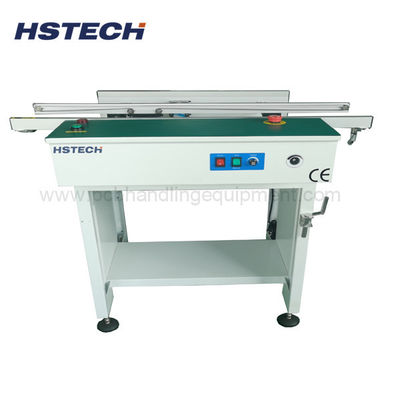

Height Adjustable PCB Conveyor PCB Transfer Conveyor Machine With ESD Working Table

Brand Name:	HSTECH
Model Number:	HS-C600/HS-C1000/HS-C1500
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

PCB Conveyor

PCB Width:

50*50~530*460mm

Transport Height:

910±30mm

Width Adjustment:

Hand Crank

Signal:

SMEMA

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

100 PC/Month

Highlight:

ESD PCB conveyor machine

height adjustable PCB transfer conveyor

PCB handling equipment with work table

Product Description

Height Adjustable PCB Conveyor with ESD Working Table

Reliable PCB conveyor designed for SMT production lines, featuring adjustable width, speed control, and SMEMA compatibility to improve PCB handling efficiency.

Product Overview

The PCB Conveyor is an essential piece of equipment in SMT production lines, designed to transport PCBs smoothly and efficiently between different machines including printers, pick-and-place machines, AOI systems, and reflow ovens. Built with a stable structure and user-friendly design, this conveyor ensures safe, precise, and continuous board transfer, helping manufacturers improve productivity and reduce manual handling.

Key Features

PLC Intelligent Control

Equipped with a Programmable Logic Controller (PLC) for accurate and stable operation, ensuring consistent PCB transfer across your production line.

Adjustable Width Design

Manual hand crank width adjustment
Smooth and parallel adjustment via stainless steel screw system
Suitable for different PCB sizes

Technical Specifications

Function	Description
Transport height	910±30mm
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side, or customized
PCB width	5050~530460mm
Conveyor length options	0.5m/0.6m/1.0m/1.5m or customization
Speed adjust method	Knob
Width adjustment	Hand crank (optional auto adjust)
Power supply	AC110/220V, 50/60Hz, ±10%
Options	Light, Fan, Inspection function, Cover, Automatic width adjustment, dual rail, etc.
Signal	SMEMA

Model Specifications

Model	HS-C600	HS-C1000	HS-C1500
PCB width	5050~530390mm	5050~530390mm	5050~530390mm
Machine dimension	730600940mm	1130600940mm	1630600940mm
Weight	60kg	80kg	100kg

Bi-Directional Transfer

Supports left to right (L → R) and right to left (R → L) transfer directions, providing flexible installation for various SMT line layouts.

ESD Safe Working Surface

Designed with an ESD-safe conveyor belt to protect sensitive electronic components from static damage.

Speed Control Function

Adjustable conveyor speed allows synchronization with upstream and downstream equipment, ensuring smooth workflow.

Stable and Durable Structure

Adjustable height with stable foot cups
Strong frame for long-term industrial use
Compact and space-saving design

SMEMA Compatible

Fully supports SMEMA communication protocol, enabling seamless integration into automated SMT production lines.

Technical Highlights

Width adjustment: Manual crank system
Transmission direction: L → R / R → L
Control system: PLC
Conveyor type: ESD belt
Speed: Adjustable
Height: Adjustable
Communication: SMEMA

Application Scenarios

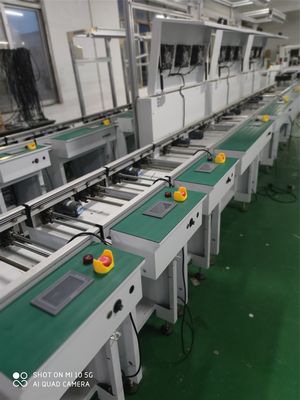

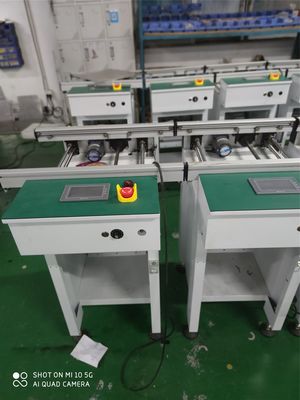

This PCB conveyor is widely used in SMT production lines, PCB assembly factories, electronics manufacturing (EMS/OEM/ODM), consumer electronics production, and automotive electronics. It serves as a linking unit between equipment, ensuring continuous and efficient workflow.

Production Line Benefits

Improve production efficiency
Reduce manual handling and labor cost
Ensure stable PCB transportation
Minimize production downtime
Enhance automation level

Optional Customization

We support customization based on your requirements including conveyor length, width range, speed configuration, and special PCB handling requirements.

Why Choose Our PCB Conveyor?

In modern SMT manufacturing, reliable PCB transfer is critical. Our PCB conveyor solves common challenges with precise control, flexible adjustment, and stable performance, preventing PCB misalignment, production interruptions, increased defect rates, and reduced throughput.

Why Work With HSTECH

At HSTECH, we specialize in SMT automation and PCB handling equipment. We offer reliable product quality, flexible customization, competitive pricing, fast delivery, and global technical support.

Get a Quote Now

Looking for a reliable PCB conveyor for your SMT line? Contact us today for free consultation, customized solution, and best price offer. Send your PCB size and production line layout – we'll recommend the best conveyor for your needs.
