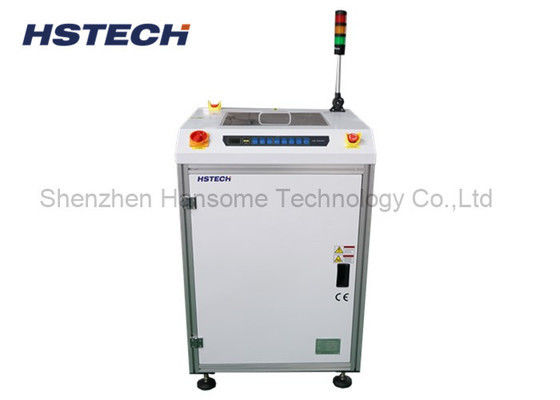

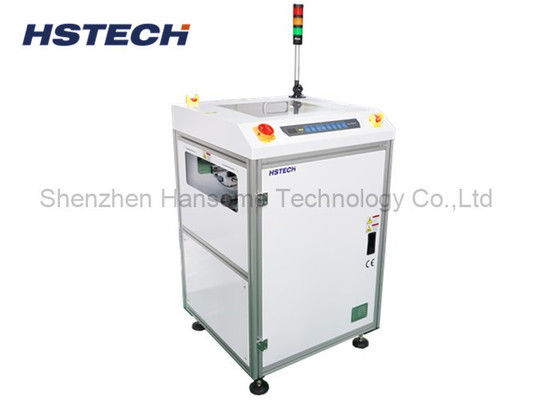

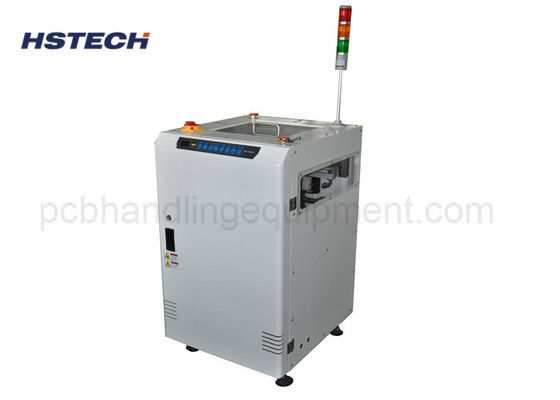

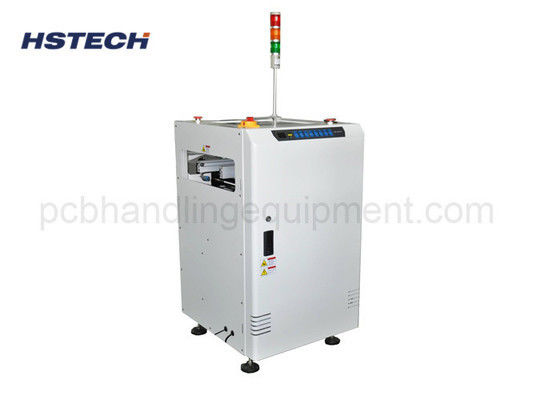

High Efficiency Enclosed PCB Turn Conveyor SMEMA Compatible PCB Handling Equipment

The PCB Turn Conveyor is an essential component of modern SMT production lines, designed to optimize factory floor space and ensure a smooth, continuous flow of circuit boards. This automated transfer system efficiently changes the direction of PCBs by 90 or 180 degrees, connecting different stages of your assembly line seamlessly. Built with an enclosed design for safety and stability, it is fully compatible with SMEMA standards, making it the ideal solution for high-precision PCB handling in electronics manufacturing.

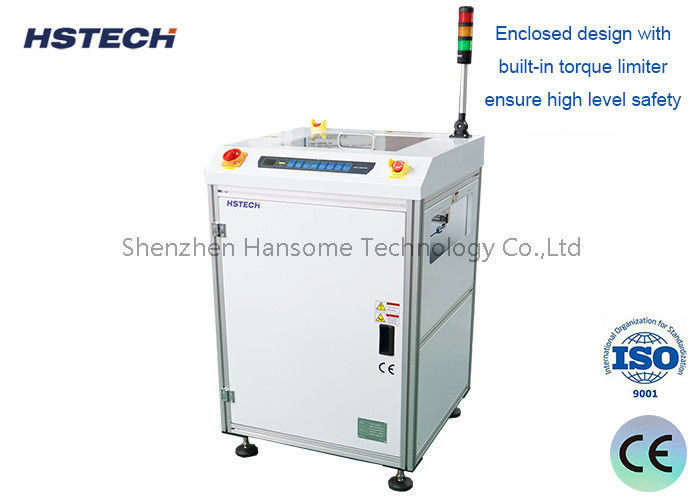

1. Enclosed design with built-in torque limiter ensure high level of safety.
2. Top safe cover can be opened for each access to hardware during Maintenance.
3. Use friendly control button.
4. Smooth and precise rotation.
5. Minimize the transfer gap between conveyors.
6. PCB traffic flows can be customized.
7. Smooth and parallel width adjustment(lead screw).
8. SMEMA compatible.

• SMT Production Lines​ - Connecting chip mounters, printers, and reflow ovens.
• PCB Separation Process​ - Transferring boards to testing/inspection stations.
• Assembly Line Transfers​ - Multi-floor or cross-area board transportation.
• Buffer Storage Areas​ - Integrated with lifts for vertical conveying flow.

We specialize in providing high-quality SMT solutions for the global market. Our PCB Turn Conveyors are engineered for durability, precision, and ease of use, ensuring your production line runs at maximum efficiency with minimal downtime. Contact us today to optimize your factory layout!

Get Started Today:

Request a customized quote and optimize your SMT line for peak efficiency!
