High Precision 4 Axis AB Glue Dispensing Machine ±0.02mm Accuracy 300300100mm 1:1-10:1 Mixing Ratio

Brand Name:	HSTECH
Model Number:	HS-D331AB
MOQ:	1PC
Price:	Negotation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Glue Mixing Ratio:

1:1-10:1 / Customizable

Dispensing Speed:

10-150g/5s (based On 1:1 Glue Proportion)

Dispensing Precision:

Glue Amount ±1%, Glue Proportion ±1%

X/Y/Z Working Range:

300×300×100mm (Z Axis Rotatable)

XYZ Speed:

Maximum 300mm/s

Repeatability:

±0.02mm

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

4 axis glue dispensing machine high precision

AB glue dispenser ±0.02mm accuracy

glue dispensing machine 1:1-10:1 mixing ratio

Product Description

Industrial 4 Axis AB Glue Dispensing Equipment with ±0.02mm positioning accuracy, 300×300×100mm stroke range, and 1:1-10:1 AB glue proportion mixing capability.

Product Overview

Our 4 Axis AB Glue Dispensing Machine is a high-precision automatic solution designed for global industrial manufacturers. As core equipment in modern intelligent manufacturing, this machine integrates high repeat accuracy, flexible glue mixing ratios, and wide working range capabilities. It perfectly adapts to production needs in electronics, automotive, medical, and other industries, helping improve production efficiency, reduce costs, and enhance product competitiveness.

Machine Features

PC computer LCD screen operation with intuitive programming interface
Advanced path programming for points, lines, surfaces, arcs, circles, and continuous irregular curves
Programmable glue volume, dispensing speed, timing, and stop parameters
Specialized dispensing controller ensures stable output and clean, leak-free operation
Rapid dispensing on inner/outer walls, vertical surfaces, gaps, and spherical surfaces
Customizable configurations with fixtures, glue guns, controllers, and heating temperature control

Technical Specifications

Glue Mixing Ratio	1:1-10:1 / Customizable
Dispensing Speed	10-150g/5s (based on 1:1 glue proportion)
Dispensing Precision	Glue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range	300×300×100mm (Z axis rotatable)
XYZ Speed	Maximum 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern Capabilities	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount ±1%, Ratio ±1%
Operation Method	Automatic
Programming	Teach Pendant
Control System	Board Card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimensions (L×W×H)	716×585×645mm
Power Supply	220V 50-60Hz 350W

Wide Range of Applications

Our 4-axis AB glue dispensing machine is widely used across various industries for potting, sealing, and bonding applications:

Electronics: PCB board potting, COB (Chip on Board) black glue filling, sensor encapsulation
Automotive: Headlight sealing, ignition coil potting, battery pack bonding
Home Appliances: Waterproof sealing for washing machine control boards, coffee machine components
LED Lighting: LED strip encapsulation, bulb potting

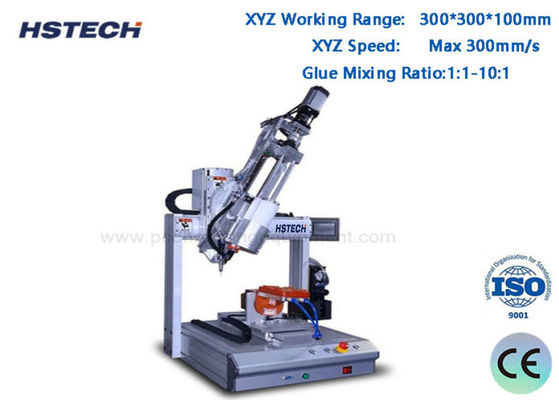

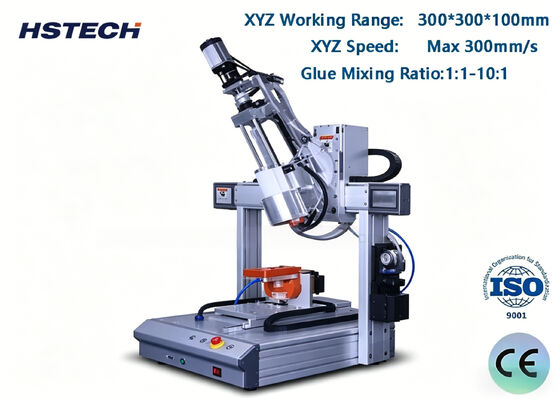

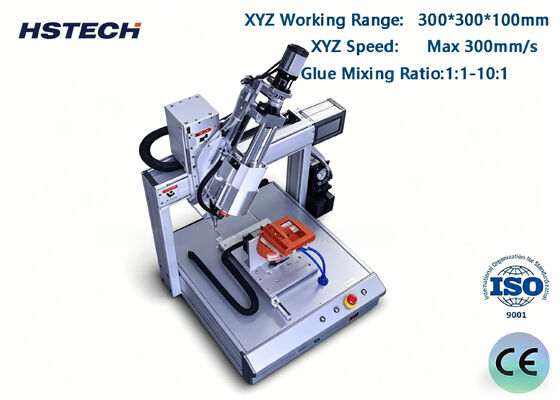

Product Images

Why Choose Our 4 Axis AB Glue Dispensing Machine?

In the global market, our 4 Axis AB Glue Dispensing Machine has won wide recognition from customers with its outstanding advantages, and has become the preferred choice for many manufacturers:

High Precision & High Efficiency: ±0.02mm repeat accuracy ensures stable product quality, and automatic dispensing reduces labor costs by 30%-50%, improving production efficiency by 50% compared with manual operation
Flexible & Versatile: Adjustable glue mixing ratio and 4-axis motion design, compatible with various AB glues and workpieces, meeting diverse production needs of different industries
Easy Operation & Low Maintenance: User-friendly teach pendant and anti-curing design, reducing training and maintenance costs, suitable for teams of all skill levels
Market-Adapted & Reliable: Complies with international certifications, adapts to various climate and technical standards, and provides stable performance in high-intensity production environments
Perfect After-Sales Service: Professional after-sales team providing timely technical support and spare parts supply for global customers, ensuring smooth production

If you are looking for a high-quality 4 Axis AB Glue Dispensing Machine, please contact us immediately. We will provide you with customized solutions, detailed product parameters and preferential quotation, and work with you to achieve efficient and intelligent production!
