Aluminum Alloy Touch Screen V-cut PCB Separator with MITSUBISHI PLC for SMT Depaneling

High Precision Low Stress V-cut PCB Separator Aluminum Alloy Body Touch Screen Operation Equipped With MITSUBISHI PLC Intelligent Control For SMT PCBA Circuit Board Depaneling Processing Machine

Product Overview

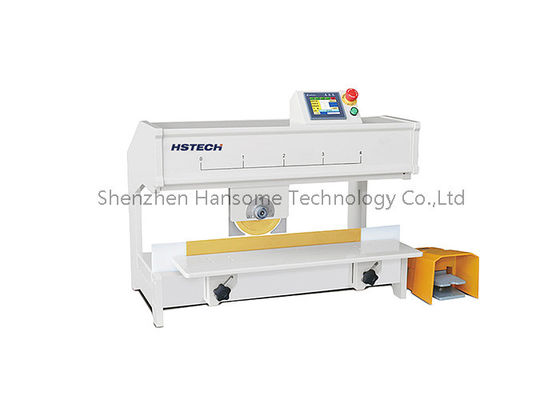

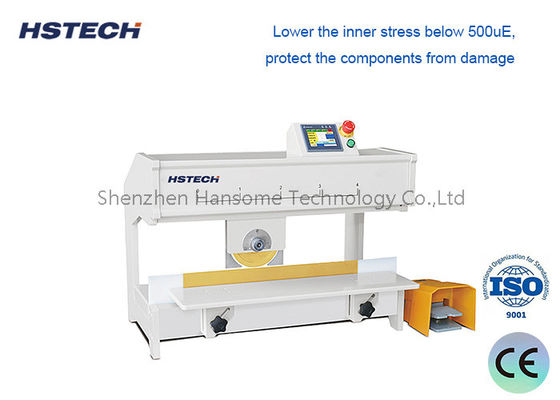

Are you looking for a safer, more precise alternative to traditional manual breaking or high-stress cutting methods? The Blade Moving V-cut PCB Separator is a high-precision automatic depaneling machine designed for separating V-cut scored PCB panels into individual units in SMT and PCBA production lines. Unlike traditional fixed-blade or board-moving models, this Blade Moving PCB Separator features a moving circular blade and fixed worktable, ensuring low-stress, clean, and consistent cutting without damaging sensitive electronic components on the board. Widely used in consumer electronics, automotive electronics, LED lighting, and industrial control board manufacturing, it has become the preferred solution for factories pursuing high yield rates and stable production efficiency.

Features

1. It can cut rapidly regardless of the quantity, very economic.
2. Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.
3. Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.
4. PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.
5. Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.
6. The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.
7. The starting cutting position can be set freely, which can ensure the long lifespan.
8. This machine equipped with counting function, can facilitates the data after the production.

Specfication

Wide Range of Applications

This reliable blade-moving separator is widely used across various electronics manufacturing sectors:

• SMT Assembly Lines: Separating multi-panel PCBs after component mounting without risking damage to fragile parts.
• LED Lighting Industry: Precision cutting of aluminum substrates, LED light bars, and MCPCBs with excellent edge quality.
• Consumer Electronics: Depaneling motherboards for smartphones, tablets, and wearables where internal space is extremely tight.
• Automotive & Industrial Control: Processing rigid boards and thick copper boards that require stable, low-vibration cutting to ensure long-term reliability.

Why Choose Our Blade Moving PCB Separator?

Protect Your Components, Perfect Your Edges. We understand that modern electronics demand zero-defect manufacturing.

• Zero Board Movement: Unlike traditional push-through separators, our moving blade design means the PCB never shifts, eliminating the risk of micro-cracks or hidden damage.
• Superior Edge Quality: The shearing action of the circular blade produces exceptionally smooth edges without burrs or dust, often removing the need for secondary cleaning processes.
• Global Standard Compliance: Designed and manufactured to meet strict international quality and safety standards (CE/RoHS compliant), making it a trusted choice for factories across the globe.
• Excellent After-Sales Support: We provide comprehensive English operation manuals, video tutorials, and responsive online technical support to keep your production running smoothly.

Packaging, Shipping & Support

• Packaging: Standard export wooden case with anti-collision foam protection to ensure safe global delivery.
• Lead Time: 7-10 days for standard models; 10-15 days for customized orders.
• Global Shipping: We support FOB, CIF, and DDP shipping terms. Fast and reliable logistics available to international markets.
• Technical Support: Lifetime online technical support, blade regrinding services, and detailed operation guides provided.

Ready to Upgrade Your PCB Depaneling Process?

Stop risking hidden damage to your valuable circuit boards. Contact us today for a FREE Quote and let us help you achieve perfect, stress-free cuts every time!
