High Precision Selective Auto Conformal Coating Machine With Visual In-line Programming System

Brand Name:	HSTECH
Model Number:	HS-H2
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Selective Conformal Coating Machine

Conveyor Width:

50-450mm(customized Available)

Transmission:

L To R,or R To L

Transport Speed:

0-12000mm/min

Programming Mode:

Manual Teaching

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

Selective conformal coating machine with visual programming

Auto conformal coating machine for precision dispensing

In-line programming glue dispensing machine with warranty

Product Description

High Precision Selective Auto Conformal Coating Machine With Visual In-line Programming System

This automatic conformal coating machine is an intelligent system designed for precise fluid control and selective application to product surfaces. Equipped with a robust 3-axis motion platform as base configuration, it includes both spray and needle dispensing valves to accurately apply three anti-paints, UV glue, instant glue, silica gel, hot melt adhesive, and other liquids to precise positions on PCBs or products. The machine provides excellent protection for PCBs and products against environmental damage.

Key Components

X,Y,Z axis servo motor driving system
High precision coating valve
Industrial PC control with full English interface
Stable machine structure and solid working platform
50-450mm coating width

Machine Features

Capable of both whole board coating and selective coating applications
Stainless steel machine structure ensures stability without shaking
Servo motor driven, reliable XYZ moving system
Full-featured programming with manual and automatic input of arbitrary track programming mode
Visual in-line programming system supports dot, line, round, and arc path programming
Industrial Personal Computer for high systematic control
Spray and dispensing valves work together, automatically switching between spray and coating actions for high-density PCB coating processes
Effectively and evenly coats component edges, eliminating spray shadow effect
Intelligent auto width adjustment function with conveying width from 50-450mm (customizable)
Automatic cleaning valves and pipe function during standby mode
Optional PCB front and back side detection with automatic program import
SMEMA compatible communication
Internal lighting system equipped
Constant glue feeding function prevents material waste
Significantly improves production efficiency, saves labor, and enhances product precision and quality

Technical Specifications

Parameter	Specification
Product Name	Selective conformal coating machine
Model	HS-H2
Transmission Height	920±20mm
Conveyor Width	50-450mm (customized available)
X/Y/Z Moving Distance	450×450×100mm
3 Axis Drive Speed	800mm/s
Transmission	L to R, or R to L
Component Height	Up and down max 100mm
Size of PCB Board Edge	≥5mm
Transport Speed	0-12000mm/min
Repeat Accuracy	±0.02mm
Storage Programs	Up to 1000
Power Supply	AC220V
Air Pressure	4-6kgf/cm²
Control Mode	Industrial PC + Motion control card
Linear Guide Adjustment	Intelligent adjust
Programming Mode	Manual teaching
Communication Port	SMEMA
Lighting Source	Self-equipped lighting source
Detection Lighting Source	Self-equipped
Software	Windows + coating software
Driving Motor	Stepper motor (2pcs)
3 Axis Driving Mode	Servo motor + screw driver module + Electric Cylinder
Number of Rubber Valves	1 spraying valve + 1 needle dispensing valve
Spray Film Width	5-15mm
Spraying Method	Automatic
Total Power	2.4kW
Machine Body	Stainless steel
Machine Weight	450kg
Machine Dimension	1000×1200×1766mm

Applications

This machine is widely used for coating electrical and communication products, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screens, speakers, headphones, audio equipment, LED components, optical lenses, SMD transformers, keypads, mobile phone casing bonding, radios, telephones, computers, MP4 players, electronic toys, chassis bonding, switches, connectors, and various other electronic components.

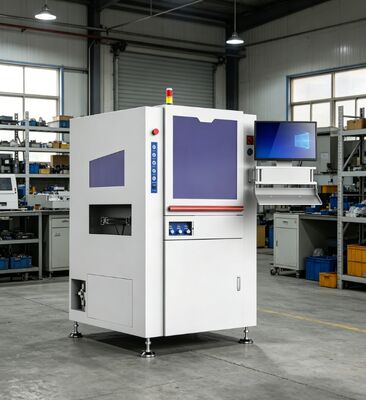

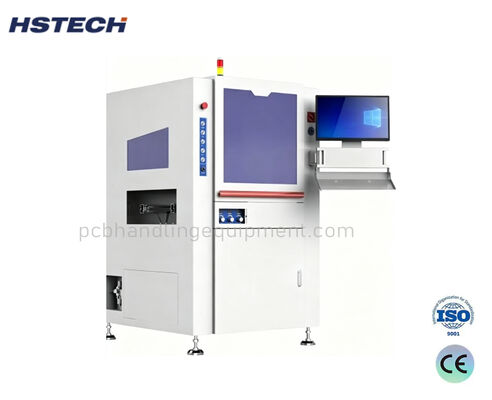

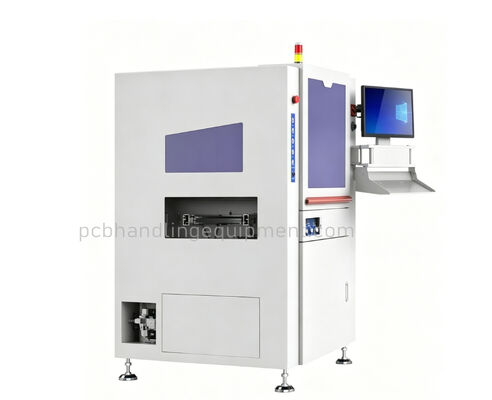

Product Images
