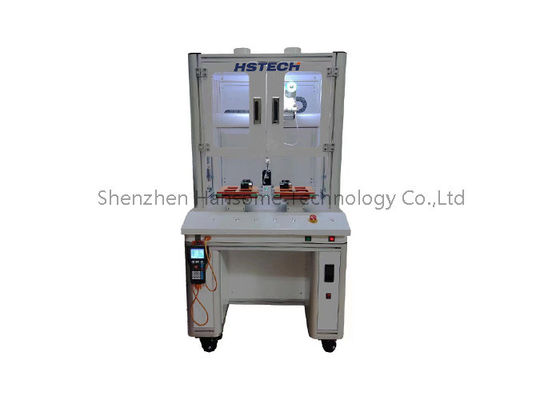

SMT Back-end Automatic Soldering Robot LED Strip Light Reflow Wave Soldering Machine

Welcome to explore our high-performance Grounding Robotic Soldering Machine, a professional automatic soldering equipment designed for precision grounding soldering in electronic manufacturing, SMT backend process, PCB assembly, and various industrial production scenarios. As a reliable Grounding Robot Soldering Equipment, it integrates intelligent control, high precision and stable performance, perfectly solving the drawbacks of low efficiency, uneven soldering and high error rate of traditional manual grounding soldering, and becoming an essential core equipment for your production line to improve quality and reduce costs.

Our Grounding Robotic Soldering Machine is specially developed for grounding soldering tasks in electronic manufacturing, focusing on solving the core needs of precise grounding connection, stable soldering quality and high production efficiency. Different from ordinary soldering robots, this Grounding Robotic Soldering Equipment is optimized for grounding soldering processes, with customized soldering parameters and precise positioning system, which can accurately complete grounding point soldering, line soldering and other operations. It is widely applicable to PCB board ground soldering, electronic component grounding, wire harness grounding, connector ground soldering and SMT backend process soldering, fully adapting to the high-volume, high-precision production needs of modern electronic factories.

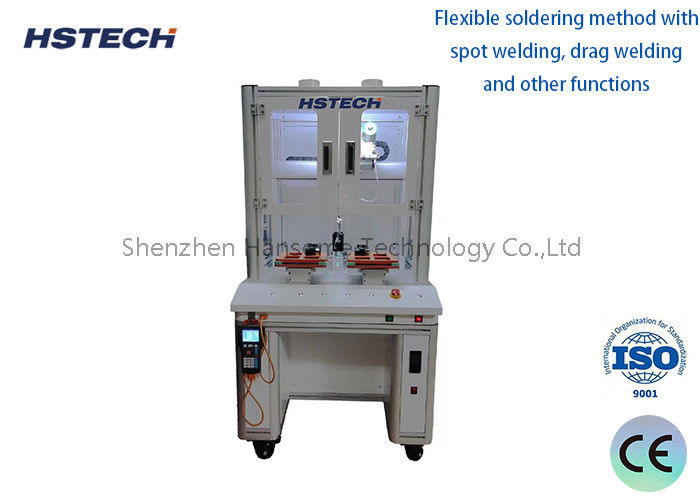

• Flexible soldering method with spot welding, drag welding and other functions;
• The mechanical arm of the equipment is aluminum profile, no deformation, no rust, stable operation;
• The device writing work program can perform point-to-point, point-to-block copying and shorten the programming time;
• The device has an automatic cleaning function;
• Multiple axis linkage robots, all driven by precision stepping motors.

Unmatched Precision & Consistency
Equipped with advanced motion control algorithms and high-resolution sensors, our robotic arm achieves a repeat positioning accuracy of ±0.02mm. Whether performing drag soldering, dip soldering, or precise point-to-point soldering, the machine ensures every joint meets the highest IPC standards, drastically reducing defect rates.

Intelligent Adaptive Soldering (Smart Grounding)
Unlike traditional machines, our system features adaptive force and position control. It intelligently detects component height variations and soldering pad positions, automatically adjusting the soldering iron's posture and pressure. This "smart grounding" capability prevents damage to sensitive pads and ensures perfect solder wetting, even on uneven surfaces.

ESD-Safe & Grounded Design
Safety is paramount in electronics manufacturing. Our machine is built with a fully grounded chassis and ESD-safe materials, effectively preventing electrostatic discharge that could damage sensitive components like ICs and LEDs. It is the ideal solution for assembling high-value consumer electronics and automotive parts.

User-Friendly & Flexible Deployment
No complex programming required. With our intuitive Teach Pendant and Drag-to-Teach functionality, operators can set up new soldering paths in minutes. The system supports offline programming and quick model changeovers, making it perfect for high-mix, low-volume production environments.

• High-Speed Efficiency: Multi-axis robotic arm with rapid joint speeds (up to 336°/s), significantly boosting throughput compared to manual labor.
• Dual System Compatibility: Supports both wired and wireless teaching modes, compatible with various OS platforms for seamless operation.
• Process Versatility: Capable of handling various soldering techniques including drag soldering, spot soldering, and rework, with programmable temperature and solder feed speed.
• Robust & Durable: IP67 protection rating (optional) and vibration suppression algorithms ensure stable operation in demanding industrial environments.
• Material Saving: Precise solder wire feeding control reduces solder consumption by 15%-30%, lowering your operational costs.

This robotic soldering station is widely used across various industries requiring high-reliability connections:

• Consumer Electronics: PCB assembly, USB/Type-C connectors, camera modules.
• Automotive Electronics: ECU soldering, sensor assemblies, and wiring harnesses.
• Telecommunications: RF modules, base station components.
• Semiconductor Packaging: Precision soldering of delicate pins and terminals.

Transform your production line with a solution that guarantees quality and efficiency. Contact us today to request a quote or schedule a live demo of our Grounding Robotic Soldering Machine. Let us help you build the future of manufacturing.
