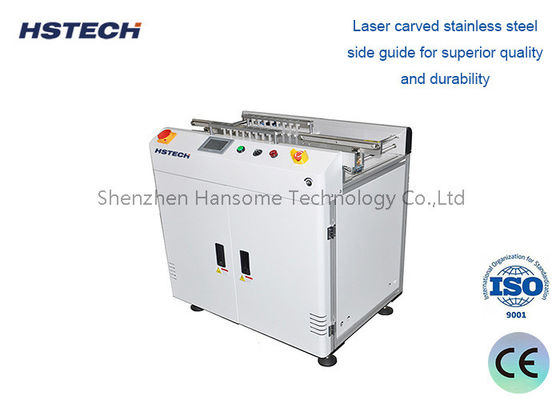

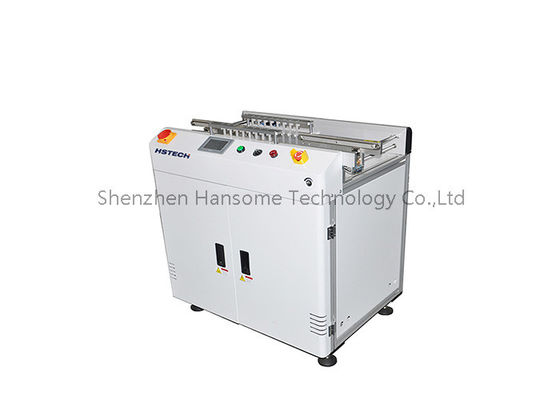

1.5M LED Board Vacuum Loader Machine Panasonic PLC Touch Screen Button Dual Safety Control SMT PCB Vacuum Feeder

The 1.5M LED Board Vacuum Loader is a highly automated PCB feeding system specifically designed for high-speed SMT production lines and LED manufacturing. Engineered to handle 1.5-meter wide PCBs, this vacuum magazine loader utilizes advanced suction technology to safely and accurately load bare boards from magazines onto the conveyor. It eliminates manual feeding, reduces the risk of board contamination or damage, and ensures a seamless, continuous workflow for your automated assembly line.

• Enclosed design ensure the safety operation.
• The top side machine cover can be opened, easy for maintenance.
• Optional button or touch screen control system.
• Panasonic PLC.
• Flexible suction nozzles positioning.
• Width adjustment available(Manual)
• Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
• By-pass mode selectable without removing PCB stack.
• SMEMA communication.

This 1.5M LED Board Vacuum Loader is widely used in automated SMT assembly lines for long-size LED lighting boards, LED display panels, flexible LED circuits and large-size industrial PCBs. It is suitable for mass production and batch processing of LED lighting manufacturers, display screen factories and electronic manufacturing workshops, perfectly matching the front-end feeding process of standard SMT production lines.

• Robust Construction: Built with premium aluminum profiles and industrial-grade components for 24/7 durability.
• Customization Support: We offer tailored solutions for special PCB sizes, magazine dimensions, and conveyor heights.
• Reliable After-Sales Service: Comprehensive technical support, operation manuals, and readily available spare parts to minimize downtime.

Upgrade your SMT line efficiency today. Contact us for a customized quote or a video demonstration of our 1.5M LED Board Vacuum Loader in action. Let us help you achieve smarter, faster, and safer PCB manufacturing.
