4 Cooler Groups PCB Buffer With SMEMA Compatible For Buffering PCBs And SMT Production Line

Brand Name:	HSTECH
Model Number:	HS-460ULD
MOQ:	1 PC
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

PCB Buffer Machine

PCB Dimension:

L(50*50)-(350*250)Mm

Machine Size:

1610*1620*1600mm

Product Category:

PCB Handling Equipment

Air Supply:

4-6bar,Max 15L/Min

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

SMEMA compatible PCB buffer

4 cooler groups PCB buffer

SMT production line PCB buffer

Product Description

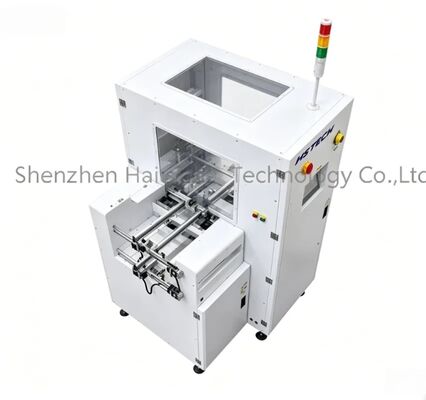

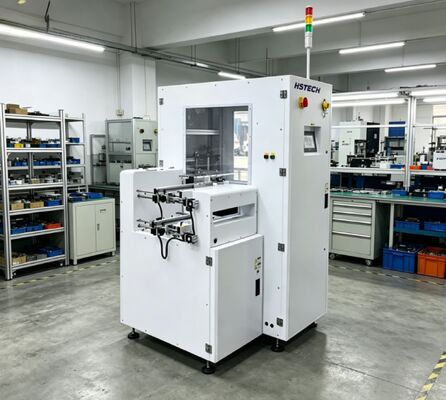

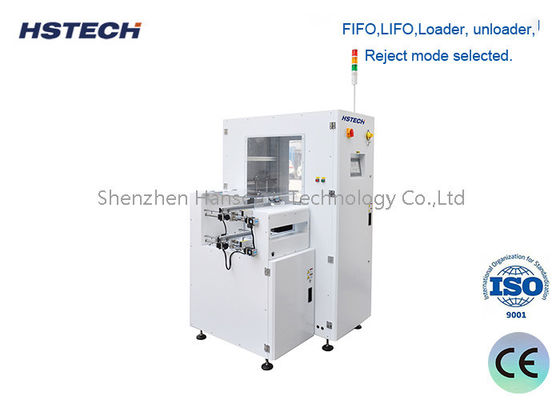

SMEMA Compatible PCB Buffer Machine

Threshold System's SMEMA-Compatible PCB Buffer Machine is engineered for PCB buffering and temporary storage on SMT assembly lines. With 4 independent cooler groups, this equipment maintains optimal PCB processing temperatures during conveying and buffering operations, stabilizing the production environment and significantly enhancing overall line efficiency.

Core Features

Full Product Name: Threshold System Provided SMEMA Compatible PCB Buffer Machine
Main Body Material: Stainless Steel
Cooling Configuration: 4 Groups of Independent Coolers
Maximum PCB Storage Capacity: 25 Pieces
Power Supply: 220V, 50/60Hz, ±10% Voltage Tolerance
Fully Automated Circuit Board Conveying & Handling Equipment
SMEMA Standard Compliant Automatic PCB Handler
High-efficiency PCB Circulation & Buffering System

Technical Specifications

Parameter Item	Specification
Product Name	Threshold System Provided SMEMA Compatible PCB Buffer Machine
Product Category	PCB Automated Handling Equipment
Primary Application	PCB Buffering & Temporary Storage on SMT Production Lines
Conveying Direction	Left to Right (L→R) / Right to Left (R→L), Switchable
Net Weight	300kg
Transport Working Height	910±20mm (Matches Standard Height of Most SMT Machines)
Max PCB Stock Capacity	25 Pieces
Cooling System	4 Cooler Groups
Air Supply Requirement	4-6 bar, Max Air Consumption 15L/min
Official Warranty	1 Full Year

Key Advantages

Universal SMEMA Interoperability

Complies with global SMEMA communication protocol for seamless integration with printers, mounters, reflow ovens, AOI machines, and other SMT equipment.

4 Independent Coolers

Maintains constant PCB temperature control to prevent thermal oxidation and deformation, ideal for precision thin PCBs and FPC flexible circuits.

Large Storage Capacity

25 PCB maximum capacity balances uneven line cycle times and eliminates bottlenecks for continuous non-stop production.

Corrosion-resistant Construction

Stainless steel frame resists flux corrosion, workshop dust, and oil contamination for easy cleaning and extended service life.

Bidirectional Conveying

Switchable L→R and R→L transport directions provide flexible workshop layout options without rearranging entire production lines.

Wide Voltage Tolerance & Low Air Consumption

220V with ±10% fluctuation tolerance and low 15L/min max air consumption ensures stable operation without extra air boosters.

Heavy Stable Frame

300kg weight guarantees stable operation without shaking, preventing PCB shifting and surface scratching during transport.

1-Year Comprehensive Warranty

Full manufacturer warranty covering core transmission, cooling, and electrical control components with fast failure response.

Applicable Industries & Production Scenarios

Consumer electronics mainboard SMT assembly lines
Precision automotive electronics PCB manufacturing workshops
Industrial control boards, power supply boards & new energy circuit board production
FPC flexible circuit and ultra-thin PCB automated assembly lines
EMS electronics contract manufacturing factories with mass production
Medical device precision circuit board assembly workshops
