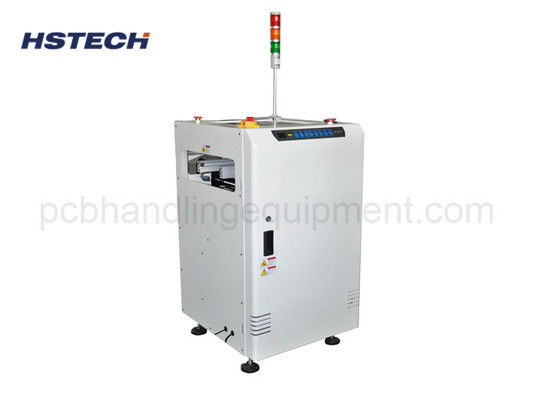

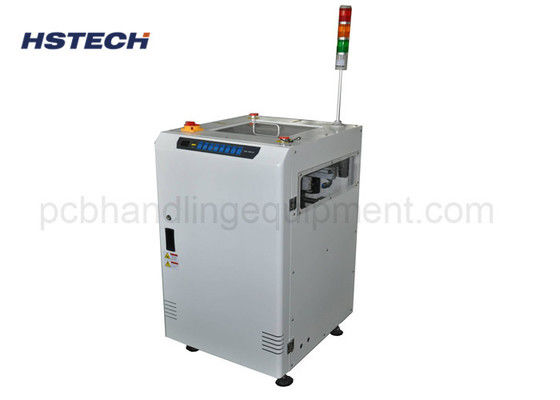

Enclosed Design PCB Turn Conveyor SMEMA Compatible PCB Handling Equipment

The PCB Turn Conveyor is a professional and essential PCB handling equipment designed exclusively for modern SMT assembly lines and electronic manufacturing production processes. Also known as PCB turning conveyor or PCB rotation conveyor, this automatic PCB transfer device realizes 90-degree or 180-degree stable turning and seamless transmission of printed circuit boards, solving the line layout conversion and direction switching problems in automated production. Our enclosed PCB turn conveyor fully complies with SMEMA standard interface, which can be perfectly docked with all mainstream SMT production equipment, including solder paste printers, placement machines, reflow ovens and AOI inspection machines. As a core SMT conveyor device, it realizes fully automated PCB transmission without manual intervention, effectively connecting each production station and improving the overall automation level of the PCB assembly line.

Streamline your Surface Mount Technology (SMT) production line with our high-precision PCB Turn Conveyor. Designed for modern electronics manufacturing, this automated handling system seamlessly redirects PCB flow, enabling smooth 90°, 180°, or 270° directional changes. Acting as a critical link between different assembly stages, our PCB rotation conveyor ensures continuous, uninterrupted material flow while minimizing transmission gaps. Whether you need a standard right-angle turn or a complex bypass routing, this versatile SMT turning conveyor adapts to your production layout, significantly reducing manual handling and operational errors.

1. Enclosed design with built-in torque limiter ensure high level of safety.
2. Top safe cover can be opened for each access to hardware during Maintenance.

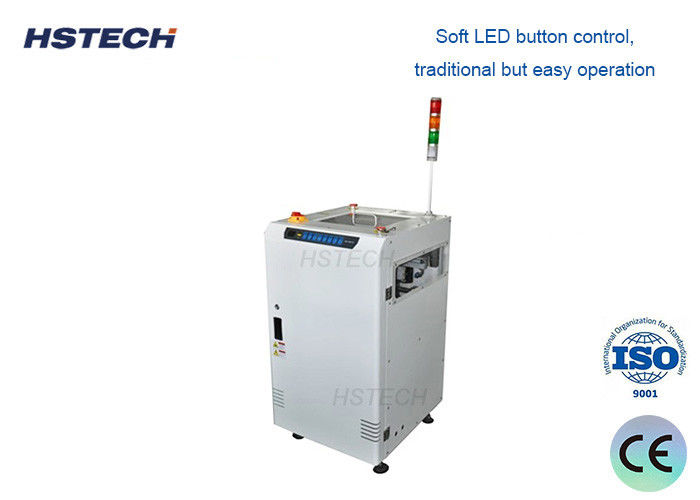

3. Use friendly control button.
4. Smooth and precise rotation.
5. Minimize the transfer gap between conveyors.
6. PCB traffic flows can be customized.
7. Smooth and parallel width adjustment(lead screw).
8. SMEMA compatible.

• Intelligent PLC Control: Equipped with advanced Omron/Mitsubishi PLC and a user-friendly LCD touch screen, ensuring precise positioning and effortless operation.
• Universal Compatibility: Fully SMEMA compatible with optional IPC Hermes and Ethernet TCP/IP communication for seamless integration with upstream and downstream SMT equipment.
• Enhanced Safety & Durability: Features a robust steel frame structure with an enclosed safety shield and a built-in torque limiter to protect both operators and delicate PCB components.
• Flexible Routing Options: Supports multiple turning functions (Pass-through / 90° / 180° / 270°) and selectable bypass modes to accommodate complex factory floor layouts.
• Precision Width Adjustment: Offers smooth, parallel width adjustment (manual hand crank or motorized options) to accommodate various PCB sizes without jamming.
• High-Speed Transfer: Variable speed control (0~800mm/min) ensures synchronized transport, preventing bottlenecks and maintaining optimal line efficiency.

• Transmission mechanism: such as belts or rollers, used to carry and move PCBs.
• Rotating mechanism: Utilizes driving components such as motors or cylinders to perform 180-degree flips.
• Sensor: detects PCB position information to ensure accurate rotation.
• PLC control system: programming to realize automatic control and data monitoring.
• Safety protection devices: such as light grids, emergency stop switches, etc.

• Line Layout Optimization: Redirecting PCB flow around corners or connecting parallel production lines.
• Automated Optical Inspection (AOI): Routing boards into and out of inspection stations or rejecting NG boards.
• Multi-Stage Assembly: Transferring PCBs between solder paste printers, pick-and-place machines, and reflow ovens.
• Buffering & Shuttle Transfer: Acting as a temporary buffer or shuttle unit to balance cycle times between different workstations.
• Dual-Side Processing: Working in tandem with PCB flipper conveyors to facilitate double-sided SMT assembly.

• Tailored for Global Standards: Engineered to meet international CE certifications and RoHS compliance, ensuring reliable performance in diverse manufacturing environments.
• Modular & Customizable Design: We offer bespoke solutions, including customized dimensions, motorized width adjustment, and specialized belt types (ESD flat belts/round belts) to handle unique PCB geometries.
• Industry-Leading Reliability: Backed by years of expertise in SMT peripheral equipment, our conveyors are built with premium components like planetary reducers and closed-loop stepper motors for long-lasting, low-maintenance operation.
• End-to-End Line Solutions: Beyond single units, we provide comprehensive SMT line integration, including PCB loaders/unloaders, buffer stockers, and inspection conveyors, to maximize your factory's overall throughput.

Upgrade your manufacturing efficiency and reduce labor costs with our state-of-the-art PCB Turn Conveyor. Whether you are expanding an existing SMT line or building a new automated facility, our intelligent handling solutions are ready to meet your demands.

Contact us today for a customized quote, technical consultation, or to request a product demonstration. Let us help you build a smarter, faster, and more reliable production line!
