High Efficiency 90° 180° PCB Turn Conveyor Direction Change With 3 Color Tower Light

Name: High Efficiency 90° 180° PCB Turn Conveyor Direction Change With 3 Color Tower Light
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-SZ350
Price: 85.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-SZ350
MOQ:	1 PC
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

PCB Turn Conveyor

Power Supply:

AC100-230V

Turn Degree:

90 Degree, 180degree, 270degree

Signal:

SMEMA

Contol:

Touch Screen

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

90° 180° PCB turn conveyor

PCB direction change conveyor with tower light

high efficiency PCB handling equipment

Product Description

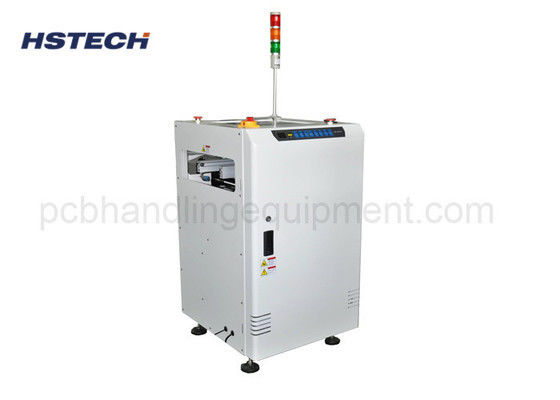

SMT 90°/180° PCB Turn Conveyor with 3-Color Tower Light

The SMT Flow Direction Change PCB Turn Conveyor is a specialized automated transfer device designed for SMT assembly production lines, supporting 90°, 180°, and 270° PCB direction redirection. Equipped with a standard 3-color tower light for real-time machine status indication, this rotary conveyor seamlessly connects front and rear SMT equipment, enabling flexible PCB circuit board flow switching on fully automated production lines.

Core Product Features

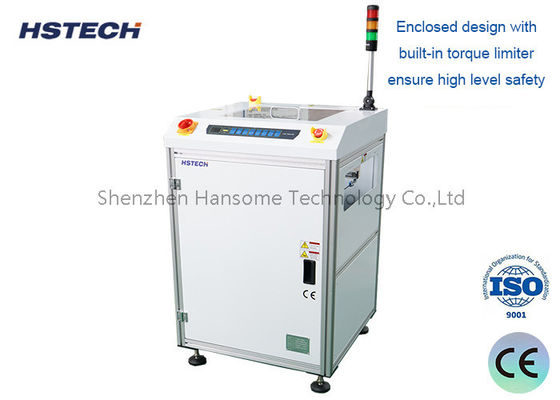

Fully Enclosed Safety Structure: Sealed enclosure design with built-in torque limiter prevents mechanical overloading and PCB crushing during rotation
Quick-Open Top Safety Cover: Full access to internal components for easy maintenance and reduced downtime

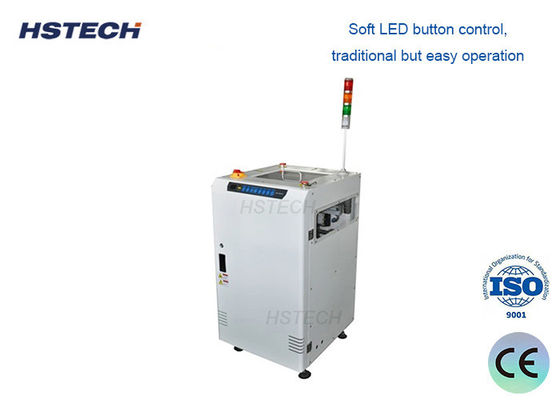

User-Friendly Physical Control Buttons: Intuitive side panel controls for start, stop, reset, and emergency operations
High-Precision Rotary Mechanism: Precision bearing and servo-driven assembly ensures stable, vibration-free rotation
Minimized Transfer Gap: Optimized roller docking eliminates PCB edge jamming and board tilting
Customizable Traffic Flow Logic: Programmable signal delay, transfer sequence, and turn angle trigger modes
Parallel Lead Screw Width Adjustment: Dual lead screw system maintains perfect horizontal parallelism
SMEMA Communication Compatibility: Standard interface for seamless integration with all mainstream SMT equipment

Technical Specifications

Parameter	Details
Core Function	Redirect PCB flow direction; support 90°, 180°, 270° turning angles
Standard Transport Height	910±20mm (matches global SMT equipment standards)
Conveying Direction	Left to Right / Right to Left bidirectional support
Standard Cycle Time	Approx. 5 seconds per full turn cycle
Power Supply	AC 100-230V, single phase, 50/60Hz universal voltage
Working Air Pressure	4-6 bar compressed air supply
Maximum Air Consumption	10L/min under full-load continuous operation
Minimum PCB Thickness	0.4mm (supports ultra-thin flexible & rigid circuit boards)
Communication Signal	SMEMA industry standard signal interface

Standard Model Options

Model HS-SZ350

PCB Processing Size: 50×50 - 450×350 mm
Machine Dimension: 700×750×1200 mm
Net Weight: 150 kg
Applications: Mobile phone boards, sensor modules, wearable electronics, small control circuit panels. Compact footprint ideal for limited workshop space.

Model HS-SZ460

PCB Processing Size: 50×50 - 550×460 mm
Machine Dimension: 840×890×1200 mm
Net Weight: 180 kg
Applications: Automotive control boards, power supply motherboards, industrial main control boards, large LED driver panels. Higher load capacity for heavy multi-layer circuit boards.

Application Scenarios

• Full automatic SMT patch production lines
• PCB post-reflow directional transfer & line layout turning
• AOI, SPI, X-Ray inspection station line connection
• Automotive electronics, consumer electronics, medical device circuit assembly
• Intelligent home appliance control board manufacturing workshops
• Unmanned dark factory automated PCB logistics transmission

Product Advantages & Customer Benefits

Reduce PCB Scrap Rate: Precision rotation and narrow transfer gap avoid board damage and component loss
Lower Labor Dependence: SMEMA linkage enables fully automatic operation without manual handling
Flexible Line Layout: Multi-angle turning capability optimizes factory space utilization
Low Maintenance Cost: Quick-open cover design simplifies daily upkeep and reduces downtime
Global Compatibility: Wide voltage power supply and standard SMEMA signal support international markets
High Safety Standard: Torque limiter and enclosed housing prevent safety accidents
