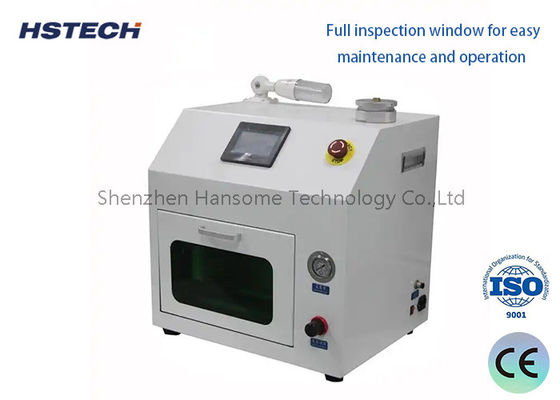

SMT Nozzle Cleaning Equipment Touch Screen SMT Nozzle Cleaner With PLC Distributed Control

The Auto Suction Nozzle Cleaning Machine is a high-efficiency, fully automatic SMT Nozzle Cleaner specially developed for SMT assembly production lines. Adopting advanced atomized high-pressure jet cleaning technology and mature PLC distributed control system, this automatic nozzle cleaning equipment effectively removes stubborn solder paste, dust, glue residue and tiny impurities on all types of SMT suction nozzles. Equipped with a user-friendly touch screen operation system, it realizes one-key automatic cleaning, rinsing and drying processes, completely replacing traditional manual cleaning and outdated single ultrasonic cleaning methods. As core SMT production line equipment, it delivers full-automatic, high-precision and low-consumption nozzle cleaning solutions to ensure long-term stable operation of SMT pick-and-place equipment.

By breaking up the water, extremely fine water mist is produced, which is sprayed onto the suction nozzle with powerful kinetic energy at supersonic speed, forming a continuous energy field above the suction nozzle to be cleaned, crushing dirt on the surface and inside. Independent cleaning, no damage to the suction nozzle. Using this device for daily nozzle maintenance and cleaning work can achieve a thorough cleaning effect in a safe state. It reduces the scrapping cost of nozzles caused by traditional cleaning methods, extends the life of nozzles, and plays a vital role in the maintenance of the placement machine to ensure that the placement machine operates in a better condition.

1. Completely solve the dirt and impurities that are difficult to clean with ultrasonic waves;
2. It will not be cleaned due to the smaller and smaller suction nozzle hole diameter;
3. More thorough cleaning directly extends the life of the nozzle;
4. No damage to the nozzle surface coating and reflective plate;
5. Use environmentally friendly deionized water or distilled water for cleaning;
6. Automatic continuous cleaning and automatic drying;
7. The operation is simpler and more convenient;
8. Suitable for various placement machines.

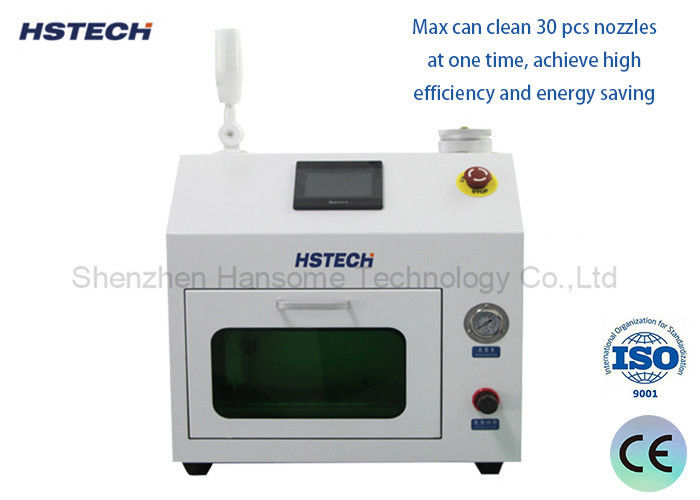

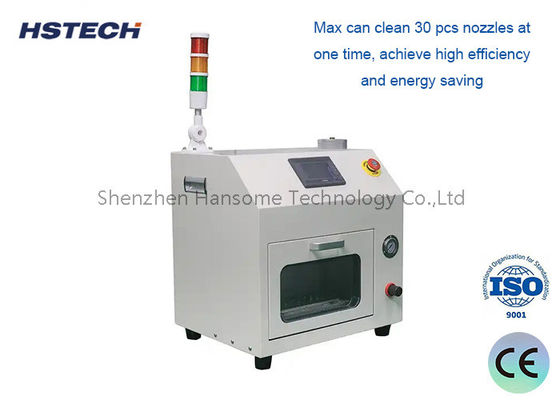

9. Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving

Nozzle Tray

• High-Density SMT Assembly Lines: Ideal for manufacturing smartphones, wearables, and IoT devices where 0201 and smaller components are standard.
• Precision Electronics Manufacturing: Essential for medical devices, automotive electronics, and aerospace components where nozzle contamination directly impacts product reliability.
• Multi-Layer PCB Production: Prevents flux buildup and solder paste residue from causing misalignment on complex, fine-pitch boards.
• Lead-Free Soldering Processes: Critical for maintaining placement accuracy in lead-free assembly, where reduced solder activity offers no margin for error.
• High-Volume Production Environments: Reduces downtime and scrap rates in 24/7 manufacturing operations where nozzle maintenance cannot disrupt throughput.

While generic cleaning equipment may damage delicate nozzles or fail to address internal contamination, our machine is purpose-built for the demands of modern SMT precision. We combine non-destructive atomized mist technology with eco-safe water-based solutions to deliver cleaning performance that manual and ultrasonic methods simply cannot match. Our system directly addresses the root causes of nozzle-related defects—internal blockages and coating damage—while simultaneously reducing operational costs and environmental impact. With automated consistency and compatibility with the smallest component sizes, we provide a future-proof solution that scales with your production needs, ensuring your SMT line operates at peak efficiency without compromising component integrity.

Stop replacing expensive nozzles and battling preventable defects. Our Auto Suction Nozzle Cleaning Machine delivers the precision, safety, and efficiency your high-density SMT line demands. Contact our engineering team today to schedule a live demonstration and discover how we can customize a cleaning solution for your specific nozzle types and production volumes. Let’s discuss how to reduce your nozzle costs by up to 70% while boosting your line’s first-pass yield.
