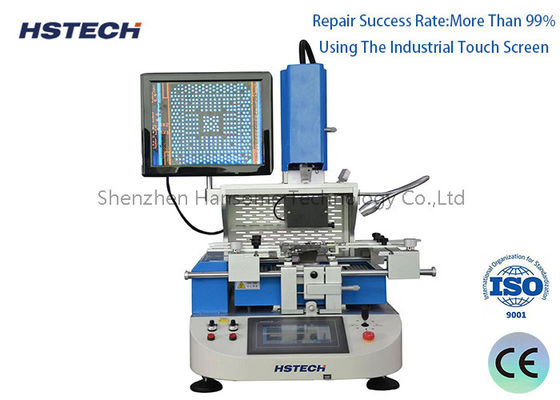

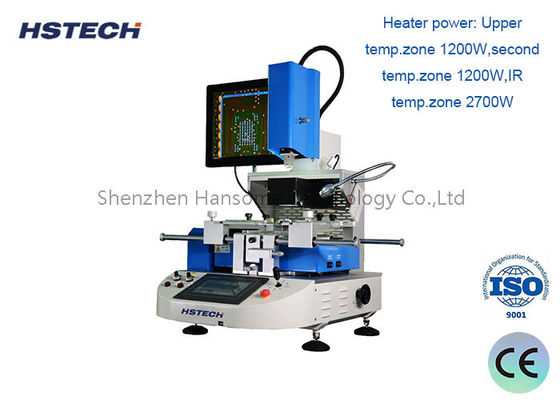

Touch Screen High Speed BGA Rework Station 5 Modes Stepping Motor CCD Optical Alignment 0 01mm Positioning Accuracy

The Manual BGA Rework Station is an advanced, professional-grade repair equipment engineered for the precise removal, placement, and reballing of Ball Grid Array (BGA) components. Designed to meet the rigorous demands of modern electronics manufacturing, this station utilizes a sophisticated "Hot Air + Infrared (IR) Zone Heating" system. By employing independent upper and lower heating modules, the equipment ensures that the entire PCB is evenly preheated before the top heating head concentrates heat on the target chip. This precise thermal management effectively prevents thermal shock, board warpage, and component damage during desoldering and soldering processes. Equipped with an embedded industrial PC and a high-definition touch screen interface, the station allows for real-time temperature curve analysis, giving technicians full control over complex rework tasks with high first-pass success rates.

• Precision Heating System: Uses infrared or hot air to selectively heat BGA components for safe removal and installation
• Component Removal and Placement Tools: Vacuum nozzles and specialized tools for gentle lifting and positioning
• Alignment and Vision Systems: Cameras and software ensure precise BGA component alignment during placement
• Rework Platforms: Secure, temperature-controlled environment for the rework process

• Preparation: Secure PCB on rework platform and prepare area around target BGA component
• Heating: Gradual heating melts solder balls for component removal
• Removal: Careful component lifting without damaging underlying pads or traces
• Cleaning: PCB pad cleaning to remove residual solder or flux
• New Component Placement: Precise alignment and placement with reflow heating

• 5 work modes for versatile operation
• 15" HD LCD monitor for clear visual feedback
• 7" HD color touch screen interface
• Stepping motor for precise control
• CCD color optical alignment system
• Temperature accuracy within ±1℃
• Mounting precision within ±0.01mm
• Repair success rate: 99%+
• Independent research and development of single-chip control

Electronic Motherboard Maintenance

Professional for desoldering soldering and replacement of CPU GPU BGA chips on computer, notebook and desktop motherboards, solving motherboard chip failure, virtual welding and damage problems.

Communication Equipment Repair

Suitable for precision rework of BGA chips on mobile phones, tablet computers, routers and other communication electronic equipment, supporting micro precision component welding and calibration.

SMT Factory Batch Production

Used for batch rework and repair of defective SMT components in electronic production lines, improving product qualification rate and reducing production loss.

Industrial Electronic Maintenance

Applicable to precision maintenance of industrial control boards, automotive electronic circuit boards, medical electronic equipment and other high precision electronic products.

Laboratory and Research Use

Ideal for electronic engineering laboratories, technical schools and research institutions for electronic welding teaching, chip research and precision testing work.

Choosing our Manual BGA Rework Station means investing in a perfect balance of precision, reliability, and cost-effectiveness. Unlike basic hot-air tools, our station offers industrial-grade thermal accuracy with a PID data acquisition frequency of just 10ms, significantly outperforming standard 30ms systems in the market. We provide comprehensive after-sales support, including a 3-year warranty for the heating system and lifelong technical assistance. Our equipment is designed with modularity and operator safety in mind, ensuring minimal downtime and maximum repair efficiency. Backed by CE and ISO9001 certifications, our rework station guarantees consistent, high-quality results that meet international manufacturing standards.

Don't let complex BGA repairs slow down your production or compromise your repair quality. Equip your workshop with a rework station that delivers professional-grade precision and unmatched reliability. Contact us today to request a detailed quotation, schedule a product demonstration, or discuss how our Manual BGA Rework Station can be tailored to your specific manufacturing needs. Let's work together to achieve flawless soldering results and maximize your operational efficiency!
