Pneumatic SMT Stencil Cleaner Side Air Drying Stainless Steel Cabinet For SMT Stencil Cleaning

Pneumatic SMT Stencil Cleaner Side Air Drying Stainless Steel Cabinet For SMT Stencil Cleaning

Brand Name: HSTECH
MOQ: 1PC
Price: Negotation
Payment Terms: T/T
Supply Ability: 50 PC/Month
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Max Solvent Capacity:
40L
Cleaning Time:
2-4min
Best Solvent Usage:
30L
Cleaning Method:
360°rotary Spray Cleaning And High Pressure Air Injection
Machine Dimension:
L1000*W700*H1730(mm)
Cleaning Stencil Size:
L740 × W740 × H40(mm) Or Customized
Packaging Details:
Wooden
Supply Ability:
50 PC/Month
Highlight:

Pneumatic SMT stencil cleaner

,

SMT stencil cleaning cabinet

,

Stainless steel stencil dryer

Product Description
Side Air Drying Design Pneumatic SMT Stencil Cleaner Good Reliability Stainless Steel Cabinet For Solder Paste Stencil Cleaning In SMT Assembly Production Line
Product Overview

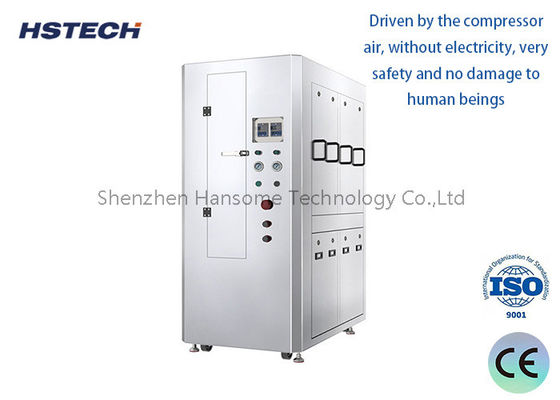

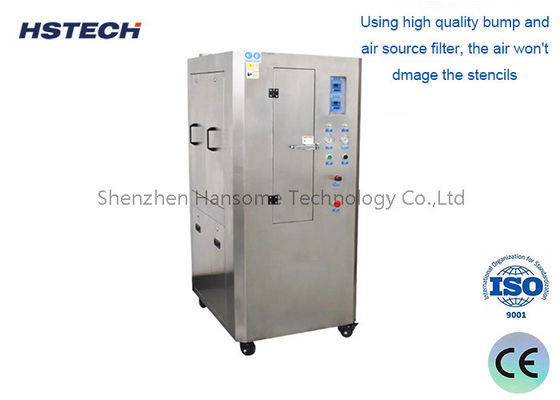

The Pneumatic SMT Stencil Cleaner is a fully air-driven automatic cleaning equipment specially designed for SMT production lines. Different from traditional electric stencil cleaning machines, this pneumatic stencil cleaner runs entirely on compressed air without any electric power connection, realizing safer and more stable stencil residue cleaning. It is professionally used to remove residual solder paste, red glue, flux and micro dust from SMT stencils, thoroughly cleaning ultra-fine mesh holes and surface gaps of steel stencils. Equipped with premium stainless steel cabinet and side air drying design, the Pneumatic SMT Stencil Cleaner completes full-process automatic spraying cleaning, circulating filtration and air drying, effectively restoring stencil flatness and mesh permeability. It is an essential precision maintenance equipment to ensure consistent SMT printing quality and reduce PCB printing defects.

Technical Details
Cleaning stencil size L740 × W740 × H40(mm) or customized
Machine dimension L1000*W700*H1730(mm)
Max solvent capacity 40L
Best solvent usage 30L
Cleaning method 360°rotary spray cleaning and high pressure air injection
Cleaning time 2-4min
Drying time 2-5min
Compressor 0.4~0.6(Mpa)
Air consumption 400~600( L/Min)
Outlet size Φ125×H25(mm)
Filter system-level one 10㎛ (Filter impurities and labels)
Filter system-level two 5㎛ (Filter solder paste and rosin particle)
Filter system-level three 1㎛ (Filter solder paste and rosin particle)
Machine weight 200Kg
Features
  • Used for cleaning solder paste, red gule,flux,etc
  • Stainless steel cabinet with good reliability and can resist any hurt by acid and alkali cleaning chemistry.
  • Completely Pneumatic operating without fire risk, no electricity ,safe.
  • Side air dying design.
  • Humanized design, one button operation and automatic liquid feeding and draining system, easy and convenient.
  • Changeable mode controller and fast plug-in design, convenient maintenance.
  • Three level filter system, also with special design on air exhaust can reduce cleaning chemistry consumption.
  • High precision isobaric double side rotary cleaning nozzle, high cleanliness, steel mesh tension stable.
  • Using globe best quality parts, make sure the quality,stability, and long life-span.
Cleaning object

Stencil , metal mesh,screen print mesh,copper screen,micro screen and Crystal disk

Application Scenarios
  • SMT Production Lines: Routine cleaning of laser-cut and electroformed stencils between changeovers to prevent aperture clogging.
  • Misprint Recovery: Safe and effective removal of solder paste from expensive PCBs, allowing board reuse without damage.
  • Adhesive & Glue Removal: Cleaning of red glue, silver paste, and conformal coating fixtures.
  • Maintenance Workshops: Centralized cleaning station for squeegees, spatulas, and small tooling.
  • High-Mix/Low-Volume Manufacturing: Quick setup and flexible cycle programming ideal for frequent product changeovers.
Why Choose Our Pneumatic Stencil Cleaner?
  1. Lower Total Cost of Ownership (TCO): No expensive electric pumps to replace; fewer moving parts mean less downtime and lower spare parts inventory.
  2. Global Voltage Compatibility: Minimal electrical dependency eliminates voltage mismatch issues across different regions—simply connect your existing compressed air line.
  3. Proven Reliability: Trusted by Tier-1 EMS providers worldwide for consistent performance in high-humidity and high-temperature environments.
  4. Responsive Technical Support: Comprehensive English documentation, video troubleshooting guides, and remote diagnostics ensure minimal disruption to your production.
  5. Flexible Customization: From tank size to nozzle configuration, we adapt the machine to your specific process requirements rather than forcing a one-size-fits-all solution.
Ready to Optimize Your SMT Printing Process?

Don’t let dirty stencils compromise your yield. Contact us today for a free consultation, detailed quotation, or to schedule a live video demonstration. Our engineering team is ready to help you select the perfect configuration for your production needs.
