High Quality Multifunction Vertical PCB Buffer For SMT Line SMEMA Signal AOI SPI NG Buffer

High Quality Multifunction Vertical PCB Buffer Conveyor For SMT Production Line With SMEMA Signal Support AOI SPI NG PCB Storage

Product Introduction

The Multifunction Vertical PCB Buffer is a high-performance intelligent SMT buffer equipment specially developed for automated SMT production lines. As a core PCB handling device, it solves common production line problems such as unbalanced production rhythm, PCB board accumulation, equipment standby and line downtime caused by beat differences between front and rear SMT processes. This SMT vertical buffer features a vertical layered storage structure and multi-functional operating modes, supporting automatic PCB temporary storage, buffering, sorting and transit transmission. Fully compatible with standard SMEMA signal communication, the PCB buffer conveyor can seamlessly dock with mainstream SMT equipment including AOI, SPI, reflow oven and pick-and-place machines. Adopting industrial PLC intelligent control and humanized touch screen operation, this automated PCB buffer realizes unmanned continuous operation, effectively improving the overall automation level and production throughput of SMT assembly lines.

1. Panasonic PLC control.

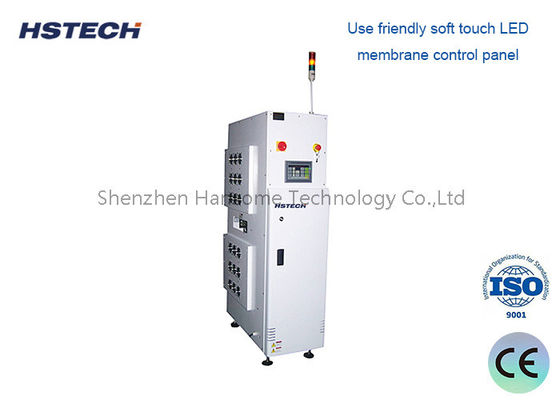

2. Smart touch screen control panel.
3. With FIFO and By-pass function, or cutomized to multiple function.
4. Using servo motor for accuracy positioning.
5. Hiwin leadscrew for width adjustment, smooth and stable.
6. Smooth magazine lifting device, precision servo driving.

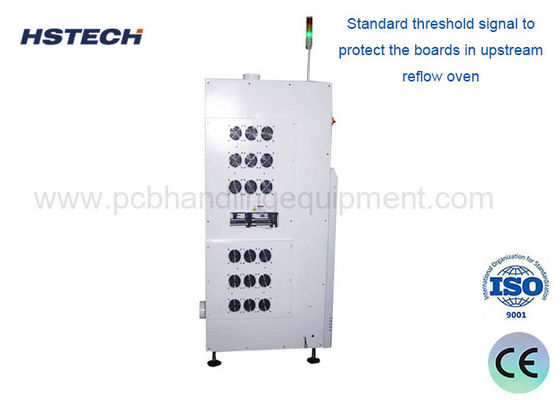

7. Optional fan and exhaust port for heat dessipation.
8. English operation interface.
9. The whole machine is small volume, won't take much factory space.

Application Scenarios

• SMT Line Buffering: Placed between machines with different cycle times (e.g., between a high-speed pick-and-place and a slower AOI) to absorb fluctuations and prevent line stoppages.
• Post-Reflow Cooling: Positioned immediately after the reflow oven to hold and actively cool PCBs before they enter the AOI or wave soldering stage.
• AOI/SPI Sorting Station: Installed after automated optical inspection to automatically segregate NG boards for rework and buffer OK boards for continuous downstream processing.
• Line Extension & Bypass: Used to temporarily store boards during maintenance, changeovers, or when downstream equipment is paused.

• Why Choose Our Multifunction Vertical PCB Buffer

  • Professional SMT Process Customization: We focus on SMT PCB handling equipment R&D and manufacturing for years, deeply grasping the beat matching and buffering demands of automated production lines. Our vertical PCB buffer is professionally optimized for SMT inline operation, with higher compatibility and operational stability than ordinary buffer equipment.
  • Powerful Multifunctional Compatibility: Integrating multiple working modes and supporting SMEMA universal protocol, this PCB buffer conveyor can adapt to diverse production scenarios and different line configurations. It realizes one machine for multiple purposes, greatly improving production line flexibility and reducing equipment procurement costs.
  • Rigorous Quality Control & High Stability: All products adopt industrial-grade accessories and standardized production processes, with strict factory testing on transmission accuracy, anti-static performance and continuous operation stability. The equipment features long service life, low failure rate and stable long-term operation.
  • Global Standard Adaptation: The equipment supports multi-voltage adaptation, multi-language system and international electronic manufacturing safety standards, fully meeting the production and use requirements of global electronic manufacturing enterprises, with strong universal applicability.
  • Complete Technical & After-Sales Support: We provide one-stop services including equipment installation guidance, operational training, technical debugging and long-term after-sales maintenance. Professional technical support ensures quick equipment commissioning and stable production line operation for customers.

  Ready to Upgrade Your SMT Line?

  Don't let buffering bottlenecks slow down your production. Whether you need a standard vertical buffer, an NG/OK sorter, or a cooling station, we have the perfect solution for your facility.

  Contact us today for a free consultation, custom configuration quote, or to request a product brochure. Let our experts help you design the most efficient SMT line layout for your specific needs!
