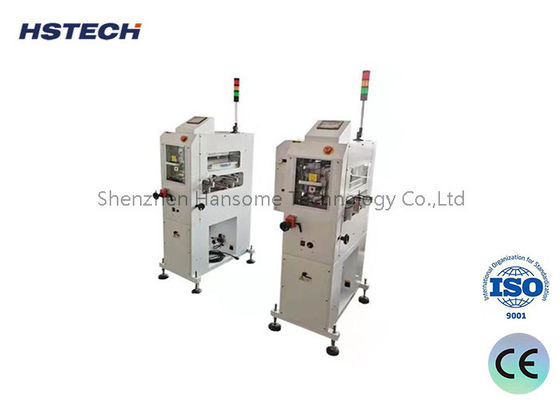

High Precision Brush PCB Surface Dust Cleaner Stainless Steel For SMT Line

High Precision Brush PCB Surface Dust Cleaner PCB Handling Equipment With Stainless Steel Material Ion Air For SMT Line Pre AOI SPI Cleaning

Product Introduction

The PCB Surface Dust Cleaner is a professional inline PCB cleaning equipment designed for modern SMT automated production lines. It is specially developed to remove micro dust, fine particles, lint, static attachments and surface contaminants on printed circuit boards before inspection and soldering processes. This high-precision PCB dust cleaner combines physical brush cleaning and static elimination technology, achieving thorough surface cleaning without scratching PCB pads, solder masks and sensitive components. As essential PCB handling equipment for SMT production, the PCB Surface Dust Cleaner effectively solves common manufacturing problems such as AOI false detection, SPI detection error, solder joint defects and product yield loss caused by surface dust pollution. Featuring full stainless steel structure, stable inline transmission and intelligent operation system, the machine supports 24-hour continuous inline cleaning to ensure consistent PCB surface cleanliness for mass electronic production.

Working principle:
PCB surface dust collectors usually use electrostatic adsorption or airflow blowing to remove dust particles on the PCB surface.
Electrostatic dust collectors use the adsorption effect of the electrostatic field, while airflow dust collectors use compressed air to blow the PCB surface.

Main features:
Efficient cleaning: It can quickly and effectively remove tiny dust and impurities on the PCB surface.
Controllable cleaning degree: The cleaning intensity can be adjusted to meet the cleaning needs of different PCBs.
Non-destructive cleaning: It will not cause any damage to the surface and internal structure of the PCB.
Environmentally friendly: Some models use oil-free lubrication technology to reduce secondary pollution.

Application scenarios:
PCB manufacturing link: Surface cleaning after PCB printing, drilling, tinning and other processes.
PCB assembly process: Surface pre-cleaning before patch and reflow soldering.
Repair and rework: perform local surface cleaning on assembled PCBs.

Purchase suggestions:
Pay attention to cleaning efficiency and cleanliness parameters
Choose the appropriate equipment model according to the size and quantity of PCBs
Consider whether automation or continuous operation is required
Pay attention to environmental factors such as power supply and noise

Features

1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.

Specification

Application Scenarios

• Pre-Solder Paste Printing: Installed directly before the screen printer to ensure zero contamination on solder pads, preventing printing defects and rework.
• Pre-Adhesive Dispensing: Cleans PCB surfaces before glue application to ensure strong adhesion and prevent component shifting.
• Post-Drilling/Routing: Removes copper shavings, fiberglass dust, and burrs generated during mechanical PCB processing.
• Pre-AOI/Testing: Ensures optical inspection accuracy by removing surface particles that could cause false defect readings.

Why Choose Our PCB Surface Dust Cleaner?

• Proven SMT Expertise: Backed by years of specialized experience in SMT surface cleaning technology, trusted by leading international manufacturing facilities worldwide.
• Superior Component Quality: Built with industrial-grade motors, precision bearings, and high-efficiency vacuum systems to guarantee 24/7 stable operation.
• Customizable Solutions: We offer tailored configurations, including dual-sided cleaning and specialized brush materials, to meet the unique requirements of your production process.
• Global Service & Support: Comprehensive documentation, responsive technical support, and readily available spare parts ensure minimal downtime for our international clients.

Ready to Elevate Your PCB Quality?

Don't let microscopic dust compromise your manufacturing yield. Upgrade your SMT line with our reliable PCB Surface Dust Cleaner and experience the difference in print quality and product reliability.

Contact us today for a customized cleaning solution, detailed specifications, or a competitive quote. Let our experts help you achieve flawless PCB preparation!
