Smooth Precise Rotation PCB Inverter PCB Flipper SMEMA Compatible For SMT Line

Smooth And Precise Rotation PCB Inverter PCB Flipper With SMEMA Compatible For Printed Circuit Board Turning In SMT Assembly Production Line

Product Introduction

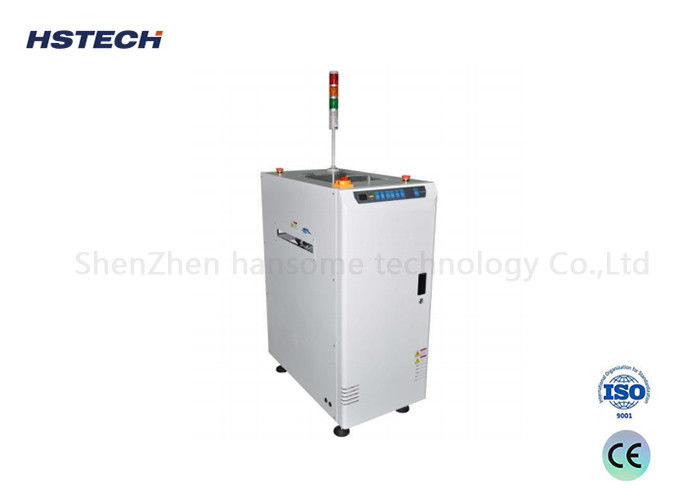

The PCB Flipper Inverter is a fully automatic PCB board turning and rotating equipment designed for standard SMT assembly lines. As a core PCB flipper and PCB inverter machine, it is widely used to flip and reverse printed circuit boards smoothly during inline production. This PCB turning machine supports seamless connection with upstream and downstream SMT equipment with full SMEMA compatible design, realizing automatic board flipping without manual operation. The machine delivers stable and precise board rotation, effectively protecting PCB boards from scratching, bending and contamination. Ideal for double sided PCB processing, the SMT PCB flipper greatly improves production continuity and automation level for electronic manufacturing lines.

Features

1, Enclosed design with built-in torque limiter ensure high level of safety.

2, Top safe cover can be opened for each access to hardware during Maintenance.

3, Use friendly control button,optional use touch screen.

4, Smooth and precise rotation.

5, By-pass model provided.

6, Minimize the transfer gap between conveyors.

7, PCB traffic flows can be customized.

8, Smooth and parallel width adjustment(lead screw).

9, SMEMA compatible.

Functionality

• Inversion of PCBs: The primary function is to flip or invert PCBs to allow for assembly on both sides. This is essential in multi-layer PCB production where components need to be placed on both sides of the board.
• Alignment and Positioning: Many machines come equipped with mechanisms to ensure that PCBs are aligned correctly during the inversion process, which is critical for accurate component placement.

Key Features

• Automated Operation: Many PCB inverter machines are automated, reducing the need for manual handling and improving efficiency.
• Adjustable Parameters: Operators can often adjust settings such as speed and height to accommodate different PCB sizes and designs.
• User-Friendly Interface: Modern machines typically feature touchscreen controls for easy operation and monitoring.

Applications

• Electronics Manufacturing: Widely used in the production of consumer electronics, automotive components, and communication devices.
• Prototype Development: Useful for quickly assembling prototype PCBs that require components on both sides.

Typical Applications

• Double-sided SMT assembly lines requiring mid-line board inversion
• AOI or SPI systems needing consistent PCB orientation
• Reflow soldering lines with top/bottom component placement
• Electronics manufacturers producing LED modules, automotive ECUs, consumer electronics, and industrial control boards

Why Choose Our PCB Flipper Inverter?

Unlike generic flippers that rely on mechanical claws or manual adjustment, our inverter uses intelligent servo control and adaptive clamping force to handle delicate, high-density PCBs with zero defect risk. Built with industrial-grade components and tested for 24/7 operation, it’s engineered for factories that demand uptime, precision, and scalability.

We also offer customizable flip angles, extended size ranges, and cleanroom-compatible versions for advanced manufacturing environments.

Ready to Optimize Your SMT Line?

Whether you’re upgrading an existing line or designing a new automated cell, our PCB Flipper Inverter ensures smooth, consistent, and error-free board handling. Contact us today for a live demo, custom quote, or integration support—we’re here to help you maximize throughput without compromising quality.
