Enclosed Design PCB Turn Conveyor PCB Handling Equipment SMEMA Compatible For SMT Line

Enclosed Design 90 Degree Direction Change PCB Turn Conveyor Automatic PCB Handling Equipment SMEMA Compatible For SMT Production Line

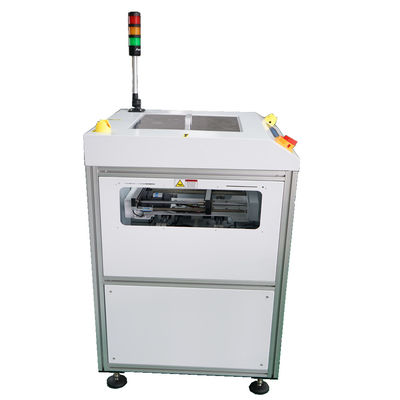

PCB Turn Conveyor is a professional PCB handling equipment designed for SMT assembly lines. It realizes 90 degree horizontal direction change for printed circuit boards without flipping the board surface. Built with enclosed design, this pcb turn conveyor smoothly transfers PCBs between different production segments, maintains stable board transportation and keeps the continuity of automatic SMT production. It is fully SMEMA compatible to connect seamlessly with other SMT machines.

• Automatically receive and transmit PCBs to achieve continuous production.
• According to process requirements, the PCB is rotated accurately 180 degrees.
• Cooperate with subsequent process equipment to achieve efficient transfer of PCBs.
• Programmable control, flexible to adapt to PCBs of different sizes and shapes.

• Use stable and reliable transmission mechanisms, such as belts or rollers.
• Built-in high-precision rotation mechanism can accurately control the rotation angle.
• The transmission speed is adjustable and synchronized with the rhythm of the process flow.
• The equipment has a compact structure, small footprint, and is easy to integrate into the production line.
• Equipped with safety protection devices, such as light barriers, emergency stops, etc.
• PLC control system can be programmed to realize automatic operation.

• Transmission mechanism: such as belts or rollers, used to carry and move PCBs.
• Rotating mechanism: Utilizes driving components such as motors or cylinders to perform 180-degree flips.
• Sensor: detects PCB position information to ensure accurate rotation.
• PLC control system: programming to realize automatic control and data monitoring.
• Safety protection devices: such as light grids, emergency stop switches, etc.

• SMT production line: PCB flipping between reflow soldering, AOI inspection and other processes.
• Drilling process: Turn the PCB 180 degrees before and after drilling.
• Tin spraying production line: The PCB is turned over before and after tin spraying.
• Inspection test: Flip the PCB before and after the test equipment.

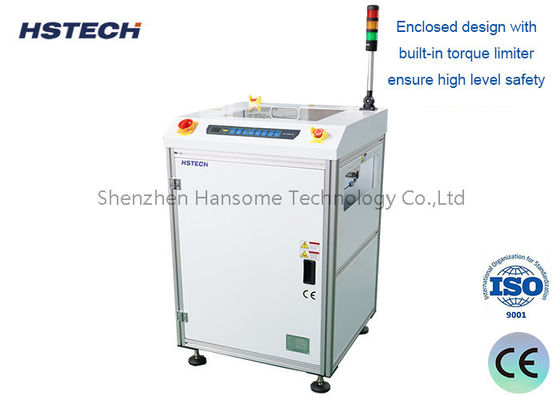

1. Enclosed design with built-in torque limiter ensure high level of safety.
2. Top safe cover can be opened for each access to hardware during Maintenance.
3. Use friendly control button.
4. Smooth and precise rotation.
5. Minimize the transfer gap between conveyors.
6. PCB traffic flows can be customized.
7. Smooth and parallel width adjustment(lead screw).
8. SMEMA compatible.

Why Choose Our PCB Turn Conveyor?

Unlike basic turntables that rely on pneumatic cylinders with limited precision, our conveyor uses servo-driven rotation and retractable motor scaling for smooth, repeatable positioning—even under continuous 24/7 operation. The reinforced steel frame with anti-vibration feet ensures stability during rotation, while the intuitive touchscreen interface allows operators to adjust parameters (speed, angle, width) in seconds without specialized training.

Ready to Optimize Your SMT Line Layout?

Whether you're designing a new production cell or retrofitting an existing line, our PCB Turn Conveyor delivers the flexibility, precision, and reliability your factory needs. Contact us today for a custom layout consultation, live demo, or competitive quote—let us help you turn your production flow into a competitive advantage.
