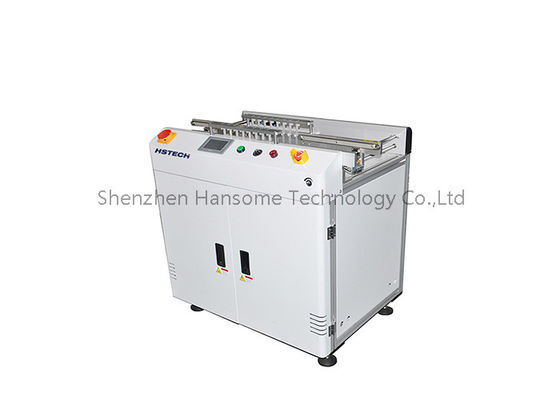

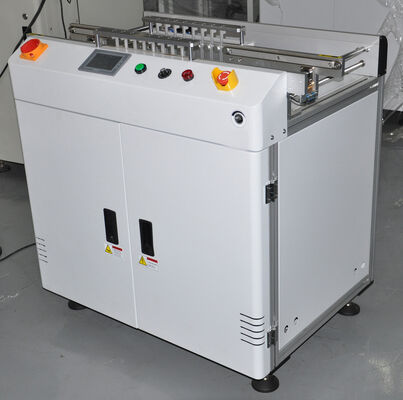

Mitsubishi PLC Aluminum Frame NG PCB Reject Conveyor For SMT Assembly Line

Mitsubishi PLC Controlled Aluminum Frame NG PCB Reject Conveyor For SMT Production Line Defective Circuit Board Unloading And Sorting

Features

• Reject, inspect and by-pass modes all available.
• Modular design.
• Stability enhanced by robust design.

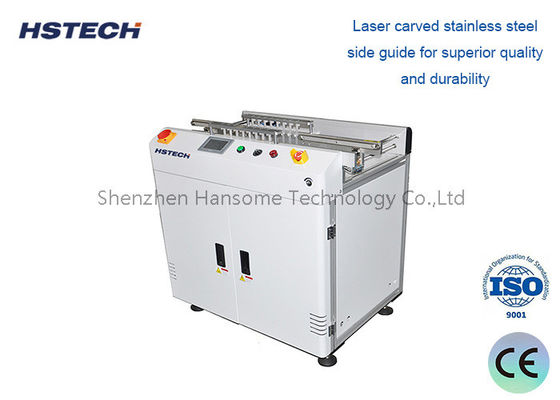

• Laser carved stainless steel side guide for superior quality and durability.
• Ergonomic design arm rest.
• Smooth and parallel width adjustment(lead screw).
• Different lengths available upon request.
• Variable speed control.
• SMEMA compatible.

Specification

Transporting rail

Electric control

Lifting Sturcture

Typical Applications

• SMT Quality Control Lines: Automatically removing defective boards after AOI/SPI inspection to prevent further processing of faulty PCBs.
• Automotive Electronics Manufacturing: Ensuring zero-defect standards by isolating NG boards in ECU, sensor, or power module production.
• Consumer Electronics Assembly: Diverting boards with soldering defects, missing components, or misalignment in smartphone, tablet, or wearable device lines.
• LED Module Production: Handling large-format PCBs while maintaining strict quality control for lighting and display applications.
• Contract Manufacturers (CEMs): Enabling quick changeover between different customer projects with adjustable reject criteria and bin capacity.

Why Choose Our NG PCB Reject Conveyor?

Unlike basic reject systems that rely on simple pneumatic pushers with limited precision, our conveyor features an intelligent control system that synchronizes with upstream inspection equipment to ensure 100% accurate NG identification. The modular design allows for easy maintenance, with tool-free access to wear parts and self-lubricating bearings for long-term reliability. Additionally, the HMI interface provides real-time production data (e.g., total boards processed, NG count, reject rate) for quality tracking and process optimization.

We also offer customizable reject mechanisms (flip-type, push-type, or robotic arm), extended conveyor lengths, and cleanroom-compatible versions for sensitive manufacturing environments.

Ready to Eliminate Defective Boards from Your SMT Line?

Stop wasting time and resources on processing faulty PCBs. Our NG PCB Reject Conveyor ensures that only qualified boards move forward, saving you cost and protecting your brand reputation. Contact us today for a custom integration plan, live demo, or competitive quote—let us help you build a smarter, more efficient production line.
