High Speed SMT PCB Shuttle Conveyor PLC Control SMEMA Compatibility for PCB Transport

High Speed Automated SMT PCB Shuttle Conveyor PLC Controlled SMEMA Compatible Equipment for Seamless Printed Circuit Board Transport

Product Introduction

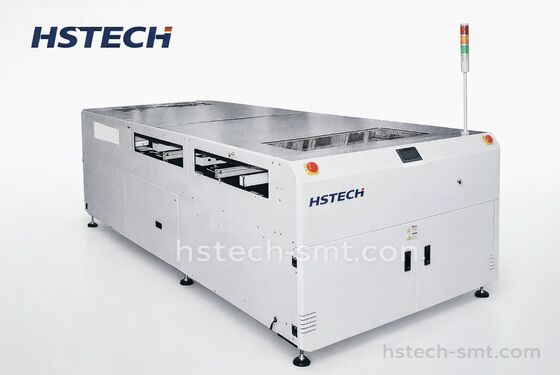

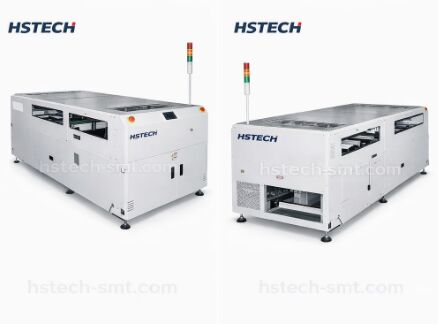

The PCB Shuttle Conveyor is a professional automated PCB handling equipment specially designed for SMT production lines, dedicated to achieving stable, efficient, and seamless transfer of printed circuit boards between different SMT processing stations. As a core auxiliary device for intelligent electronic manufacturing production lines, this automated PCB Shuttle Conveyor perfectly matches mainstream SMT equipment, solving the problems of PCB docking, transmission and transition in the assembly line production process. Equipped with standard SMEMA interface and intelligent PLC control system, the PCB Shuttle Conveyor realizes fully automatic unmanned PCB feeding, conveying and shuttle switching, effectively connecting solder paste printers, placement machines, reflow ovens, AOI detectors and other SMT equipment. It is compatible with various types of PCBs in different sizes and thicknesses, with strong versatility, and is an essential key equipment to improve the automation level and production continuity of modern SMT production lines.

Key Features

• Module Safety Enclosed Design - Ensures safe operation while maintaining compact structure
• PLC Control - Provides precise automated control for enhanced operational reliability
• Stepper Motor & Precision Belt Moving - Delivers high precision and smooth movement for consistent PCB handling
• Smooth Parallel Width Adjustment - Offers flexible control to accommodate various PCB sizes

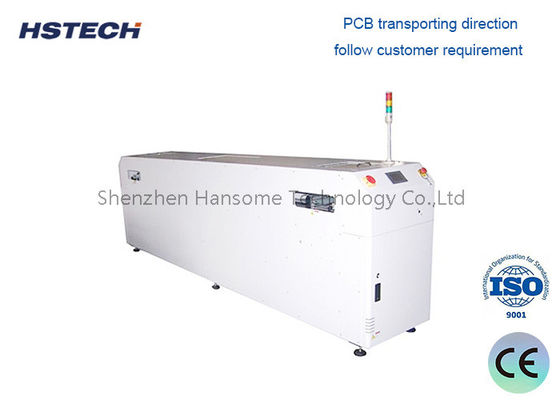

• Customized Transport Direction - Adjustable direction based on specific customer requirements
• Touch Screen Control Panel - Intuitive user interface for easy monitoring and adjustments
• Three-Color Tower Light Display - Visual status indicator with red, yellow, and green lights
• SMEMA Compatibility - Fully compatible with Surface Mount Equipment Manufacturers Association standards

Technical Specifications

Primary Function

This unit redirects PCB flow to different channels, enabling smooth transitions between 2-line to 1-line or 1-line to 2-line configurations. The system provides dynamic routing flexibility for optimized PCB handling operations.

Technical Parameters

• Transport Height: 910±20mm
• Translation Distance: Standard 2000mm or customizable
• Translation Time: Customizable based on production needs
• Number of Traveling Cars: Single or dual car (optional)
• Translation Method: Stepper motor + conveyor belt
• Rail Fixed: 1st and 4th rail fixed for stability
• Transfer Direction: L-R or R-L for flexible line configuration
• PCB Transfer Mode: 2 in 1 out, 1 in 2 out, or 2 in 2 out options
• Air Pressure: 4-6 bar
• PCB Thickness: Minimum 0.4mm
• Signal: SMEMA compliant

Typical Applications

• SMT Line Balancing: Bridging cycle time gaps between fast pick-and-place machines and slower reflow ovens or inspection stations.
• Double-Sided Assembly: Buffering and transferring PCBs between first-side and second-side placement processes.
• Automotive Electronics Manufacturing: Ensuring stable transfer of large-format PCBs for ECU, sensor, and power module production.
• Consumer Electronics Assembly: Handling high-volume production of smartphone, tablet, and wearable device PCBs with zero downtime.
• Contract Manufacturers (CEMs): Quickly adapting to different customer projects with adjustable buffer capacity and transfer speed.

Why Choose Our PCB Shuttle Conveyor?

Unlike basic transfer conveyors that rely on simple belt movement with no buffering capability, our shuttle conveyor combines high-speed transfer with intelligent buffering to eliminate line stoppages caused by process mismatches. The reinforced steel frame with anti-vibration feet ensures stable operation even at maximum speed, while the modular design allows for easy maintenance with tool-free access to wear parts. The HMI interface provides real-time data on board count, transfer time, and buffer status, enabling operators to optimize line performance and identify potential issues before they cause downtime.

We also offer customizable buffer capacities, extended conveyor lengths, and cleanroom-compatible versions for sensitive manufacturing environments.

Ready to Eliminate Bottlenecks in Your SMT Line?

Stop losing production time to process mismatches. Our PCB Shuttle Conveyor ensures smooth, continuous flow between all stations, maximizing your line’s throughput and efficiency. Contact us today for a custom integration plan, live demo, or competitive quote—let us help you turn your production line into a high-speed, high-yield powerhouse.
