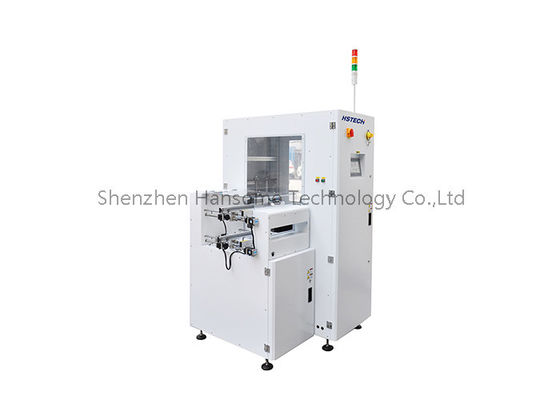

SMT Vertical Buffer Conveyor PCB NG Buffer Machine Easy Operation With Touch Screen

SMT Vertical Buffer Conveyor PCB NG Sorting Buffer Machine Easy Operation With Touch Screen Automatic Circuit Board Storage Buffer For SMT Assembly Line

Product Introduction

The Vertical Buffer is a high-performance automatic PCB buffer equipment specially developed for modern SMT assembly lines. As a core SMT buffer equipment, this SMT Vertical Buffer Conveyor realizes intelligent temporary storage, speed matching and flow adjustment of PCBs, effectively solving the production line stagnation problem caused by inconsistent operating speed of upstream and downstream equipment. This PCB NG Buffer supports automatic identification and separate storage of OK and NG circuit boards, equipped with a humanized touch screen control system, realizing fully automated unmanned buffering operation. With a compact vertical storage structure, the vertical buffer greatly saves factory floor space, provides stable and efficient PCB handling and line balancing functions, and is an essential intelligent supporting equipment for high-efficiency automated SMT production lines.

1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.

It can isolate the input and output parts of the circuit to prevent mutual interference.
It provides buffering function to prevent the circuit load from affecting the driving circuit.

It can amplify the input signal of the circuit and improve the signal strength.
It ensures signal integrity and avoids signal attenuation caused by load.

It realizes impedance matching between various parts of the circuit and improves signal transmission efficiency.
It matches circuit parts with different characteristic impedances to avoid problems such as signal reflection.

It can complete the conversion between different voltage levels, such as TTL level and CMOS level.
It ensures that various parts of the circuit can work normally and avoid voltage mismatch problems.

• Open collector buffer
• Tri-state buffer
• Differential buffer
• Level conversion buffer

Application Scenarios

• SMT assembly lines requiring stable PCB flow between machines.
• High-mix, small-batch production with frequent product changeovers.
• Automated SMT lines connecting printers, mounters, reflow, AOI, and SPI.
• PCB manufacturing and electronics factories seeking improved line efficiency.
• Bottleneck balancing between fast and slow process stations.

Why Choose Our Vertical Buffer

• Focused on SMT PCB handling: Designed to support real production-line needs.
• Compact and practical: Helps maximize workshop space without sacrificing buffering capacity.
• Smooth line integration: Works well with existing conveyors and SMT equipment.
• Consistent operation: Helps reduce machine waiting time and improve throughput.
• Factory-ready support: Suitable for global SMT manufacturers and integrators.

Get a Quote

Looking for a reliable Vertical Buffer for your SMT line? Share your PCB size, line layout, conveyor height, and required buffer capacity, and we will help you choose a suitable configuration. Contact us today for specifications, pricing, and lead time.
