Heat Resistant Metal ESD Antistatic SMT PCB Magazine Rack For SMT Assembly Line PCB Circulation

Heat Resistant Metal ESD Antistatic SMT PCB Magazine Rack For SMT Assembly Line PCB Storage And Circulation PCB Holder For Electronics Production

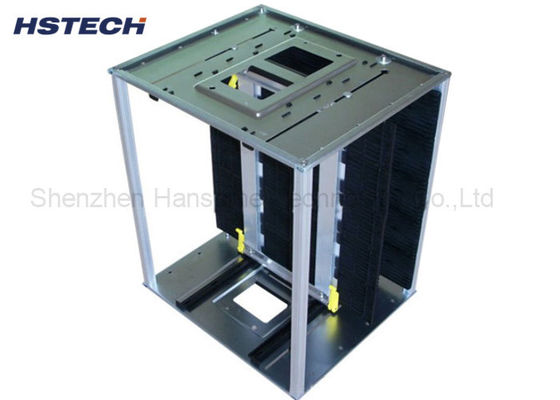

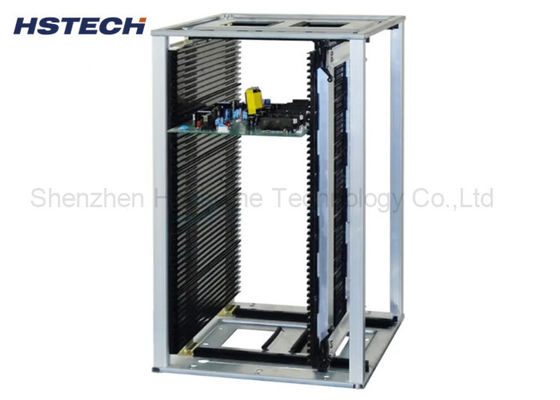

The SMT ESD Magazine Rack (LL Size) is a professional PCB storage and transport rack designed for SMT production lines, PCB warehouses, and electronics assembly workshops. It is built to hold and protect PCBs during storage, transportation, and line-side buffering, while helping prevent electrostatic discharge damage through ESD-safe material construction.

The LL size design provides extra capacity for longer and wider PCB panels, making it suitable for large-format boards, multi-unit panels, LED lighting boards, and high-volume SMT environments. The rack supports smooth insertion and removal of PCBs, helping reduce handling damage, board warping, and surface scratches during production.

1. This product is used for PCB loader and unloader machine, collect,transport and store the PCBs in the warehouse or production room.
2. Top and bottom part using drable metal material panel, ensure the whole structure stable.
3. The whold rack is anti-static design, max can store 50pcs PCBs.
4. Width can be adjusted via gear and fixed by the clip.
5. The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
6. Stable structure, wont bent during operation, the racks also high temperature resistance.
7. Easy to install and disassembly, convenient for replacement and maintenance.

Anti-static SMT loading and unloading rack is also called PCB collection box. It is widely used in automatic loading and unloading machines. It is acid and alkali resistant, oil resistant, high temperature resistant, non-toxic and tasteless. It can be used to hold PCB boards. It is easy to clean and circuit board turnover is convenient. , stacked neatly for easy management. Its reasonable design and excellent quality are suitable for transportation, distribution, storage, circulation and processing in factories. SMT loading and unloading racks can be matched with a variety of logistics containers and workstations, and are used in various situations such as warehouses and production sites. Today, when automatic loading and unloading machines are increasingly valued by enterprises, SMT loading and unloading racks help complete the task. The circulation, storage and integrated management of PCB boards are essential for modern production management of production and external processing enterprises.

• SMT Production Lines
  Used for storing and transporting PCB panels before and after SMT processing, including pre-mounting buffering and post-mounting transfer.
• PCB Warehouse Management
  Helps organize bare PCBs and assembled boards with clear slot separation and stackable storage.
• LED Lighting PCB Handling
  Suitable for long or large LED aluminum boards and lighting modules that require stable vertical storage.
• Automotive and Industrial Electronics
  Supports careful handling of high-value PCBA boards where ESD protection and mechanical protection are important.
• High-Volume Electronics Manufacturing
  Ideal for factories with large panel sizes and high throughput, helping improve material flow and reduce manual mishandling.
• QC and Rework Areas
  Can be used to separate inspected boards, rework boards, and finished goods in a clear and organized way.

• Designed for Large Panels
  The LL size provides more usable space for long and wide PCB panels, reducing the risk of board bending or slot interference.
• Reliable ESD Protection
  ESD-safe material helps protect sensitive components and supports stable use in electronics manufacturing environments.
• Improved PCB Handling Efficiency
  Vertical multi-slot storage makes it easier to load, unload, count, and transport PCBs across different production stages.
• Durable for Daily Factory Use
  Built to withstand repeated handling, stacking, and transportation while maintaining structural stability.
• Easy to Integrate into SMT Workflow
  Compatible with common SMT line practices and can be used together with loaders, unloaders, conveyors, and trolleys.
• Customization Support
  Slot pitch, rack height, labeling options, and reinforced structures can be adjusted according to your PCB size and production needs.
• Practical Cost-Effective Solution
  Provides stable PCB protection and organized storage without requiring complex automation upgrades.

If you need a reliable ESD magazine rack for large SMT panels, the LL Size SMT ESD Magazine Rack can help improve PCB storage, transportation, and line-side management.

Please share your PCB panel size, thickness, number of slots, required rack height, and expected usage scenario. We will help confirm a suitable configuration and provide a quotation accordingly.
