Stainless Steel SMT Line Magazine Loader HS-LD250 With Tradition LED Button Control System

Name: Stainless Steel SMT Line Magazine Loader HS-LD250 With Tradition LED Button Control System
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-LD250
Price: 85.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-LD250
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	200 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Supply:

AC110V/220V, 50/60Hz

Air Pressure:

4-6bar

PCB Thickness:

Min 0.4mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Communication:

SMEMA

Magazine Qty:

Upper Side 1 Pc, Bottom Side 2 Pcs

Packaging Details:

Wooden package

Supply Ability:

200 Sets per Month

Highlight:

Stainless Steel SMT Magazine Loader

SMT Line Magazine Loader HS-LD250

PCB Magazine Loader LED Control

Product Description

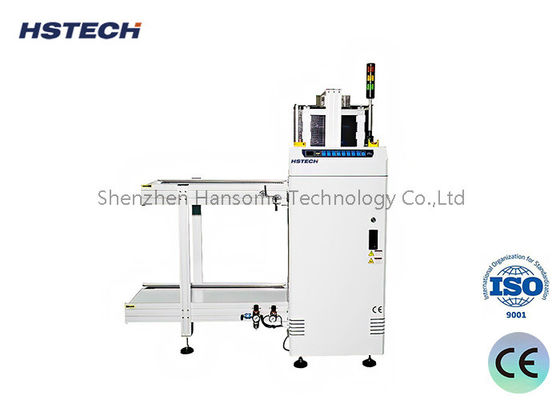

Stainless Steel SMT Line Magazine Loader HS-LD250

This PCB loader transports PCBs from magazine racks to the SMT production line. It is built around the reliable Tradition LED button control system, delivering intuitive, steady and repeatable operation on busy SMT lines.

Key Selling Point: Tradition LED Button Control System

Tradition LED button control system for simple, fail-safe daily operation
3-color LED light display gives instant machine status feedback
Stable, well-proven control platform, easy for operators to master

Product Features

Works with 3 magazine racks (upper side 1 pc, bottom side 2 pcs)
Stability stainless steel structure
Smooth and parallel width adjustment
Top and bottom pneumatic clamps to secure the magazine rack

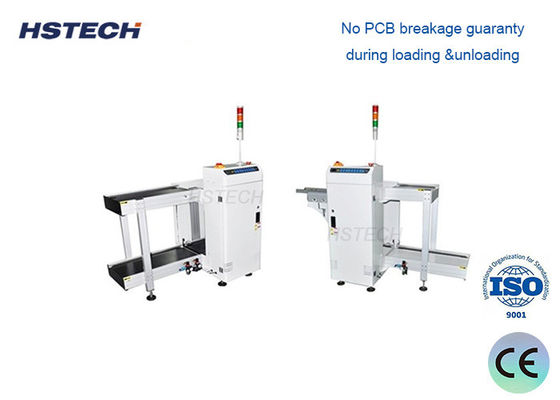

No PCB breakage guaranteed during loading and unloading
SMEMA compatible
CE listed, suitable for the Europe market

Technical Specifications

Model	HS-LD250
Product name	PCB Loader
Transport height	920±20mm
PCB loading time	Approx 6 seconds
Magazine replace time	Approx 30 seconds
Transportation direction	L~R, or R~L
Power supply	220V, 50/60Hz, ±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Pitch selection	1-4 (10mm pitch)
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Available Models & Ordering Information

Available models: HS-LD250, HS-LD330, HS-LD390, HS-LD460.

Packaging: wooden package.

Delivery: 15-20 working days.
