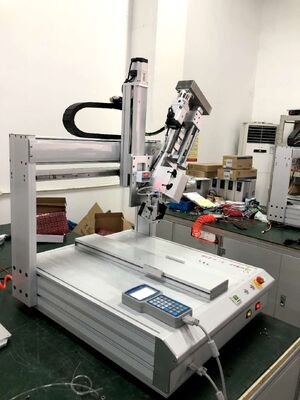

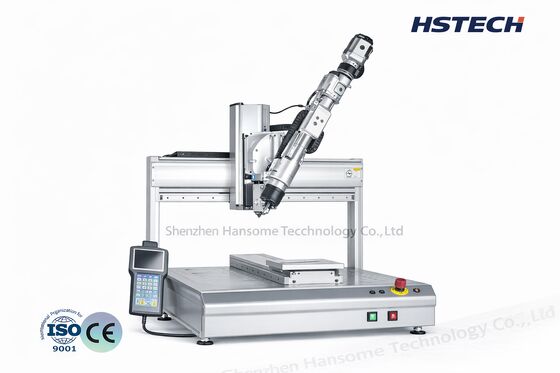

Glue Dispensing Machine 3 Axis Internal Lighting System 300mm/s Speed ±0.02mm Repeat Accuracy With Teach Pendant

This 3 axis glue dispensing machine is built around an internal lighting system. A built-in LED lighting source is installed inside the working chamber and switches on together with the machine, so the dispensing area, the nozzle tip and the glue bead stay fully visible during programming and production. Operators no longer have to hold a torch or work under a shadowed gantry when teaching a new path on dark substrates, black epoxy or deep-cavity LED housings. The illuminated chamber shortens teach-pendant programming time, reduces first-article rejects caused by missed or broken beads, and makes routine inspection of the glue track possible without stopping the cycle.

• Chamber-mounted lighting source illuminates the full X-Y travel area, not only the nozzle tip
• Bright, even illumination on black glue, black PCB and deep-cavity LED bulb shells where external light fails
• Operators can watch bead width continuity and glue breakage in real time while the machine is running
• Faster manual teaching with the pendant: the programmed path is verified visually point by point
• Inspection lighting is independent of factory lighting conditions and night shifts
• Long-life LED source with low heat output, so no effect on glue viscosity or pot life

• Internal lighting system installed inside the working chamber
• 3 axis (X/Y/Z) motion platform with servo and stepping drive combination
• 300mm/s maximum moving speed and ±0.02mm repeat accuracy
• Teach pendant programming with dot, line, circle, arc and continuous-path modes
• Program memory up to 1000 groups for fast product changeover
• Stainless steel machine body with rigid gantry, stable without vibration at high speed
• Optional single or dual dispensing head, PUR heating valve, AB mixing valve and vacuum suction device
• Automatic cleaning of valve and tubing during standby
• Suitable for in-line operation with SMEMA communication

The internal lighting system is especially useful for dark or recessed workpieces: LED bulb and LED tube bonding, LED module sealing, PCB solder paste and underfill dispensing, SMT component fixing, LCD and display frame bonding, sensor potting, connector and switch sealing, battery pack bonding, speaker and headphone assembly, optical lens fixing, and hardware package coating with PUR hot melt adhesive.

Standard configuration: 3 axis platform, internal lighting system, one needle dispensing valve, teach pendant and English operation manual. Optional items including PUR heating valve, AB mixing valve, CCD visual positioning, dual table and customized working range can be added on request.
