TD Plugs SR Thermal Profiler Ceramic Plastic K Type Thermocouple With Connector

TD Plugs SR Thermal Profiler Ceramic Plastic K Type Thermocouple With Connector
TD Plugs SR Thermal Profiler Ceramic Plastic K Type Thermocouple With Connector TD Plugs SR Thermal Profiler Ceramic Plastic K Type Thermocouple With Connector

Large Image :  TD Plugs SR Thermal Profiler Ceramic Plastic K Type Thermocouple With Connector

Product Details:
Place of Origin: China
Brand Name: OM
Certification: CE,RoHS
Model Number: K type
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1 days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Product Name: K Type Thermalcouple Test Accuracy: 0.1~0.3°
Repeat Accuracy: ±1.5° Material: Nylon, Teflon, Ceramic, Plastic
Size: A Variety Of Specifications Available Condition: New
High Light:

thermal profiler equipment

,

thermal break profile

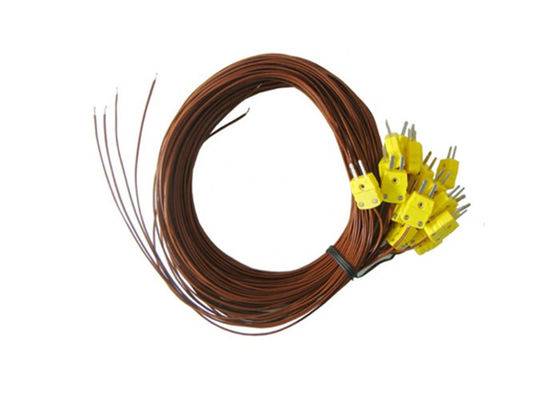

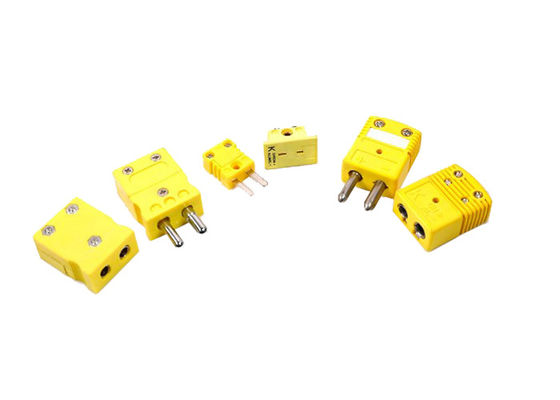

K type Thermocouple with Connector TD plugs SR type Ceramic Plastic



Introduction



A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots.

It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.

Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient

into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a

wide range of temperatures.

In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.



Specification



Product Conductor material Type Graduation

Use temperature°C

(short time)

Use temperature°C













Thermocouple

PtRh30-Ptrh6 WRR B 0-1800°C 0-1600°C
PtRh10-Pt WRP S 0-1600°C 0-1300°C
PtRh13-pT WRB R 0-1600°C 0-1300°C
NiCrSi-NiSi WRM N 0-1000°C 0-1000°C
NiCr-NiAl(Si) WRN K 0-1200°C 0-900°C
NrCr-constantan WRE E 0-700°C 0-600°C
Iron- Constantan WRF J 0-600°C 0-500°C
Copper-Constantan WRC T 0-400°C 0-350°C



Thermal resistance

Copper heat resistance   Cu50   -50-150°C
  Cu100   -50-150°C
  Pt100   -200-600°C



Application



Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust,

diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors

in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
