Type K Standard Thermal Profiler 7 / 9 USB 2.0 PC Connection KIC Start 2

Type K Standard Thermal Profiler 7 / 9 USB 2.0 PC Connection KIC Start 2

  • Type K Standard Thermal Profiler 7 / 9 USB 2.0 PC Connection KIC Start 2
Type K Standard Thermal Profiler 7 / 9 USB 2.0 PC Connection KIC Start 2
Product Details:
Place of Origin: China
Brand Name: KIC
Model Number: X5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Special design aluminum box
Delivery Time: 3~5days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: KIC K2 Thermal Profile Channels: 7 Channels,9 Channels
Accuracy: ± 0.5˚C Resolution: 0.1˚C
Interal Operating Temp: 0˚C~85˚C Sample Rate: 0.1 To 10 Readings/sec
High Light:

thermal profiler equipment


oven temperature profil

Type K Standard 7 / 9 USB 2.0 PC Connection KIC K2 Thermal Profiler

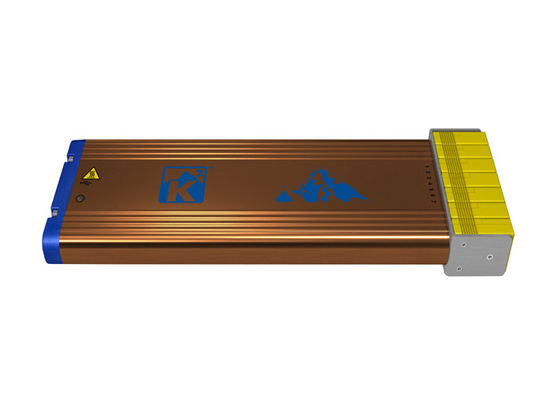

The KIC K2 Thermal Profiler features a compact and robust design that allows it to fit through the tight, heated chambers of lead-free reflow ovens. A plug-and-play hardware and graphical user interface makes profiling both quick and easy. The profile data measured by the K2 can now be viewed on either a PC or on a mobile device using the Profile Viewer App.


KIC K2 Key Features


1, Upgrading Replacment for Slim Kit KIC 2000 but different from KIC Slim Kit 2000

2, Same Profiing Software with KIC X5

3, Build in Automatic Profile Prediction in Profiling Software

4, Stainless Steel Thermal Shield for High Temperature Protection

5, Temperature Profile can be Monitoring and Access at Anywhere

6, Profile can be Access by Mobile Phone with installation wtih iphone OS or Android Platfrom )

7, 9 Channels are Available

8, Economical 7 Channels Profiler

9, Full Original Package, with original Thermal Couples, Protective Shield, Software, etc




Dimensions (L x W x H) 7-channel
206 x 60 x 17 mm (8.1" x 2.4" x 0.7")
With shield: 302 x 75 x 23 mm (11.9" x 3" x 0.9")
206 x 75 x 17 mm (8.1" x 3" x 0.7")
With shield: 312 x 90 x 23 mm (12.3" x 3.5" x 0.9"
Accuracy ± 0.5˚C
Resolution 0.1˚C
Internal Operating Temp. 0˚C to 85˚C
Sample Rate 0.1 to 10 readings/sec
Data Points 224,640
PC Connection USB 2.0 (Std-A/Mini-B)
Power Requirements 3 AAA batteries
Thermocouple Capacity Type K, standard (7 or 9, depending on model)
Thermocouple Temperature Range -150˚C to 1050˚C
Thermal Shield Cool Touch Stainless Steel 7 or 9 channel
Mobile App Requirements Authorized Android Device
WiFi or Bluetooth for data transfer
Computer Configuration
Minimum System Requirements
Dual Core / 1 GHz processor PC w/2 GB RAM
2 GB available storage
Video 1024 x 768 resolution, 16-bit
1 available USB port for data download
1 available USB port for software key
