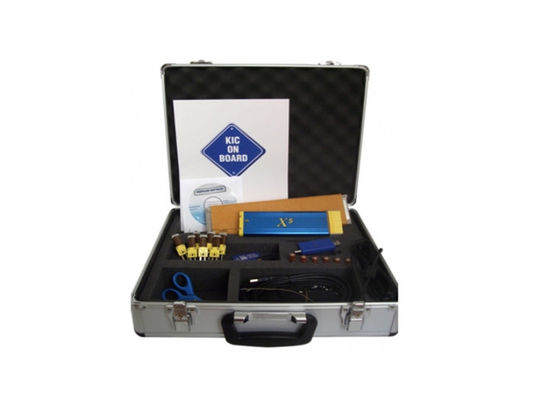

USB Cable Thermal Profiler 7 Channels Standard Type K Thermocouple KIC X5

USB Cable Thermal Profiler 7 Channels Standard Type K Thermocouple KIC X5
USB Cable Thermal Profiler 7 Channels Standard Type K Thermocouple KIC X5

Large Image :  USB Cable Thermal Profiler 7 Channels Standard Type K Thermocouple KIC X5

Product Details:
Place of Origin: China
Brand Name: KIC
Model Number: X5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Special design aluminum box
Delivery Time: 3~5days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Product Name: KIC Thermal Profile Channels: 7 Channels,9 Channels, 12 Channels
Accuracy: ± 0.5˚C Resolution: 0.1˚C
Interal Operating Temp: 0˚C~85˚C Sample Rate: 0.1 To 10 Readings/sec
High Light:

thermal profiler equipment

,

oven temperature profil

7 Channels Standard Type K Thermocouple KIC X5 Thermal Profiler with USB Cable



Introduction


With 7, 9, and 12-channel models, the X5 is able to acquire a lot of data, allowing you to precisely evaluate each thermal profile and process in your factory. Measure slope, peak temperature, time above liquidous, and more. Data is transferred to your computer via a USB cable or, for RF models, wirelessly through radio frequency transmitters—no cable connection required.



USB Cable Thermal Profiler 7 Channels Standard Type K Thermocouple KIC X5 0

KIC 'X5' Key Features


1, Robust hardware backed by 2-year warranty
2, Wireless data transfer with RF-equipped models
3, SPC (statistical process control) software included for documentation and production optimization
4, Simplifies oven setup: KIC’s optimization software selects the best oven setup for each new product in seconds
5, User-selectable setup criteria
6, Reduces profiling to a single number: The PWI (process window index) makes it easy for operators, techs, and engineers to see at a glance how close the profile comes to spec.
7, Immediate profile analysis: Objective and personnel-independent profile analysis gives you information you can bank on.



Specifications



Model KIC X5
Dimension 7-channel: 206 x 60 x 17 mm,with shield: 302 x 75 x 23 mm
9-channel: 206 x 75 x 17 mm,with shield: 312 x 90 x 23 mm
12-channel 206 x 98 x 17 mm,with shield: 323 x 113 x 23 mm
Accuracy ± 0.5˚C
Resolution 0.1˚C
Interal operating temp 0˚C~85˚C
Sample rate 0.1 to 10 readings/sec
Data points 224,640
Data transfer Standard model
USB 2.0 (Std-A/Mini-B) after datalogging run
RF model
Wireless over RF (radio frequency 433.92 MHz), sent real-time during datalogging run, or via USB 2.0 (Std-A/Mini-B) after datalogging run
Power 3 AAA batteries, USB cable when connected to a computer
Thermocouple Capacity Type K, standard (7, 9, or 12, depending on model)
Thermocouple Temperature Range -150˚C to 1050˚C
Thermal shield Cool Touch Stainless Steel 7 or 9 channel
Computer Configuration
Minimum System Requirements
Dual Core / 1 GHz processor PC w/2 GB RAM
2 GB available storage
Video 1024 x 768 resolution, 16-bit
1 available USB port for data download
1 available USB port for software key
