Width Adjustment Panasonic PLC PCB Unloader Bare Board Unloader

Width Adjustment Panasonic PLC PCB Unloader Bare Board Unloader
Width Adjustment Panasonic PLC PCB Unloader Bare Board Unloader

Large Image :  Width Adjustment Panasonic PLC PCB Unloader Bare Board Unloader

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-ST400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package,with foam
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Stacker Other Name: Bare Board Unloader
Power Supply: AC110V/220V,single Phase Program: PLC
PLC Brand: Panasonic Air Pressure: 0.6Mpa
PCB Thickness: 0.6~4.0mm Warranty: 1 Year
High Light:

Width Adjustment PCB Unloader

,

Panasonic PLC PCB Unloader

,

Bare Board Unloader PCB Stacker

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader



Application



This machine used for unloading/collection bare PCBs from SMT production line after laser marking.



Features



1. Panasonic PLC program control.
2. Traditional and simple LED button Control.

3, Smema signal connection.

4, Manual PCB thickness adjustment.

5, Hand crank PCB width adjustment.

6, LED display light status.

7, Aluminium structure, heavy bottom design to prevent shift.
8, Pass-through mode provided.
9, Only taken 10 seconds to change product line.
10, Uninterrupted Loading.

11, ESD transporting belt.
12, Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door



Specification



Function

Used for collecting bare PCB to smt line from upstream machine

Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side
PCB thickness 0.6~4.0mm
PCB components height ±35mm
PCB feeding time Approx. 10 seconds or Specify
Board weight ≤3KG
Power supply 220V,50/60Hz,±10%
Power 0.05kW
Air pressure 0.6Mpa
Air consumption <20L/min
Signal SMEMA



Model HS-ST400 HS-ST530
Efficient PCB length 50~400mm 50~530mm
Transport PCB width 50~400mm 50~500mm
PCB thickness Min 0.6mm Min 1.0mm
Machine dimension 650*670*1200mm 800*880*1200mm
Weight 170kg 190kg

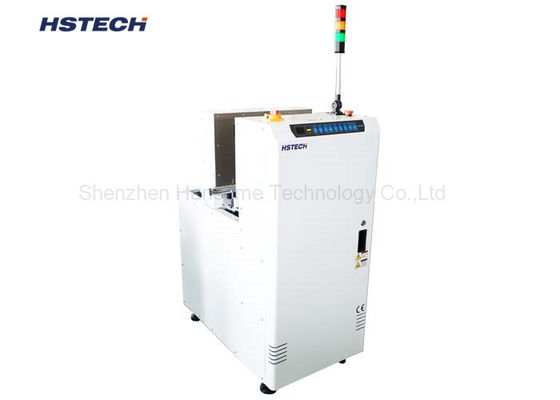

Width Adjustment Panasonic PLC PCB Unloader Bare Board Unloader 0

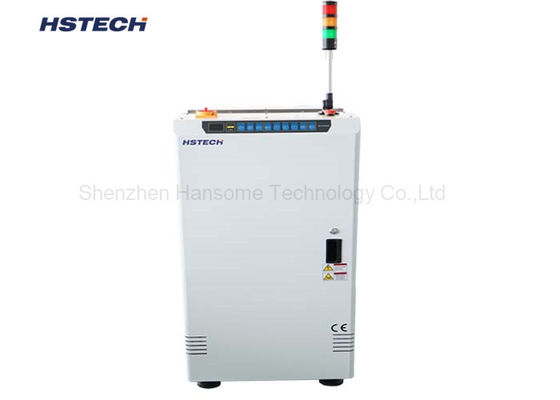

Width Adjustment Panasonic PLC PCB Unloader Bare Board Unloader 1
