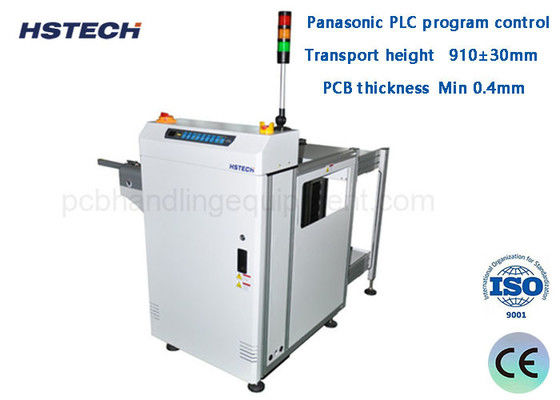

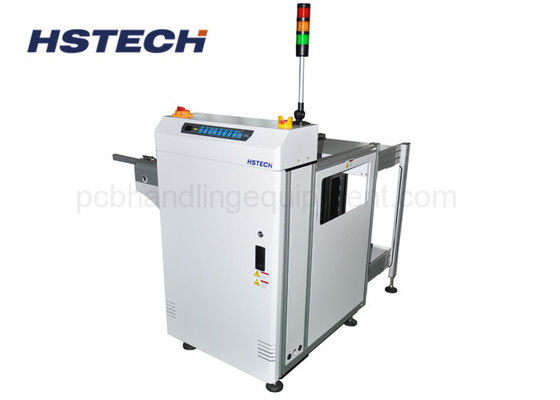

90 Degree Space-Saving PCB Magazine Unloader with PLC Control for SMT Lines

Brand Name:	HSTECH
Model Number:	HS-CU250/HS-CU330/HS-CU390/HS-CU460
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

90 Degree PCB Magazine Unloader

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Size:

50*50~530*460mm

Pitch Selection:

10-40mm

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

100 PC/Month

Product Description

90 Degree PCB Magazine Unloader for SMT Line Space-Saving Automatic PCB Unloading Solution

High-efficiency 90 degree PCB magazine unloader for SMT production lines. Space-saving design, stable PLC control, SMEMA compatible. Ideal for automated PCB handling and unloading.

Product Overview

The 90 Degree PCB Magazine Unloader is designed for SMT production lines to automatically collect PCBs at a right angle, significantly reducing line length and optimizing factory space utilization.

Equipped with a high-performance pusher system, this machine ensures smooth and reliable PCB transfer from conveyor rails into magazine racks—ideal for modern, high-efficiency electronics manufacturing environments.

Key Advantages

Space-Saving 90° Design

Collects PCBs at a right angle to reduce SMT line length
Perfect for factories with limited floor space

Stable & Efficient Operation

PLC control system ensures reliable automation
Does not affect production throughput

Precision & Durability

Stainless steel + aluminum profile structure
Strong, stable, and easy to maintain

High Compatibility

Fully SMEMA compatible
Seamlessly integrates with existing SMT lines

PCB Protection Guaranteed

Smooth unloading process
No PCB damage during transfer

Core Features

90° right-angle PCB unloading for optimized line layout
LED touchscreen interface with 3-color status display
High-quality flat ESD belt (width 13mm, thickness 3mm)
Adjustable width with manual hand crank
Top & bottom pneumatic clamps for stable magazine positioning
Intelligent PLC control system
Smooth and parallel width adjustment mechanism

Technical Specifications

Parameter	Details
Product Name	90 Degree PCB Magazine Unloader
Transport Height	910 ± 30 mm
Transport Direction	Left → Right or Right → Left
Operation Side	Front Operation
Power Supply	220V / 50-60Hz ±10%
Air Pressure	4-6 bar
PCB Thickness	Min 0.4 mm
Magazine Capacity	Top: 1 / Bottom: 2
Conveyor Speed	0.5-20 m/min (adjustable)
Interface	SMEMA

Available Models

Model	PCB Size Range	Machine Size (mm)	Magazine Size (mm)	Weight
HS-CU250	50×50 - 350×250 mm	1100×1200×1200	355×320×563	140 kg
HS-CU330	50×50 - 455×330 mm	1310×1360×1200	460×400×563	200 kg
HS-CU390	50×50 - 530×390 mm	1430×1480×1200	535×460×570	260 kg
HS-CU460	50×50 - 530×460 mm	1430×1620×1200	535×530×570	300 kg

Application Industries

EMS (Electronics Manufacturing Services)
Consumer Electronics
Automotive Electronics
LED Manufacturing
PCB Assembly Lines

Why Work With Us?

10+ years experience in SMT automation equipment
Exported to 30+ countries worldwide
Customization available for different production lines
Fast delivery & reliable after-sales support

Optimize Your SMT Production Line

Looking to optimize your SMT production line and save space? Need a reliable PCB unloading solution with fast ROI?

Free layout solution
Best price quotation
Customized configuration

Send your inquiry now — we will respond within 24 hours!
