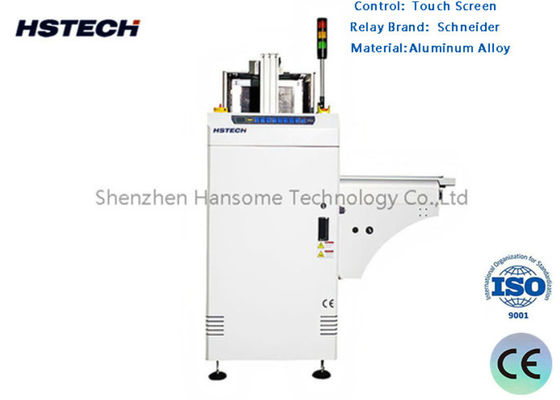

Automatic 90 Degree Rotation PCB Unloader with High-Speed Performance and Space-Saving Design for SMT Lines

The 90 Degree L Type PCB Unloader (also known as L-Shaped or Corner Unloader) is an innovative automation solution that turns 90-degree corners into productive unloading stations. This compact system automatically receives PCBs from the main conveyor, rotates them 90 degrees, and stacks them precisely into magazines, optimizing floor space utilization in constrained SMT line layouts. Ideal for automotive, medical, and consumer electronics manufacturing where space is at a premium.

• Module design.
• Stability enhanced by robust design.
• Economic design arm test.
• Smooth and parallel width adjustment.
• Three magazine racks application.
• Top and bottom pneumatic clamps to secure magazine rack.
• No PCB breakage guaranty during loading &unloading.
• SMEMA compatible.

• Automatic 90 Degree Rotation
  The core function of this L Type PCB Unloader is its ability to automatically rotate PCBs by 90 degrees during the unloading process. This ensures that boards are perfectly aligned with the downstream conveyor system, eliminating the need for manual reorientation and reducing production bottlenecks.

• High-Speed Performance
  Built for high-speed SMT production lines, this unloader features rapid lifting and conveying mechanisms that maximize throughput. With a cycle time optimized for efficiency, it keeps pace with even the fastest pick-and-place machines, ensuring your line operates at peak capacity.

• Universal Compatibility
  Designed to handle a wide range of PCB sizes and thicknesses, this automatic PCB unloader features adjustable magazine guides and conveyor width. It seamlessly integrates with standard SMEMA-compatible equipment, making it a versatile addition to any SMT line configuration.

• Damage-Free Handling
  Precision-engineered with soft-grip mechanisms and smooth conveying surfaces, this PCB handling machine ensures zero board damage during the unloading and rotation process. This is critical for maintaining high yield rates in sensitive electronics manufacturing.

• Space-Constrained SMT Lines: Electronics manufacturing in dense industrial areas

• Automotive Electronics: ECU, sensor module production with limited floor space

• Medical Device Assembly: Clean room compatible versions available

• High-Mix Flexible Lines: Quick changeover between different PCB sizes

• Factory Layout Optimization: Retrofit solutions for existing cramped production lines

• Cost-Effective Space Solution: Provides full automation without requiring expensive factory expansion – critical for Vietnamese, Thai, and Malaysian manufacturers in competitive cost environments.

• Easy Installation & Training: Simplified mechanical design allows quick setup with minimal technical expertise, matching regional skill availability.

• Humidity & Temperature Resistance: Built with components rated for tropical conditions (up to 85% humidity, 40°C).

• 30% Higher Space Efficiency: Compared to traditional straight-line unloaders.

• Quick ROI (3-8 months): Through labor reduction and line balance optimization.

• Modular Design: Can be expanded with buffer conveyors or AGV connections.
