Air Supply White Color Solder Paste Machine 4 Working Tank AC 110V/AC220V 50/60Hz

Air Supply White Color Solder Paste Machine 4 Working Tank AC 110V/AC220V 50/60Hz

  • Air Supply White Color Solder Paste Machine 4 Working Tank AC 110V/AC220V 50/60Hz
  • Air Supply White Color Solder Paste Machine 4 Working Tank AC 110V/AC220V 50/60Hz
Air Supply White Color Solder Paste Machine 4 Working Tank AC 110V/AC220V 50/60Hz
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SP-4N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 2~3 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Solder Paste Thawing Machine Other Name: Solder Paste Warm Up Machine
Voltage: AC110V/AC220V, 50/60Hz Air Supply: Needed
Weight: 16kg Warranty: 1 Year
High Light:

solder paste check right machine

,

solder paste aging machine

Air Supply White Color 4 Working Tank Solder Paste Thawing Machine



Introduction

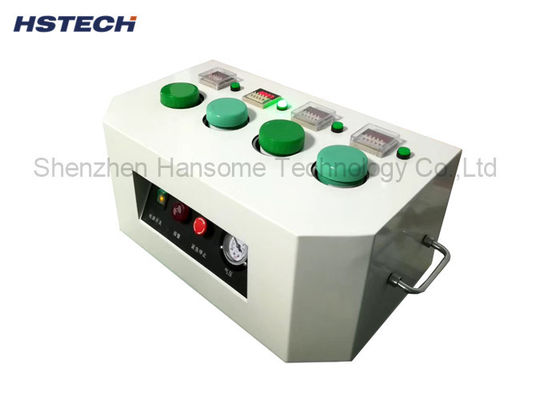

Solder paste check right machine, also called solder paste warm up machine, and solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.



Features

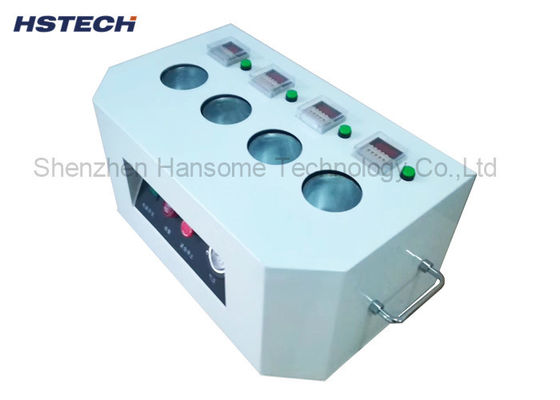

1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the slot and sink automatically,also it will release automatically when time is over.
2. With FIFO fuction.
3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.
4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.

Specification

Model HS-SP-4N
Control system PLC
Assemblying parts Import parts
Power AC220V, 50Hz
Air Pressure 0.4Mpa
Placing tank 4 tanks
Machine Demension 500*300*220mm(W*D*H)
Gross Weight 16KG
