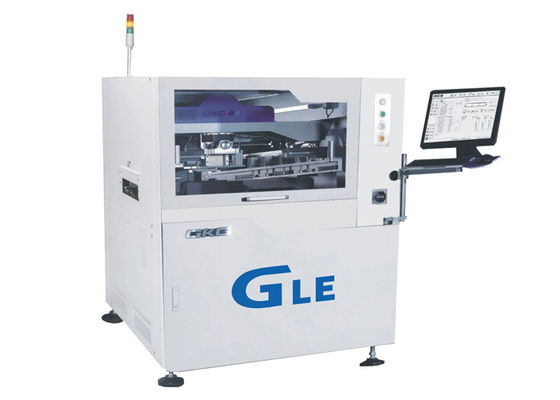

SMT Solder Paste Stencil Printing Machine 0.3 Pitch CCD Digital Camera High Precision

SMT Solder Paste Stencil Printing Machine 0.3 Pitch CCD Digital Camera High Precision
SMT Solder Paste Stencil Printing Machine 0.3 Pitch CCD Digital Camera High Precision

Large Image :  SMT Solder Paste Stencil Printing Machine 0.3 Pitch CCD Digital Camera High Precision

Product Details:
Place of Origin: China
Brand Name: GKG
Certification: CE,TUV,ROHS
Model Number: GLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

SMT Solder Paste Stencil Printing Machine 0.3 Pitch CCD Digital Camera High Precision

Description
Product Name: Automatic Solder Paste Printer Other Name: Automatic Screen Printing Machine
PCB Size: 50x50~510x510mm Transport Height: 900±40mm
Air Pressure: 4-6kgf/cm³ I/Ov Interface: SMEMA
High Light:

solder paste warm up machine

,

solder paste check right machine

Precision 01005 0.3Pitch CCD Digital Camera SMT Solder Paste Stencil Printer



Introduction



GLE Automatic solder paste printing machine is a high-end machine for SMT large-scale applications. The width of Gt-S is only 2830mm. It can perfectly meet the printing process requirements of 01005,0.3pitch and other fine spacing, it's high precision and high speed.



Specification



Model GLE
Max PCB Size 510x510mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
Max board weight 5kg
Transport height 900±40mm
Board edge gap 2.5mm
Board height 23mm
Transport direction L-R,R-L
Transport speed max 1500mm/s, program control
Transport method One stage
WIdth adjustment automatic
I/O interface SMEMA
PCB positioning (support method) Magnetic pin/support block/up-down table
PCB clamping system
Patented over the top clamping
Side clamping
Adsorption function
Print snap-off
0-20mm
Print mode
one/twice
Print Speed
10-200mm/sec
Print Mode
One /Twice
Squeegee Type
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure 0.5-10kg
Template fram size 470*370mm~737*737mm
Cleaning System
Droops of rain type cleaning system
Reinforced vacuum absorption
Dry, wet vacuum three modes
CCD FOV
10x8mm
Fiducial mark types Standard Fiducial mark shape
Pad
Hole
Camera system Look up/down optics structure
CCD digital camera
Geometry pattern match



Machine Performance



Model GLE
Repeat position accuracy ±12.5um@6,CPK≥2.0
Print accuracy ±20um@6,CPK≥2.0
Print cycle time <7.5 sec
Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision



Whole Machine Specification



Power supply
AC:220±10%,50/60HZ, 3.0KW
Air pressure
4~6 kgf/cm²
Air consumption
around 5L/min
Operating temperature
-20℃~+45℃
Operating humidity
30%~60%

 Machine Dimensions(without tower light)

1240(L) x 1410(W) x 1500 (H)mm
Machine Weight
Approx: around 1100Kg



Features



1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.



2, Cleaning system: GKG cleaning system equipped with three cleaning methods: dry cleaning, wet cleaning, vacuum. which can be combined
to use. It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency. The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste
in the mesh, which can achieve effective automatic cleaning function.CCD part and c leaning system is separated, when CCD working, CCD part
independently move to reduce the servo motor load and improve the machine speed and accuracy.

3, Image and optical system. Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged mark points), applicable for tin plating, coppering, gold plating,tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model,able to ensure high accuracy.

4, High adaptability steel mesh frame clamping system. Able to print all kinds of size screen frames, and quickly change modular
production line.

5, Using Windows XP/win7 operation interface, with good man-machine dialogue function, and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file. easy to switch Chinese/English interface, with operation log, fault record / fault self-diagnosis / fault analysis prompt / light alarm and other functions.

6, New Pattern guide rail ban detachable, programmable flexible side clamp, specific to FPC, PCB warpage, perform a unique clamping plate device. Through software programming can automatically stretch out and draw back unaffected PCB pickness.
