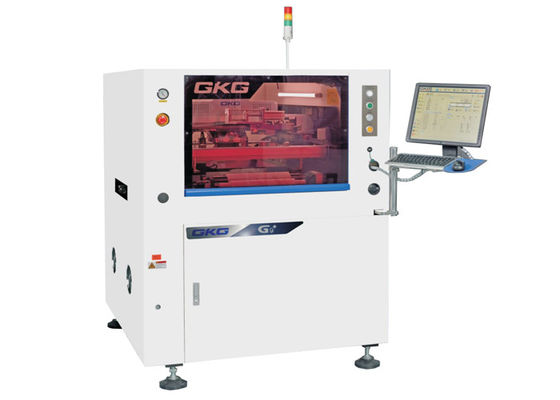

Industrial 4.0 MES System Solder Paste Machine Automatic Screen Printing Device

Industrial 4.0 MES System Solder Paste Machine Automatic Screen Printing Device
Industrial 4.0 MES System Solder Paste Machine Automatic Screen Printing Device

Large Image :  Industrial 4.0 MES System Solder Paste Machine Automatic Screen Printing Device

Product Details:
Place of Origin: China
Brand Name: GKG
Certification: CE,TUV,ROHS
Model Number: G9+
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Industrial 4.0 MES System Solder Paste Machine Automatic Screen Printing Device

Description
Product Name: High-end Solder Paste Printing Machine Other Name: Automatic Screen Printing Machine
PCB Size: 50x50~450x340mm Transport Height: 900±40mm
Air Pressure: 4-6kgf/cm³ PCB Thickness: 0.4-6mm
Max Board Weight: 5kg Machine Weight: 1000kg
High Light:

solder paste warm up machine

,

solder paste check right machine

Industrial 4.0 MES System 03015 Available G9+ Solder Paste Printing Machine



Introduction



The G9+ Automatic solder paste printing machine is a high-end machine for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25pitch, high precision and high speed.



Specification



Model G9+
Max PCB Size 450x340mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
Max board weight 5kg
Transport height 900±40mm
Board edge gap 2.5mm
Board height 15mm
Transport direction L-R,R-L
Transport speed max 1500mm/s, program control
Transport method One stage
WIdth adjustment automatic
I/O interface SMEMA
PCB positioning (support method) Magnetic pin/support block/manual up-down table
PCB clamping system
Patented over the top clamping
Side clamping
Adsorption function
Print snap-off
0-20mm
Print mode
one/twice
Print Speed
10-200mm/sec
Print Mode
One /Twice
Squeegee Type
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure 0.5-10kg
Template fram size 470*370mm~737*737mm(20-40thickness)
Cleaning System
Droops of rain type cleaning system
Reinforced vacuum absorption
Dry, wet vacuum three modes
Back and forth cleaning
CCD FOV
10x8mm
Fiducial mark types Standard Fiducial mark shape
Pad
Hole
Camera system Look up/down optics structure
CCD digital camera
Geometry pattern match



Machine Performance



Model G9+
Repeat position accuracy ±12.5um@6,CPK≥2.0
Print accuracy ±18um@6,CPK≥2.0
Print cycle time <7.5 sec
Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision



Whole Machine Specification



Power supply
AC:220±10%,50/60HZ, 3.0KW
Air pressure
4~6 kgf/cm²
Air consumption
around 5L/min
Operating temperature
-20℃~+45℃
Operating humidity
30%~60%

 Machine Dimensions(without tower light)

1172(L) x 1385(W) x 1530 (H)mm
Machine Weight
Approx: around 1000Kg



Features



1, CCD digital system, total new optical path system, uniform circular light and high brightness of coaxial light source. With both light source system, brightness can adjust to an infinite loop, allowing different mart point can be easily recognize (including uneven mark point) such as tin plating, copper plating, silver plating, hot air soldering, FPC and various types of different PCB color.



2, High precision PCB thickness adjustment, extremely reliable structure with stable XY movement. Manual adjustment makes it a breeze to accommodate different PCB thickness.

3,Guide rail positioning system, new Pattern guide rail ban detachable, programmable flexible side clamp, specific to FPC, PCB warpage, perform a unique clamping plate device. Through software programming can automatically stretch out and draw back unaffected PCB pickness.

4, New innovative squeegee structure design, adopt a comprehensive squeegee system which enhances stability and long lifespan.

5, High speed stencil cleaning, downward dispensing cleaning structure successfully prevents clogged opening(which is always the root cause for ineffective cleaning) from taking place. The length of solvent dispensedcan also be easilyamended with software control.

6, New multi-function interface, simplicity , clearly understand, friendly user. Actual temperature and humidity monitor function.
