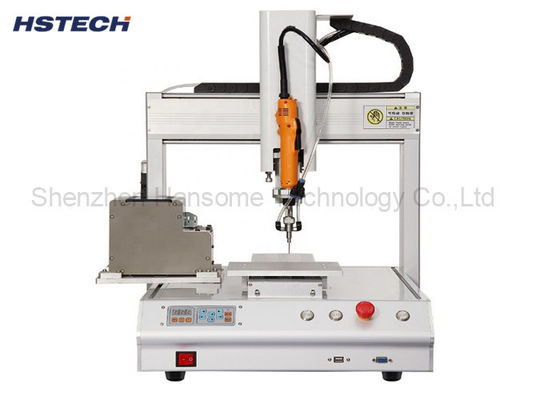

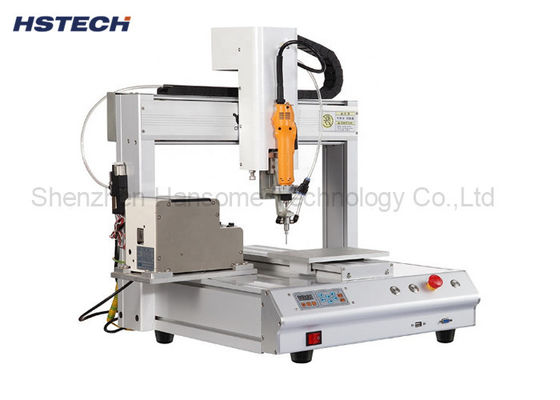

Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material

Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material
Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material

Large Image :  Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SL551S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Suction Type Screw Locking Machine Feeding: Suction Feeding
Axis: 3 Axis Screws: M1-M6
Moving Range: 500*500*100mm Material: Main Aluminum
Port: Shenzhen Oem: Yes
High Light:

desktop screw machine

,

screw locking tightening machine

Desktop Operation Suction Feeding 3Axis Screw Fastening / Locking Machine

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification



Model HS-SL551S HS-SL661S
Production name Automatic Screw Locking Machine
Moving range(X/Y/Z) 500*500*100mm 600*600*100mm
X/Y axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M5
Machine dimension 746*785*800mm 845*885*800mm
Machine weight 50kg 55kg



Main parts brand



1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell



Features


1, Suction type feeding, faster with more efficiency.
2, Desktop and visible operation, can connect the automatic production line.
3, Moving range has two options, 500*500*100mm or 600*600*100mm.
4, Support multiple screw bins in suction mode.
5, Support extended applications, such as locking screw dispensing, welding, testing, handling, assembly, etc.
6, Available for multiple axis and double platform options.
7, With regional array replication, platform replication, batch editing, single-step operation and other functions.
8, After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can     be performed offline. Action parameters can also be saved In the hand-held box, easy to call.
9,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.



Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material 0

Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material 1

Desktop Operation Screw Tightening Robot Suction Feeding 3 Axis Aluminum Material 2
