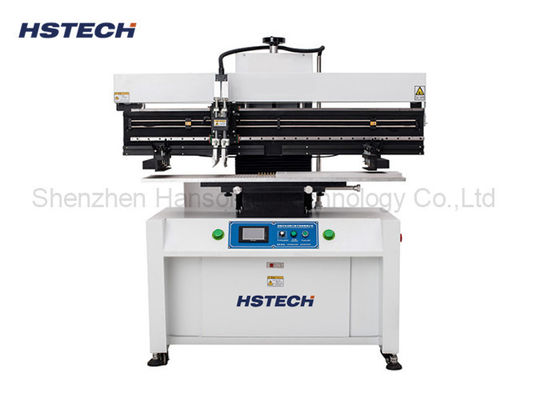

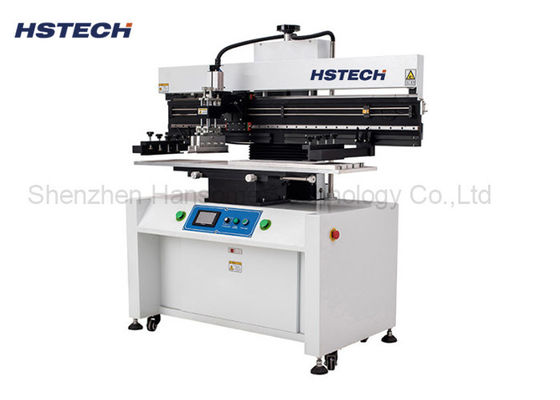

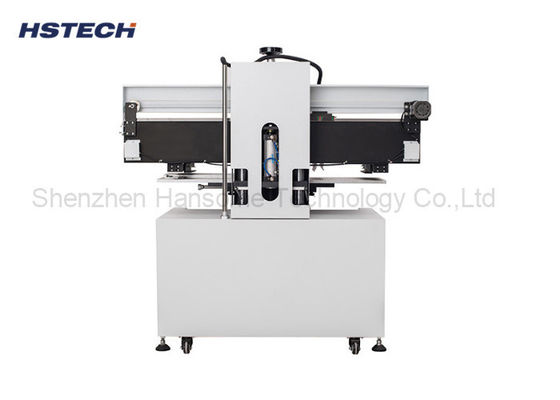

SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED

SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED
SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED

Large Image :  SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,TUV,ROHS
Model Number: HS-P223
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED

Description
Product Name: Semi-auto 1.2M Screen Printer Other Name: Semi-Auto Solder Paste Printing Machine
Max PCB Dimension: 1200x320mm Working Table Size: 1300x350mm
Max Frame Size: 470x370~2000x550mm I/Ov Interface: SMEMA
Machine Size: 1680x900x1680mm Weight: Approx 350kg
High Light:

solder paste check right machine

,

solder paste aging machine

SMT PCB Manufacturing Semi-auto Solder Paste Screen Printer Machine for LED



Introduction



This 1200mm SMT solder paste printing machine can be used to print the evenly mixed solder paste on the PCB substrate uniformly and precisely, it special designed for printing the 1.2meter LED tube light, it's semi-automatic machine, automatic printing after loading the PCBs,      it's used before the pick and place machine.



Specification



Model HS-P223
Product name Semi-automatic sreen printer
Max PCB size 1200x320mm
Printing table size 1300x350mm
Stencil frame size 470x370~2000x550mm
Printing accuracy ±0.02mm
PCB thickness 0.2~2.0mm
Squeegee speed 0-100mm/s
Repeat accuracy ±0.02mm
Power supply AC220V/110V, 50/60Hz
Machine power 100W
Air pressure 5-7kg/cm³
Machine size 1680*900*1680mm
Machine weight Approx350kg



Features



1, Special design for 1.2meter LED tube light PCB, T8 or T5.

2, The machine adopts microprocessor to control and touch screen to display the menu and operation interface.

3, Using high quality parts, like adopts Delta smooth drving frequency inventor to ensure the stable scraper speed.

4, The squeegee can adjusted up and down freely to adjust the corresponding height with the stencils, so that the solder paste can be printed on  the PCB board evenly and clearly.

5, The scraper printing table also can be adjusted, froth or back.

6, The squeegee stress on the PCB boards can be adjusted based on the length of different types of squeegees.

7, The menu on the touch screen can set the pause time of the stencil independently.

8, The PCB positioning methods has various reference postion.

9, The touch screen of the machine can display and record the printing time automatically.

10, The machine equipped with emergency stop button once meet accidents.

11, The machine also support glue printing, improve efficiency and save cost.









SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED 0

SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED 1

SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED 2

SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED 3







SMT PCB Manufacturing Solder Paste Stencil Machine AC220V/110V 50/60Hz For LED 4
