| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,TUV,ROHS |
| Model Number: | HS-P224 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Semi-auto Screen Printer | Max PCB Dimension: | 350x280mm |
|---|---|---|---|
| Working Table Size: | 500x320mm | Max Frame Size: | 470x370~750x550mm |
| Machine Size: | 900x900x1680mm | Weight: | Around 300kg |
| High Light: | solder paste check right machine,solder paste aging machine |
||

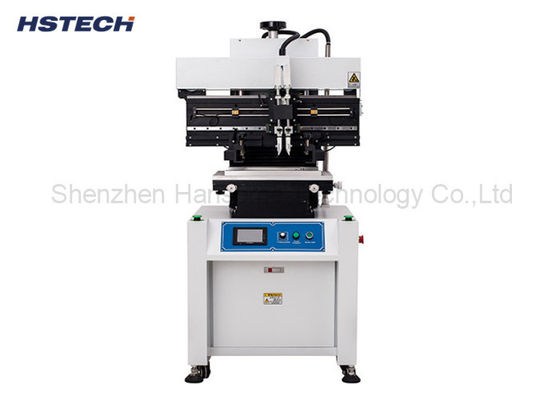

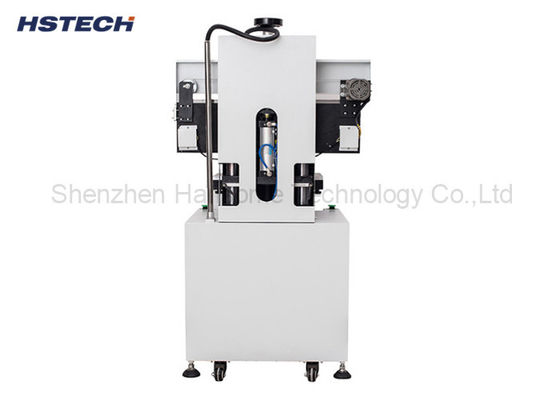

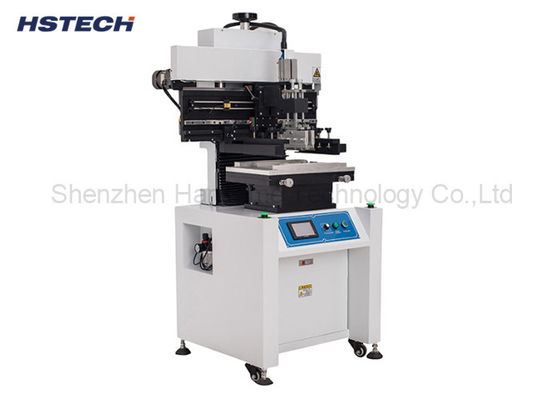

AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer
Introduction
This semi-automatic solder paste printing machine is used at the start of SMT production line, for printing solder paste with scraper.
Put the PCB which need to be printed is fixed on the printing positioning table, and then printing the solder paste or the red glue corresponding pad through the steel mesh by the left and right scrapers of the printing machine, after printed,the PCB will transport to the downstream pick and place machine via the conveyor.
Specification
| Model | HS-P224 |
| Product name | Semi-automatic stencil printer |
| Max PCB size | 350x280mm |
| Printing table size | 500x320mm |
| Stencil frame size | 470x370~750x550mm |
| Printing accuracy | ±0.02mm |
| PCB thickness | 0.2~2.0mm |
| Squeegee speed | 0-100mm/s |
| Repeat accuracy | ±0.02mm |
| Power supply | Single phase,AC220V/110V, 50/60Hz |
| Machine power | 100W |
| Air pressure | 5-7kg/cm³ |
| Machine size | 900*900*1680mm |
| Machine weight | Approx 300kg |
Features
1. The machine adopts PLC control system.
2. The machine built-in auto 4-digit counter.
3. Vertical constructure, the screen frame lift up and down verticaly by electricity, driving transversa stroke of printing head left and right action by the linear guide.
4. The screen frame can be adjusted up and down to meet the differnet height.
5. Four point stencil positioning, the printing accuracy reacy ±0.02mm,flexible stencil frame, can use different size stencil.
6, The squeegee can be adjustable, convenient for lead-free stainless steel scraper, 200-350options.
7, Flexible PIN thimble to positioning the PCB, can print the double side PCB.
8, LED touch screen can adjust the scraper speed, also use high quality HIWIN brand linear guide.
9, The scraper left and right adjustment use the Frequency converter control, can set the printing speed on the screen, make sure the printing speed is consistently, then the printing thickness more evenly.
