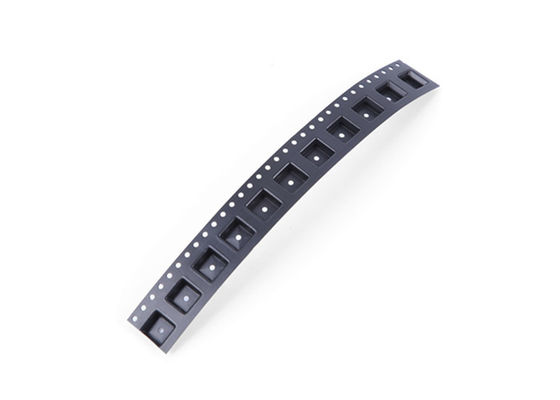

Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized

Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized
Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized

Large Image :  Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: EIA
Model Number: CT-03
Payment & Shipping Terms:
Minimum Order Quantity: 200 meters
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 reels per month
Detailed Product Description
Product Name: Embossed Carrier Tape Material: PC/PS/PET
Width: 8mm/12mm/16mm/44mm,etc Thickness: 0.14`2mm
Color: Black,transparent If ESD: Yes
Cover Tape: Included If Customer Request Reel: Plastic
High Light:

smd parts counter

,

electronic component reel counter

SMD LED Chip Black Color SMT Embossed Carrier Tapes Can be Customized



Introduction



The embossed carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand.



The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.



Carrier tape specification



Material PS,PC,PET
Type Conductive(antistatic)and non-conductive(non-antistatic)
Color Black, Transparent
Width 4-104mm
Thickness Except the standard size, we also customs





Carrier tape size and it matched cover tape



Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.



Carrier Tape(mm) 8 12 16 24 32 44 56 72 88 104
Cover Tape(mm) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5 97.5



Reels



We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements



Application



The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, Low Power LEDs, Mid/High Power Packages, Domed Packages, LED Modules, Lenses, LED Die connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.



We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.



Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized 0

Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized 1

Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized 2Black Color SMT Embossed Carrier Tapes , SMD LED Chip Plastic Reel Customized 3
