| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-881 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | SMD Components Counter | Other Name: | SMD Chip Counter |
|---|---|---|---|
| Power Supply: | AC110V,AC220V, 50/60Hz | Wattage: | 80W |
| Product Size: | 730*230*270mm | Weight: | 11kg |
| High Light: | smd chip counter,smd parts counter |
||

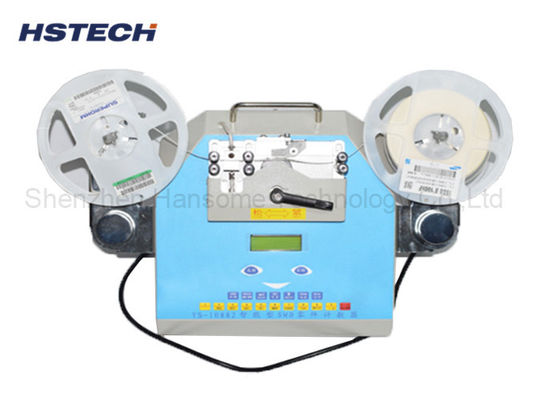

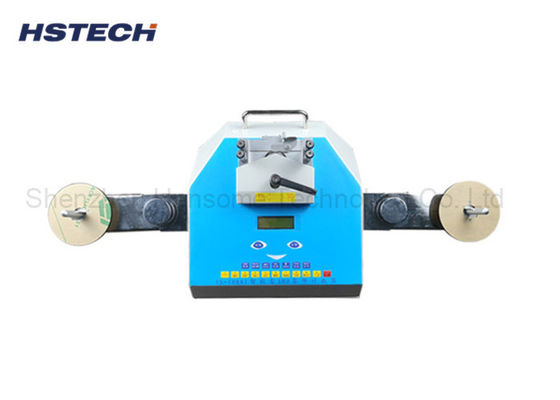

SMT Production Line Speed Adjustment 80W SMD Component Chip Counter Machine
Features
1. Intellegent counting, with pocket check function.
2. Eight grade speed adjustment, improve the efficiency,meet the different size tape.
3. Optional label printer and barcode scanner.
4. With voice prompt function.
5, With the end comopnents automatic stop counting function.
6. 57 stepper motor.
7, The wohle machine body stainless steel, durable design.
8, High resolution LED display, better to observe the counting process.
9, Fully control the components in the factory, avoid mistakes.
Specification
| Model | HS-881 |
| Power supply | AC110V,AC220V, 50/60Hz |
| Wattage | 80W |
| Counting time | 19 seconds to 2 min |
| Counting range | -16777216~16777216 pcs |
| Pitch size | 2,4,8,9,10,12,16,24,32mm |
| Tape width | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Application | Suitable for all components |
| Product size | 730*230*270mm |
| Gross weight | 11kg |
Comparison with traditional counter
| Comparison point | Traditional counter | Intelligent counter-HS-881 |
| Automatic stop after work | No, need to push stop manually | yes |
| Buffer stop | No | Yes,would slow down when is finishing |
| Voice instruction and number off | No | Yes, finish alert |
| Error | No. | No. |
| Power | 30W | 80W |
| Speed |
For 5000pcs small elements 30 seconds per plate |
For 5000pcs small elements 15 seconds per plate |
| Speed Adjustment | 3 levels | 8 levels |
| Noise | Low | low |
| Counting scope | -99999 to 99999 | -16 777 216 to 16 777 216 |
| Printer port | yes | yes |
| Scanner port | yes | yes |
| Omission detection, optional | yes | yes |
| Clock, optional | yes | yes |
