Product Name: | PCBA Router Machine | Other Name: | Automatic PCB Router |
---|---|---|---|
Platform: | Double | Routing Spindle: | 6000RPM |
Guide: | Hiwin | Driven Motor: | Servo Motor |
Voltage: | AC380V 50HZ | Warranty: | 1 Year |
Highlight: | pcb cnc router,pcba cutting machine |

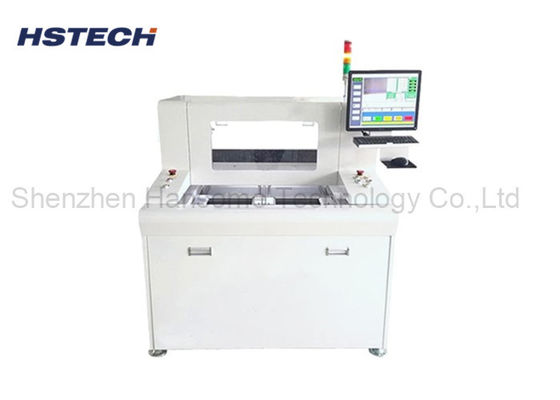

Fixture Customized Visual Check FPC Aluminum Board FR4 Curve PCB Router Machine
Machine introduction
This automatic PCB router machine using high speed-routing spindle, equipped with double platform, 4 axis servo motor driven,
the spindle moving according to the preset programming, automatic separating the stamp hole connectted board, curve board,and other inregular shape boards. The machine use window operation system, CCD detection the separating track,can check the separating process any time.
Main features
1, High speed routing spindle, 6000rpm.
2, Windows operation, manual location or file import.
3, CCD detection.
4, Internal dust-collector including.
5, Suitable for separating FPC board, aluminum board, FR4,etc.
6, Mainly used for separating stamp hole connected board, curve board, instead of traditional v-cut board.
Sepcfication
Model | RM-560 | ||
Structure | Single Spindle,dual work platforms | ||
Machine Size(mm) | 1000*1200*1550 | ||
Gross Weight | 700kg | ||
Dust collector size(mm) | 625*600*1600 | ||
Dust Collection method | Bottom collection | ||
Work platform size | 300*400mm | ||
Platform driving type | Double rotary platform,precision slicer with 3phase motor inverter | ||
Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter | ||
Routing Spindle | 6000rpm | ||
Cutting speed | 1-100mm/s | ||
Cutting accuracy | ±0.05mm | ||
Repeat accuracy | ±0.02mm | ||
Axis moving speed | 800mm/s | ||
Z axis system | Screw driven,dual guide | ||
Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
Tool life control | Software program control | ||
Active protective function | safty light curtain | ||
Security door | Manual door | ||
Error alarm | Yes | ||
Program method | Self programing,camera controlled by keyboard and mouser |
Machine details
High Speed routing spindle and internal dust-collector
Windows7/10 English version operating system,simple for debugging and operation.
