| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-DH6331 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, foam inside |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

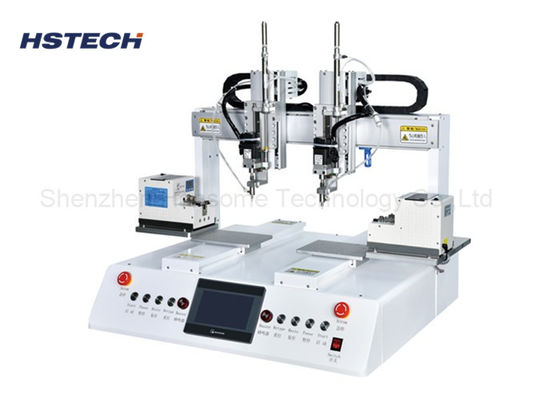

| Product Name: | Screw Locking Machine | Feeding: | Suction Feeding |
|---|---|---|---|
| Axis: | 6 Axis | Screws Compatible: | M1-M6, Or Customized |
| Moving Range: | 500*300*300*100mm | Material: | Main Aluminum |
| Port: | Shenzhen | Oem: | Yes |
| Highlight: | Dual Head Suction Screw Feeder,6 Axis Screw Feeder,M6 Suction Feeding Screw Locking Machine |
||
| Model | HS-DH6331 | |
| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 600*300*300*100*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension8 | 880*585*800mm | |
| Machine weight | 120kg | |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
