High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening

High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening

  • High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening
  • High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening
High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-TC5331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Tabletop CCD Screw Fastening Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.6-4.0mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Power Supply: AC220V
Air Pressure: 4-6bar Speed: 200-300pcs/min
Type: Automatic Weight: 220/240KG



High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening



Machine Introduction

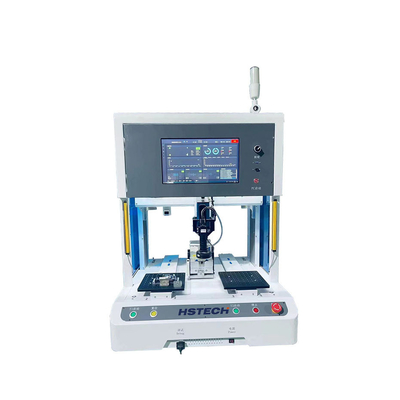

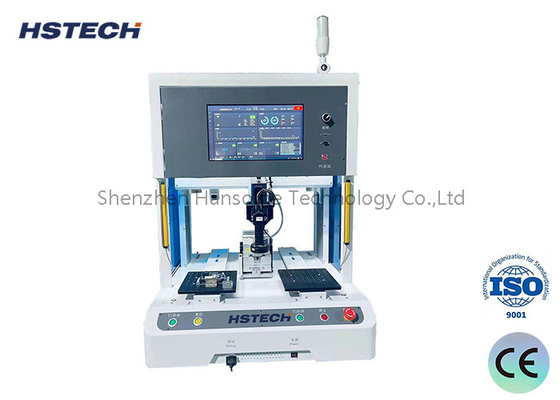

This automatic screw locking(fastening) machine is a 5 axis automatic screw locking machine, with blowing feeding or suction type screw feeder, it use single lock electric batch, with dual platform, operator manual load and unload the product from working station.



Equipment configuration table
Config Qty Config Qty
XYZ three axes 1/set Bar code scanning gun 1/set
CCD 1/set IPC+Motion Control Card 1/set
Screwdriver 1/set Screw feeder 1/set
Main parts list
Name Brand Remarks
Stepper motor JMC Same performance brands can be replaced
Linear slide rail HIWIN Same performance brands can be replaced
Motion Control Card SOLID/Mingseal Same performance brands can be replaced
Screwdriver BLADY/SENSEWEE Same performance brands can be replaced
IPC Advantech/EVOC Minimum configuration:i3-8G-1TB
Vision camera HIKVISION Same performance brands can be replaced
Bar code scanning gun (fixed) Honeywell(compatible with 1D and 2D code scanning) Wired



Technical Details

Model HS-TC5331
X/Y1/Y2//Z Working Range 500*300*300*100mm
Screw feeder Suction feeding,or blowing based on screws
X/Y1/Y2 axis moving speed Closed loop motor :1-300mm/s
Z axis moving speed Closed loop motor: 1-80mm/s
X/Y1/Y2 axis max load Closed loop motor: 5 KG
Z axis max load Closed loop motor: 5 KG
Repeat accuracy ±0.025mm
Operation Method Auto
Programming PC
Control PLC
Weight 300kg
Dimension(L*W*H) 850*800*1100m
Power Supply Unidirectional 220±10%AC; Frequency 50Hz±2%



Features

1. The equipment and its parts are new and unused.

2. The overall noise of the equipment is <70dB (1m from the equipment).

3. Machinery and equipment conform to the relevant standards of China or international standards acceptable to the user.

4. Electrical equipment should comply with IEC standards or international standards acceptable to the user.

5. Supporting equipment and test instruments and meters are measured using IsO international standard units of measurement.

6. Air pressure: 0.4MPa~0.8MPa, air quality is DINISO 8573-1 Grade 3 standard.

7. Temperature: 18℃~30℃, humidity: 30%~70%.

8. Working system: 24 hours operation/day*7 days.



Application

Suitable for mobile phones, hard drives, keyboards, electronic toys, computers, DVD, dots, plastics, electrical appliances, communication equipment, electrical appliances, toys, electronic processing, motors, motors, parts, tablets, notebook computers, digital cameras, remote controls, walkie-talkie, etc.



About Packaging

High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening 0

High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening 1

High Precision 360° Constant Control System High Speed XYZ Tabletop CCD Screw Fastening 2
